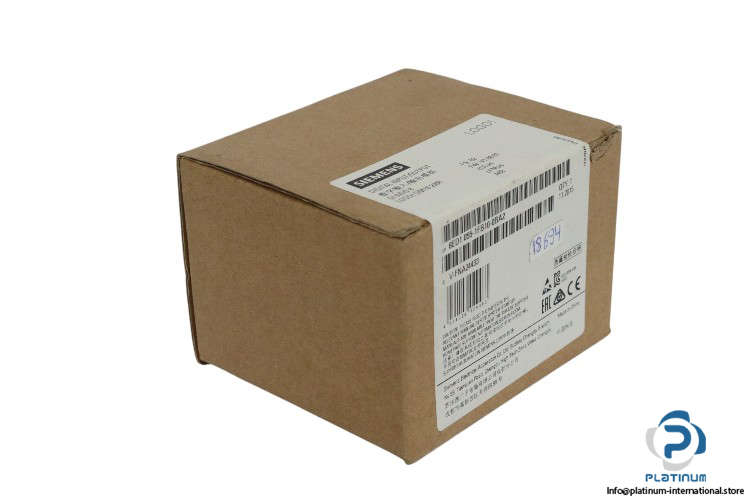

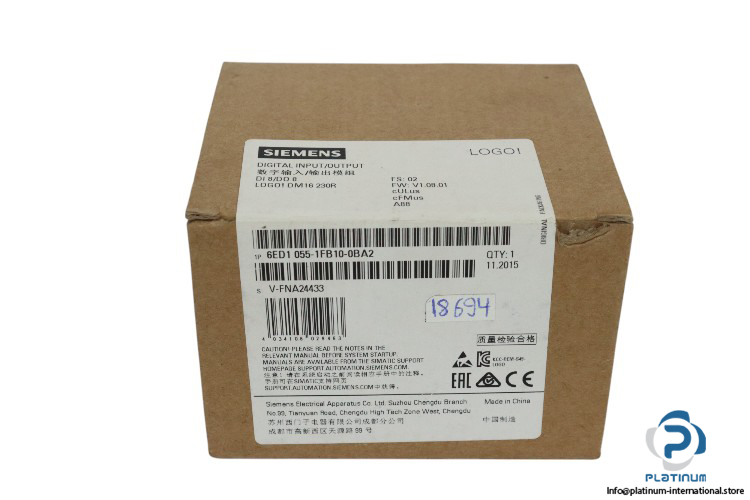

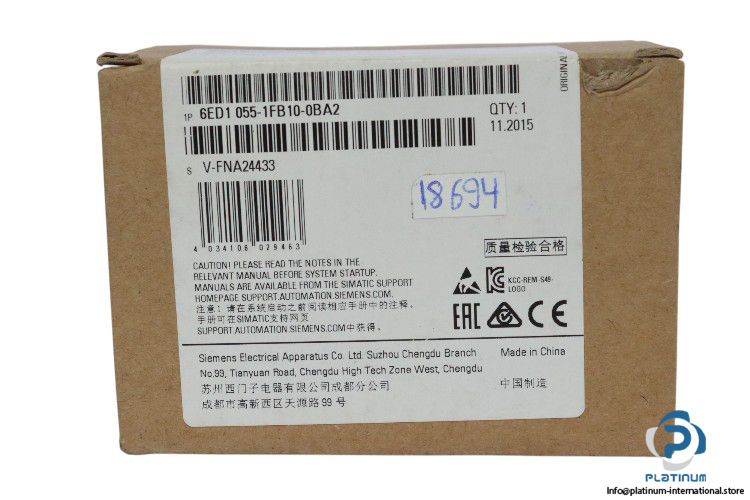

Siemens 6ED1 055-1FB10-0BA2 Digital Input/Output Module
Módulo de Expansão / Módulo de Entrada/Saída Digital O Módulo de Expansão Siemens LOGO! 6ED10551FB100BA2 possui 8 entradas digitais, 8 saídas digitais por relé e suporta tensão de alimentação de 115/230 V AC/DC para controle eficiente em sistemas de automação industrial.
Siemens LOGO! 6ED10551FB100BA2 Expansion Module / Digital Input/Output Module
The Siemens LOGO! 6ED10551FB100BA2 Expansion Module is a versatile and reliable digital I/O module for automation systems. It is designed to expand the functionality of Siemens LOGO! PLC systems with 8 digital inputs and 8 relay digital outputs, providing flexible and efficient control for industrial applications.
Manufacturer: Siemens
Type: Expansion Module / Digital Input/Output Module
Model Number (MNR): 6ED10551FB100BA2
Series: LOGO!
Switching Capacity of Contacts:
With inductive load, max. 3 A
With resistive load, max. 5 A
The Siemens LOGO! 6ED10551FB100BA2 provides enhanced control in industrial and automation applications, offering high flexibility and robust performance for a wide variety of digital control tasks.
| Mounting | On 35 mm DIN rail, 4 spacing units wide |
| Supply Voltage | 115/230 V AC/DC |
| Line Frequency | 47/63 Hz |
| No. of Digital Inputs (DI) | 8 |
| No. of Digital Outputs (DO) | 8 Relay |
| Degree of Protection | IP20 |
| Ambient Temperature during Operation | 0 to 55°C |
| Dimensions | 71.5 x 90 x 58 mm |
