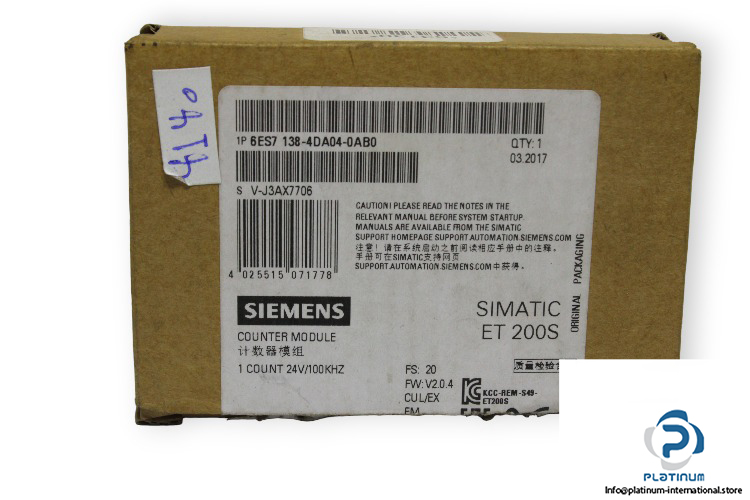

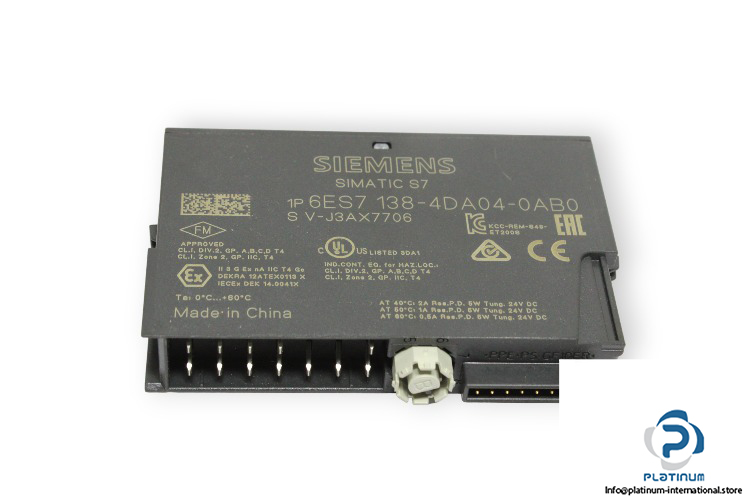

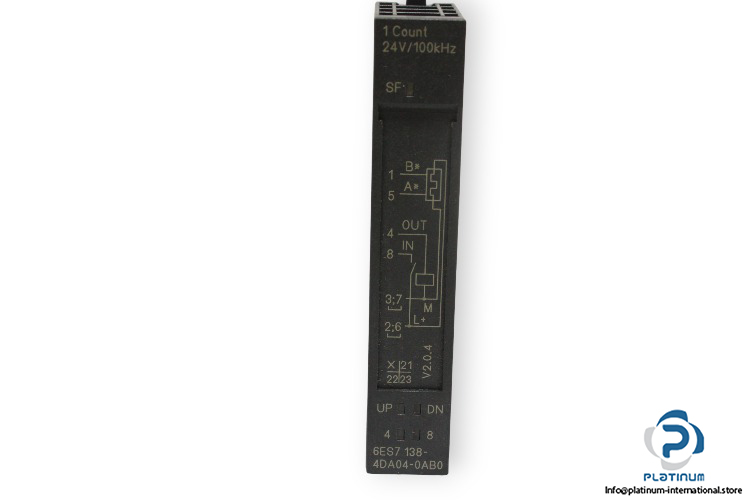

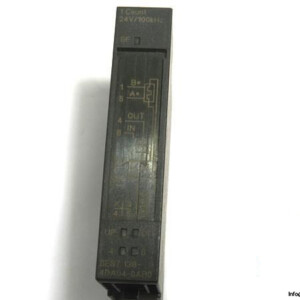

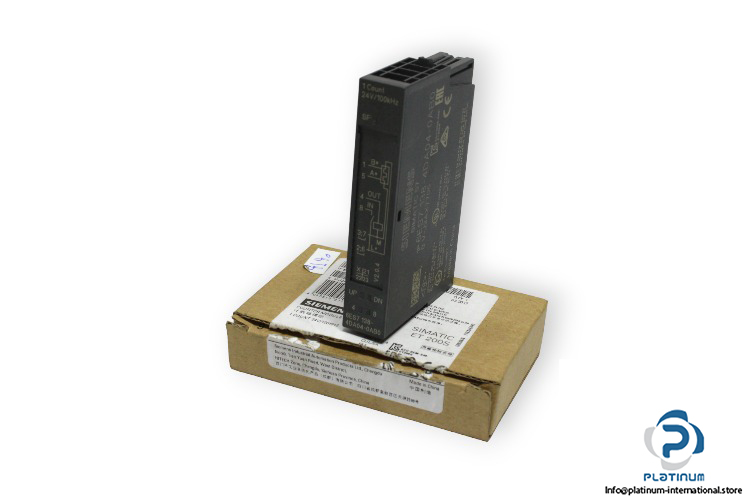

Siemens 6ES7 138-4DA04-0AB0 Electronics Module
Módulo contador / módulo eletrônico O módulo eletrônico Siemens ET200S proporciona controle preciso de porta e sincronização para sistemas SIMATIC S7. Opera em 24 V CC com resposta rápida de entrada/saída e suporte a encoder.
SIEMENS ET200S COUNTER MODULE / ELECTRONICS MODULE
The Siemens ET200S is a high-precision counter and electronics module designed for integration into the SIMATIC S7 family. Built for advanced signal processing and synchronization in automation systems, this module ensures accurate control in complex industrial applications.
Manufacturer: Siemens
Type: Counter Module / Electronics Module
Model: ET200S
MNR: 6ES71384DA040AB0
Ref No.: V-J3AX7706 / 20 / v2.0.4
Family: SIMATIC S7
| Function | Gate Control, Synchronization, Latch Function |
| No. of Digital Outputs | 1 |
| Rated Input Voltage | 24 V DC |
| Rated Input Current | 2 mA for signal œ0, 9 mA for signal œ1 |
| Load Voltage | 24 V DC (Reverse Polarity Protection) |
| Current Consumption | 42 mA without load voltage, 10 mA from backplane bus 3.3 V DC |
| Power Loss | Typical 1 W |
| Input Delay | 2.5 μs |
| Rated Output Voltage | 24 V DC |
| Output Delay | œ0 to œ1 100 μs |
| Switching Frequency | 100 Hz (Resistive Load), 2 Hz (Inductive Load), 10 Hz (Lamp Load) |
| Encoder Supply | 24 V, 500 mA (max. 1 encoder) |
