Siemens AQX2000 Extension Module
MÓDULO DE EXTENSÃO Módulo de extensão Siemens AQX2000 com contato reversível sem potencial, projetado para monitores de condensação QXA2100/QXA2101. Opera com 230 V AC com proteção IP30 e carcaça robusta de ABS+PC.

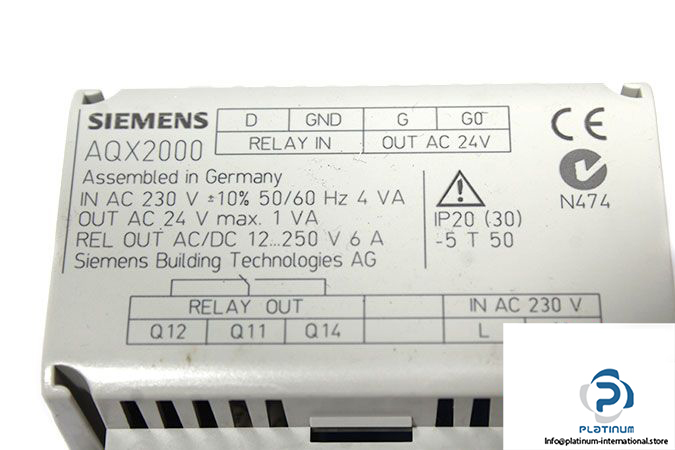

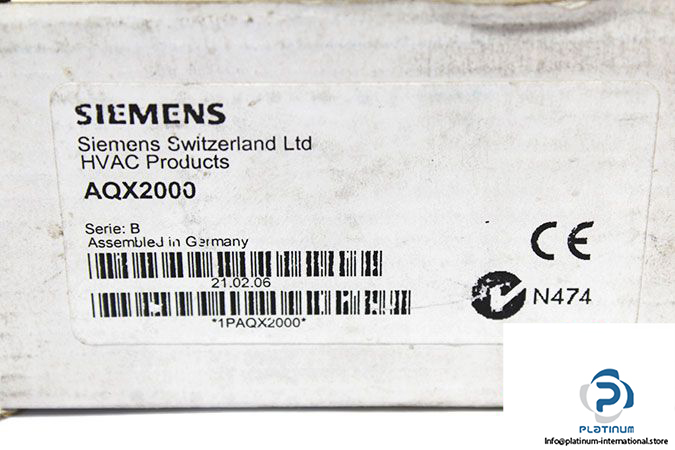

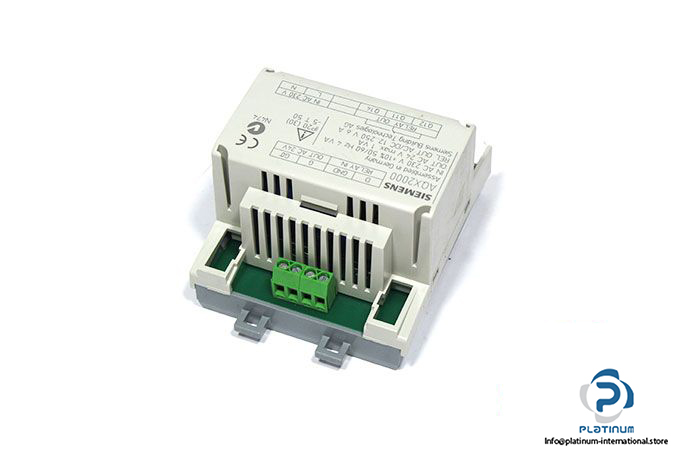

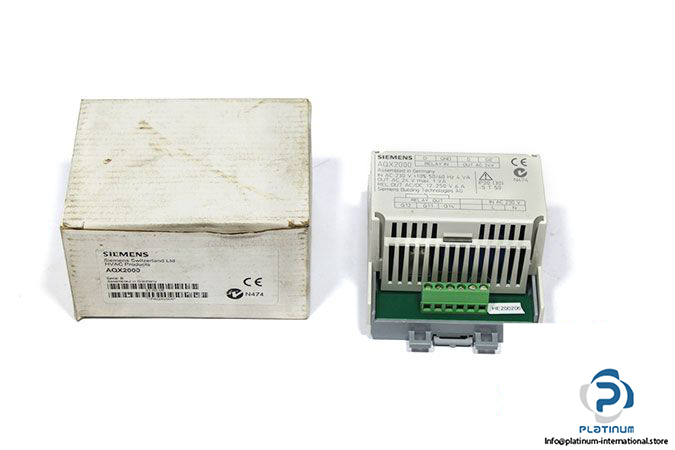

SIEMENS AQX2000 EXTENSION MODULE
The Siemens AQX2000 is a high-quality extension module with a potential-free changeover contact, designed for use with QXA2100 and QXA2101 condensation monitors. Built for dependable operation in monitoring systems, it offers reliable switching and integration capabilities with industrial-grade performance.
Manufacturer: Siemens
Type: Extension Module with potential-free changeover contact
Model: AQX2000
Uses: For QXA2100, QXA2101 condensation monitors
| Operating Voltage Input | 230 V AC |
| Frequency | 50/60 Hz |
| Power Consumption | Max. 4 VA |
| Contact Voltage | DC 37 V (SELV/PELV) |
| Current | 13 mA |
| Secondary Voltage Output | 24 AC (SELV/PELV) |
| Digital Input, Contact Query | 37 V DC |
| No. of Relay Outputs | 1 |
| Primary Voltage | 23 V AC |
| Frequency | 50/60 Hz |
| Protection | IP30 EN 60529 |
| Housing Material | ABS+PC |
| Dimensions (W x H x D) | 80 x 110 x 62 mm |
