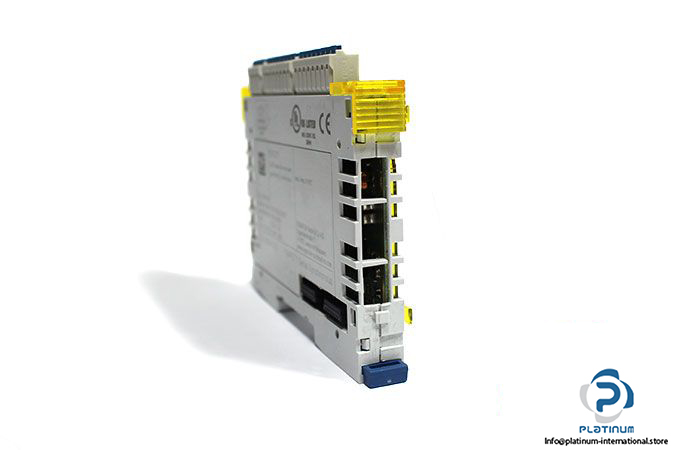

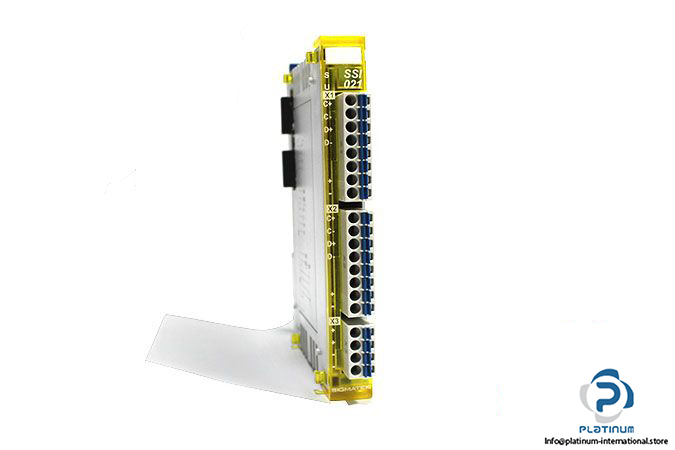

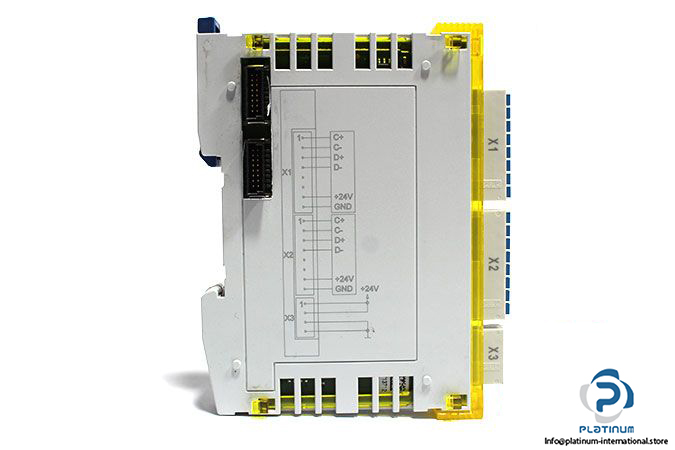

Sigmatek SSI021 Safety SSI Absolute Value Encoder
Codificador de valor absoluto de precisão de 2 canais com interface RS422, velocidades configuráveis até 1 MHz, resolução de 32 bits e proteção IP20, ideal para aplicações de segurança industrial.
SIGMATEK SSI 021 SAFETY SSI ABSOLUTE VALUE ENCODER
The Sigmatek SSI 021 is a high-performance Safety SSI Absolute Value Encoder designed to deliver reliable and precise position feedback in industrial safety automation systems. Engineered for demanding environments, it features advanced resolution, flexible coding formats, and robust electrical data transfer options.
Manufacturer: Sigmatek
Type: Safety SSI Absolute Value Encoder
Model: SSI 021

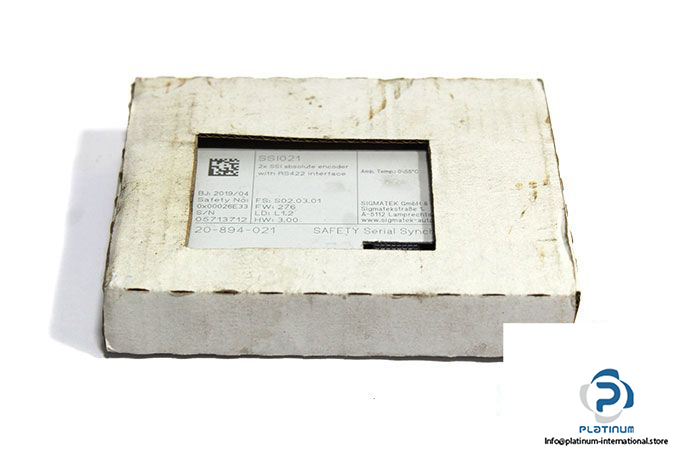

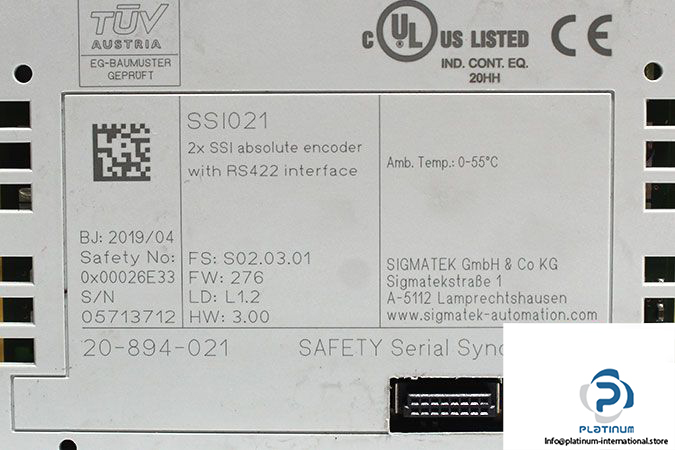

Article No.: 20-894-021
Safety No.: 0x00026E33
Serial No.: 05713712
Reference No.: S02.03.01 / 276 / L1.2 / 3.00
Data Electrical
Physical & Environmental Data
| Number of Encoders | 2 |
| Encoder Type | Absolute Encoder with RS422 Interface |
| Data Transfer Speed | 125 kHz to 1 MHz (Configurable) |
| Maximum Resolution | 32 bits |
| Coding | Binary / Gray |
| Encoder Power Supply | +24 V, Max. 300 mA |
| Voltage Supply from Safety Bus | +12 V |
| Current Consumption (+12 V) | 70 / 100 mA |
| Voltage Supply from S-DIAS Bus | +24 V |
| Current Consumption (+24 V) | 30 / 50 mA |
| Dimensions | 12.5 x 104.2 x 72 mm |
| Protection Type | IP20 |
| Operating Temperature | 0 / 55 °C |
| Humidity | 0 “ 95 % |
