Siko IG07-AB0-XXX4-E1-M2-PP-W01 Incremental Encoder
199,99$
Encoder incremental de alta precisão com eixo oco de 20 mm, resolução de 1024 pulsos/rota e proteção IP65. Projetado para automação industrial e controle de movimento.

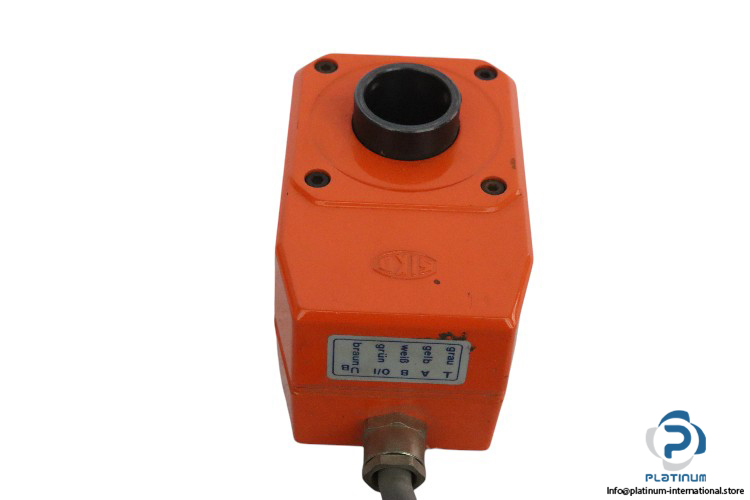

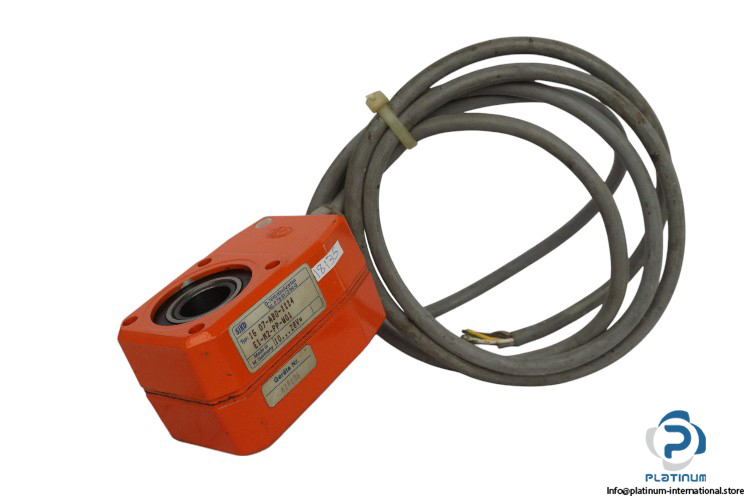

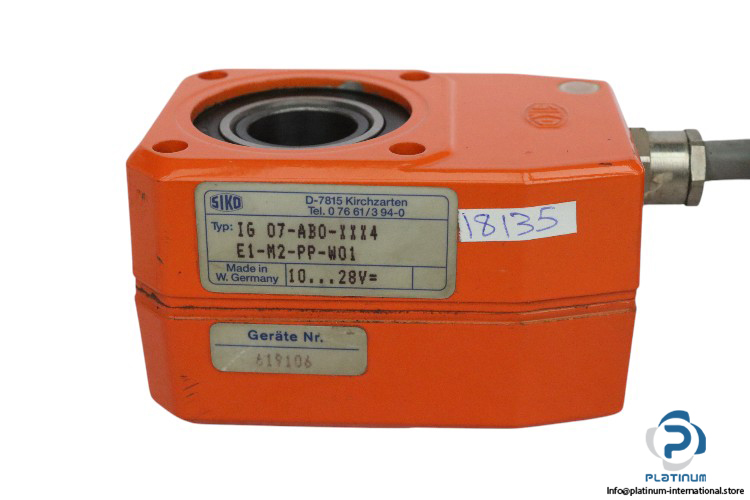

SIKO IG 07-AB0-XXX4-E1-M2-PP-W01 Incremental Encoder
The SIKO IG 07-AB0-XXX4-E1-M2-PP-W01 is a high-performance incremental encoder designed for precision measurement and motion control applications. Featuring a durable zinc die-cast housing and black-finished steel hollow shaft, this encoder ensures reliable operation in demanding industrial environments.
Key Details:
Manufacturer: SIKO
Type: Incremental Encoder
Model: IG 07-AB0-XXX4-E1-M2-PP-W01
ID Number: 619106
The SIKO IG 07-AB0-XXX4-E1-M2-PP-W01 is ideal for industrial automation, robotics, and precise motion control applications. Its rugged design ensures long-term reliability in harsh operating conditions.
| Shaft Type | Hollow Shaft |
| Operating Voltage | 10 to 28 V DC |
| Current Consumption | 40 mA typical |
| Max. Pulse Frequency | 80 kHz |
| Shaft Diameter | 20 mm |
| Connection Type | Open Cable Ends |
| Resolutions | Max. 1024 Pulses/Revolution |
| Output Circuit Type | Push-Pull |
| Protection Degree | IP64, IP65 |
| Phasing | 90° |
| Housing Material | Zinc, Die-Cast |
| Shaft Material | Black-Finished Steel |
| Ambient Temperature | 0 to 60 °C |
