SKF NA 4914 Needle Roller Bearing
Usado
Em estoque2 unidadesPronto para envio
Rolamento de Agulhas O rolamento de agulhas SKF NA 4914 oferece alta capacidade de carga, durabilidade e um design compacto com gaiola de chapa metálica, tornando-o ideal para aplicações industriais de alta velocidade.
100mm491470mmbearingboreCageCompactDesigndiameterhigh-loadHigh-SpeedIndustrialMetalNANeedleOuterRollersheetSKF
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

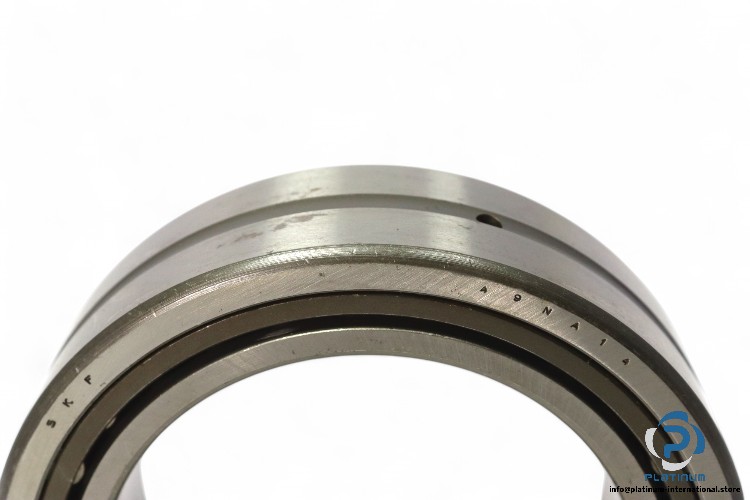

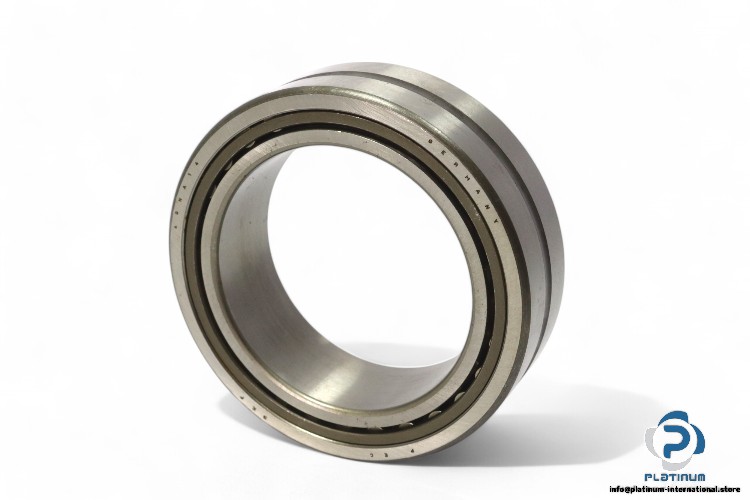

SKF NA 4914 Needle Roller Bearing
The SKF NA 4914 Needle Roller Bearing is a high-performance component designed for applications requiring compact design and high load-carrying capacity. Featuring a sheet metal cage, this bearing ensures durability and efficiency in high-speed operations.
Manufacturer: SKF
Type: Needle Roller Bearing
Model: NA 4914
Dimensions:
Basic Load Ratings:
Speeds:
| Bore Diameter (d) | 70 mm |
| Outer Diameter (D) | 100 mm |
| Width (B) | 30 mm |
| Dynamic (Cr) | 96.5 kN |
| Static (C0r) | 163 kN |
| Reference Speed | 5000 rpm |
| Limiting Speed | 5600 rpm |
| Fatigue Load Limit | 20.8 kN |
| Cage | Sheet Metal |
