Bearings Housing Units Insert Bearing

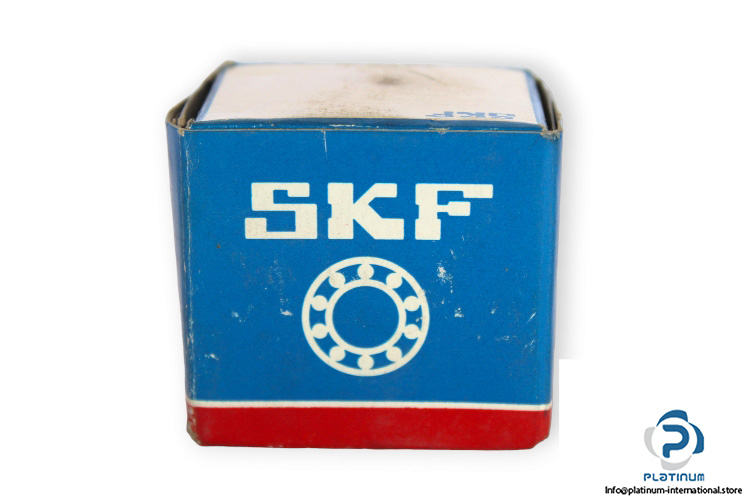

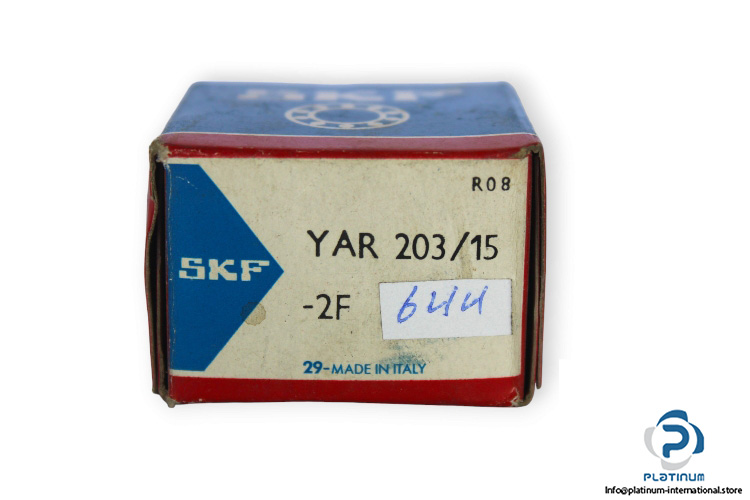

SKF YAR 203/15-2F Insert Ball Bearing

Name: SKF YAR 203/15-2F INSERT BALL BEARING
SKU: 1029331
Availability: LimitedAvailability

skf-YAR-203_15-2F-insert-ball-bearing-(new)-(carton)

skf-YAR-203_15-2F-insert-ball-bearing-(new)-(carton)-1

skf-YAR-204-2F-insert-ball-bearing-(new)-(carton)-2

Novo

Em estoque4 unidadesPronto para envio

Fabricante: SKF Tipo: Rolamento de inserção com parafuso de fixação e anel interno estendido Modelo: YAR 203/15-2F

Fabricante

SKF?

SKU

1029331

Categoria

Insert Bearing

Condição

Novo

15 Ball bearing bearings insert mm SKF

Grande Estoque

Envio Global

Suporte Especializado

Qualidade Garantida

Manufacturer: SKF
Type: Insert bearing with set screw locking and extended inner ring
Model: YAR 203/15-2F

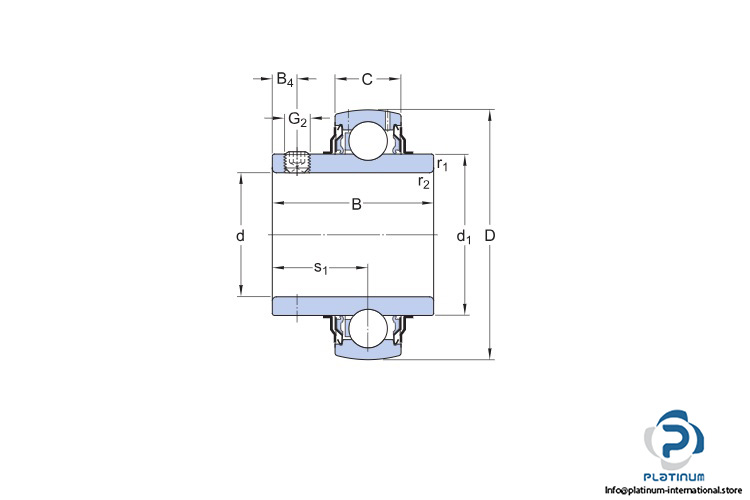

Bore Diameter d: 15 mm
Outer diameter D: 40 mm
Width of inner ring B: 27.4 mm
Width of outer ring C: 12 mm
Basic load ratings:
Dynamic C: 9560 N
Static C₀: 4750 N
Fatigue load rating: 200 N
Limiting speed: 9500 rpm
Inner ring extension: on both sides
Outer ring type: Spherical
Retaining feature, inner ring: Set screws
Sealing: Seal and flinger on both sides
Bore type: Cylindrical
