Sommer GH 100 Long Stroke Parallel Gripper
Usado
Em estoque2 unidadesPronto para envio
Long Stroke Parallel Gripper
SOMMER Long Stroke Parallel Gripper GH 100 with 480 N closing force, 800 N opening force, and a 32 mm piston diameter. Operates within 4 / 7 bar pressure range, with G 1/8 pneumatic connection and aluminium construction.
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

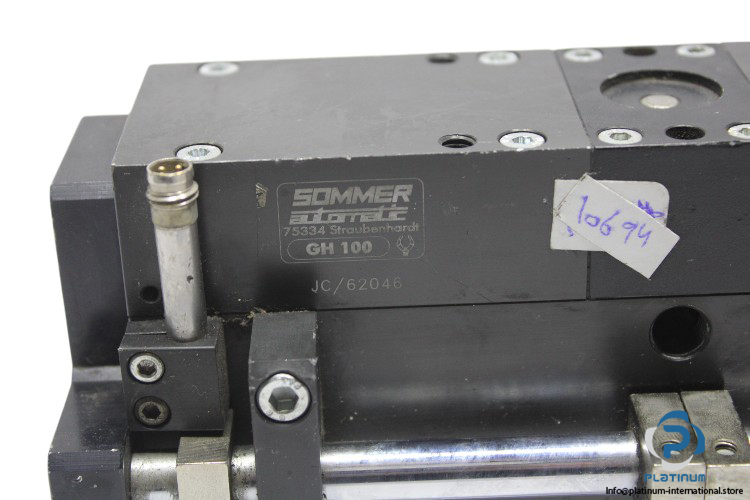

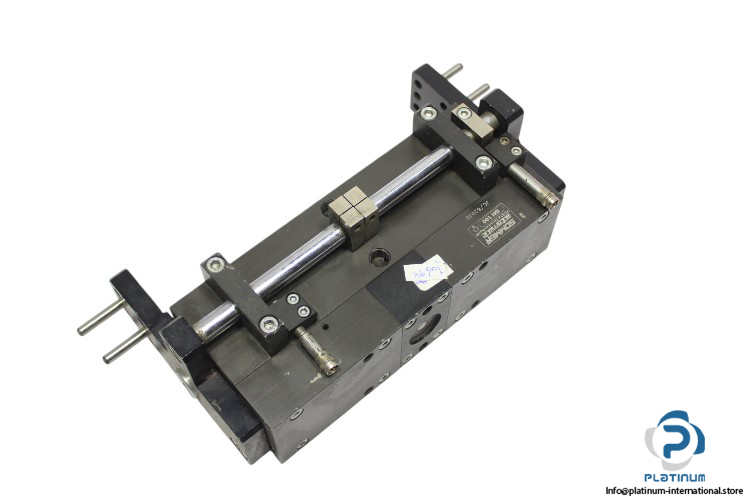

SOMMER Long Stroke Parallel Gripper GH 100
The SOMMER Long Stroke Parallel Gripper GH100 is designed for precise gripping tasks in industrial automation. This gripper operates with compressed air and features a piston diameter of 32 mm and a stroke of 50 mm, providing reliable gripping force. With a maximum operating pressure of 4 / 7 bar, the gripper can handle clamping forces of 480 N for closing and 800 N for opening. Constructed from durable aluminium, this gripper offers strength and longevity. It is equipped with a G 1/8 pneumatic connection and operates within a temperature range of 5 to 80°C, making it suitable for various industrial environments.
Manufacturer: SOMMER
Type: Long Stroke Parallel Gripper
Model: GH 100
Part No.: JC/62046
Technical Specifications
- Fluid: Air
- Piston Diameter: 32 mm
- Stroke: 50 mm
- Operating Pressure Max.: 4 / 7 bar
- Gripper Force Close/Open: 480 / 800 N
- Material: Aluminium
- Pneumatic Connection: G 1/8
- Temperature: 5 / 80 °C
