Stegmann DG 60 L-WKR Incremental Encoder
115,00$
Encoder incremental DG-60-L-WKR da STEGMANN / SICK fornece 7200 pulsos por revolução e proteção IP67 com eixo sólido e saída RS 422, ideal para feedback de alta precisão em ambientes industriais.

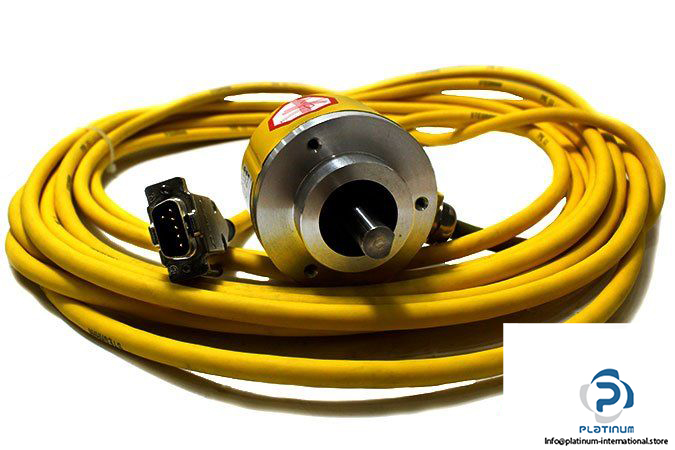

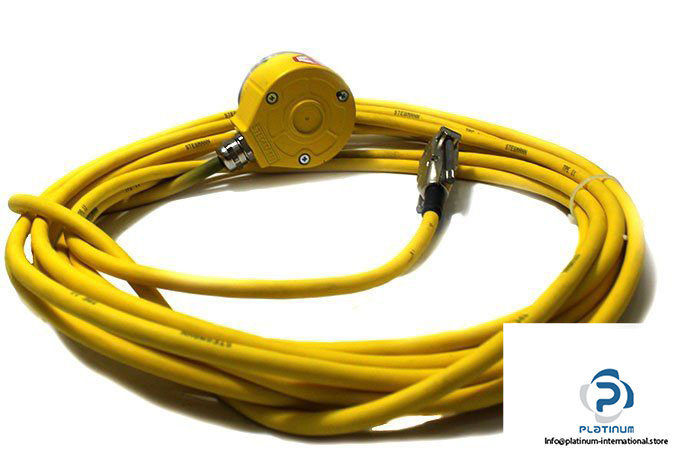

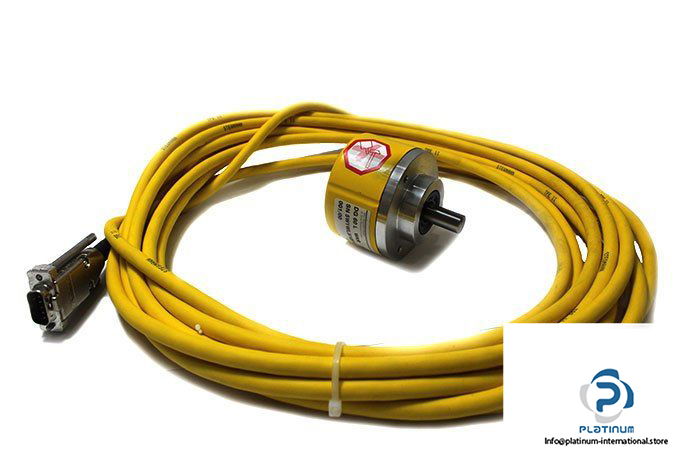

STEGMANN / SICK DG-60-L-WKR INCREMENTAL ENCODER
The DG-60-L-WKR is a high-precision incremental encoder from STEGMANN / SICK, engineered for industrial motion control applications that demand accurate position feedback. Built with a solid shaft and face mounting flange, it ensures stable and consistent performance even in harsh conditions.
Manufacturer: STEGMANN / SICK
Type: Incremental Encoder

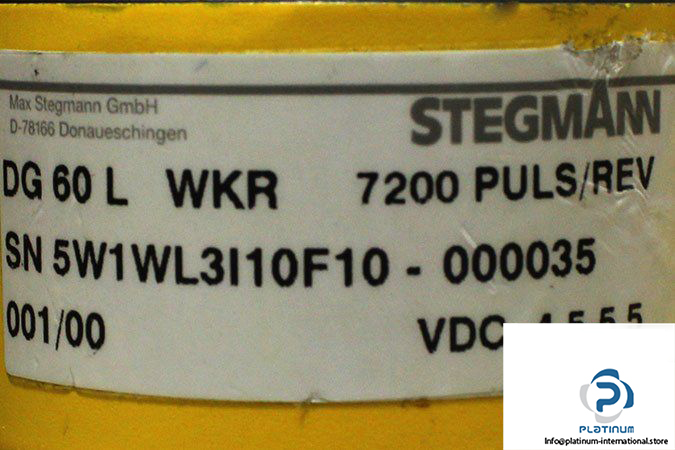

Model: DG-60-L-WKR
Serial No.: 5W1WL3I10F10-000035
Part No.: 001/00
| Flange Type | Face Mounting Flange |
| Shaft Type | Solid Shaft |
| Shaft Diameter | 10 mm |
| Revolution | 7200 Pulses per Revolution |
| Voltage Supply | 4 / 6 VDC |
| Switching Frequency | 0 / 300 kHz |
| Output Circuits | Line Driver (RS 422) |
| Consumption | 120 mA |
| Connection Type | Radial Cable (1.5 m) |
| Protection Class | IP67 |
