Steute ZS711O/1SWVD-A Emergency Pull-Wire Switch
Usado
Em estoque1 unidadePronto para envio
Emergency Pull-Wire Switch
STEUTE ZS 71 1O/1S WVD-A with 400 V AC / 6 A rating, IP65 protection, aluminium die-cast enclosure, and 3 contacts (2 NC / 1 NO). Compact 42 x 52 x 171 mm design with up to 35 m wire length.
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

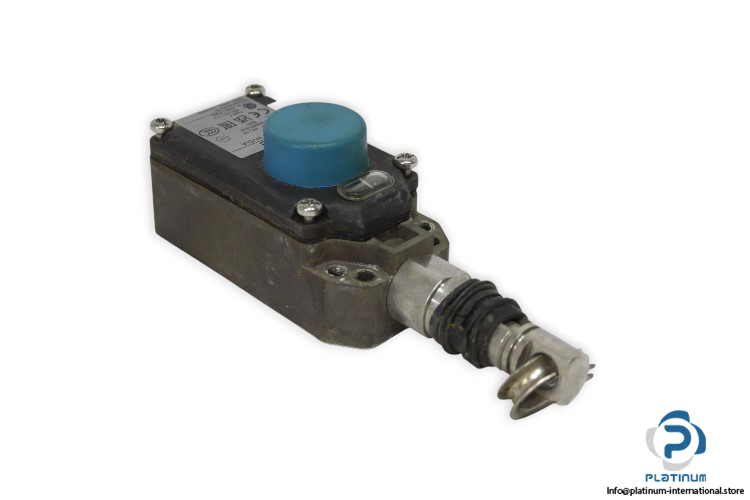

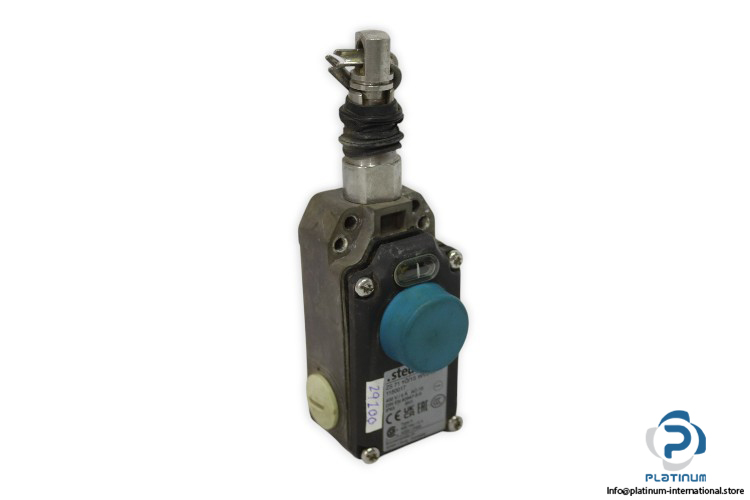

STEUTE ZS 71 1O/1S WVD-A Emergency Pull-Wire Switch
The STEUTE ZS 71 1O/1S WVD-A is a compact and durable emergency pull-wire switch designed for reliable safety operation. Built with a robust aluminium die-cast enclosure and engineered for harsh environments, it ensures dependable emergency shutdown functionality in industrial systems.
Manufacturer: STEUTE
Type: Emergency Pull-Wire Switch

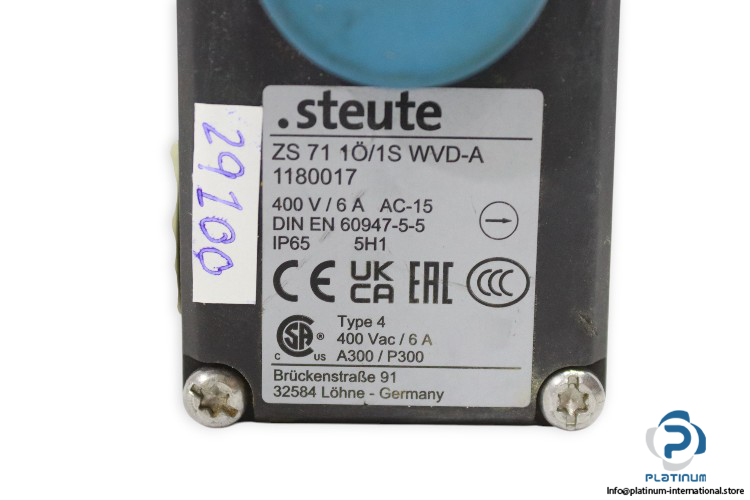

Model: ZS 71 1O/1S WVD-A
MRN: 1180017
| Electrical Ratings | 400 V AC / 6 A (AC-15 duty) |
| Standards Compliance | DIN EN 60947-5-5 |
| Ingress Protection | IP65 |
| Enclosure | Aluminium die-cast, powdercoated |
| Cover | Glass-fibre reinforced |
| Contacts | 3 (2 NC / 1 NO, type Zb) |
| Switching System | Snap action, positive break NC contacts A |
| Wire Length | Up to 35 m |
| Connection | Screw connection terminals |
| Cable Cross-Section | Max. 2.5 mm² (incl. ferrules) |
| Cable Entry | 2 x M20 x 1.5 |
| Max. Fuse Rating | 2 A gG/gN fuse |
| Ambient Temperature | “25 °C / +70 °C |
| Dimensions | 42 x 52 x 171 mm |
