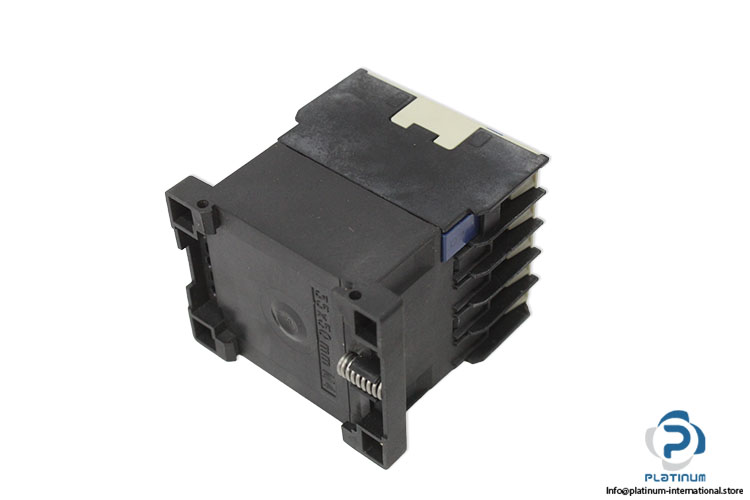

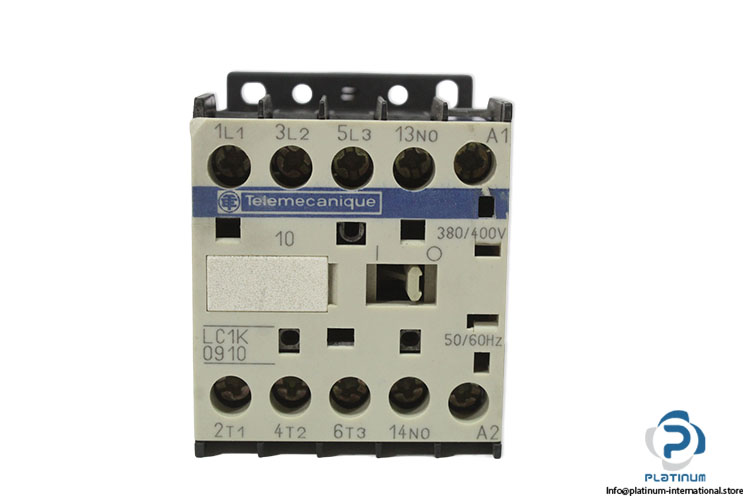

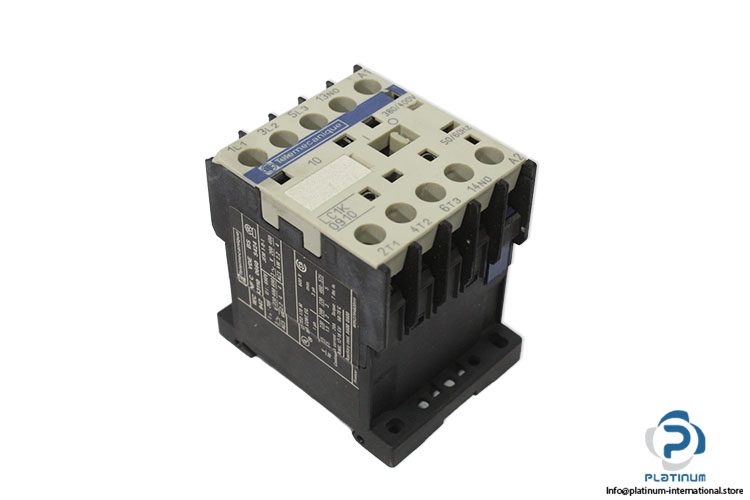

Telemecanique LC1 K0910Q7 Contactor
Novo
Em estoque1 unidadePronto para envio
44,44$
Contactor TELEMECANIQUE LC1K0910Q7 TeSys contactor with 3 NO power contacts, 1 NO auxiliary contact, 380…400 V AC coil voltage, and 9 A operational current, designed for motor control and resistive load applications.
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida
| Part No. | 023894 |
| Range | TeSys |
| Device application | Control |
| Contactor application | Motor control/Resistive load |
| Utilisation category | AC-3/AC-3e/AC-1/AC-4 |
| Poles description | 3P |
| power pole contact composition | 3 NO |
| [Ue] rated operational voltage | Power circuit: 690 V AC <= 400 Hz |
| Signalling circuit | 690 V AC <= 400 Hz |
| Control circuit type | AC at 50/60 Hz |
| [Uc] control circuit voltage | 380...400 V AC 50/60 Hz |
| Motor power Kw | 2.2 kW at 220...230 V AC 50/60 Hz AC-3/4 kW at 380...415 V AC 50/60 Hz AC-3/4 kW at 380...415 V AC 50/60 Hz AC-4/4 kW at 440/690 V AC 50/60 Hz AC-4 |
| Auxiliary contact composition | 1 NO |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Overvoltage category | III |
| Height | 58 mm |
| Width | 45 mm |
| Depth | 57 mm |
| IEC 60335-1 | Clause 30.2 |
| IEC 60335-2-40 | Annex JJ |
| UL 60335-2-40 | Annex JJ |
| Condition | New |
| SKU | 1099366 |
| Weight | 0,18 |
