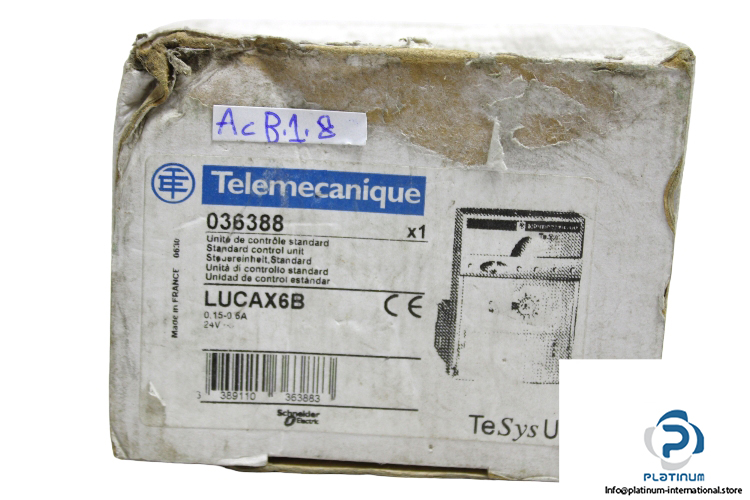

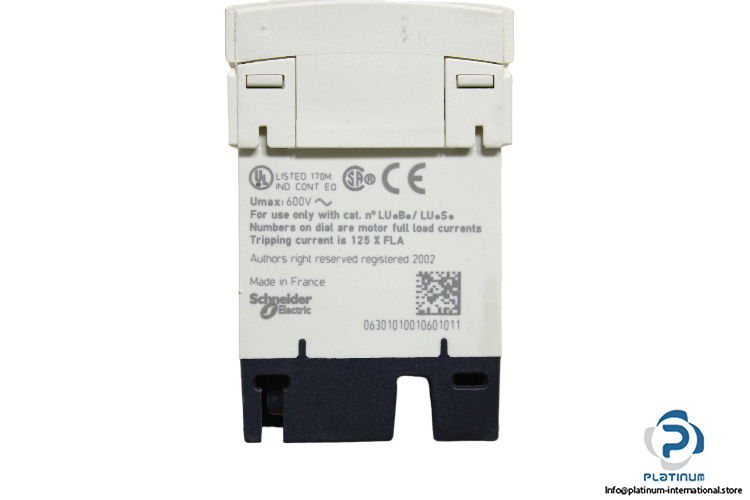

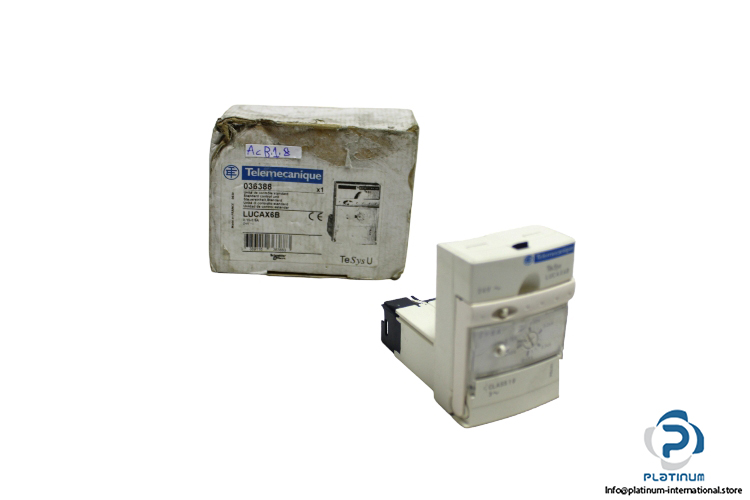

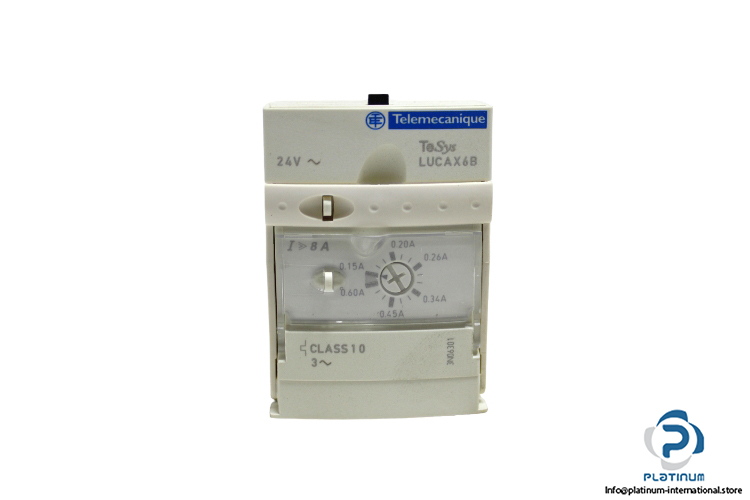

Telemecanique LUCAX6B Standard Control Unit

Manufacturer: Schneider, Telemecanique

Type: Standard control unit

Model: LUCAX6B



Rated operational voltage max: 690 V AC

Control circuit voltage: 24 V AC

Control circuit current: > 8 A

Network frequency: 40 … 60 Hz

Motor power: 0.09 kW at 400 … 440 V AC

Rated motor current adjustment Range: 0.15 … 0.60 A

Load type: 3-phase motor-cooling: self-cooled

fixing mode: Plug-in

Thermal overload class: Class 10

Degree of protection: IP20

Operation temperature: -25 … 70 °C

Dimensions: 45 x 66 x 60 mm
