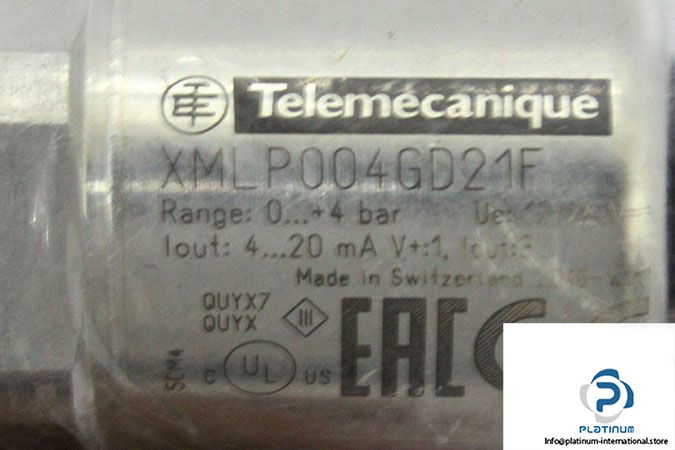

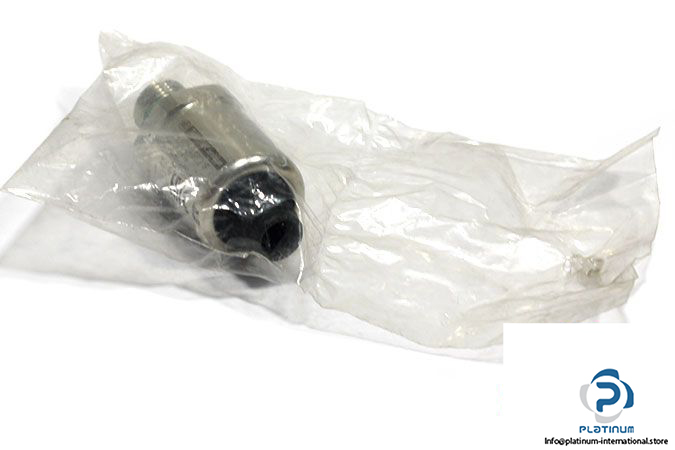

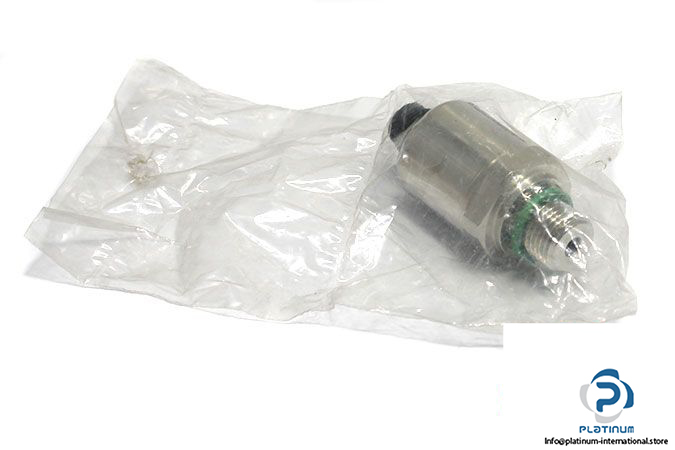

Telemecanique XMLP004GD21F Electronic Pressure Sensor

Manufacturer: TELEMECANIQUE

Type: Electronic Pressure Sensor

Model: XMLP004GD21F



ambient air temperature for operation: -30…85 °C

Port size: G 1/4A (male)

electrical connection: 1 male connector M12 4 pins

rated supply voltage: 12…24 V DC

type of output signal: Analogue

analogue output function: 4…20 mA, 2-wire

pressure setting range: 0…4 bar

max. permissible accidental pressure: 12 bar

rated impulse withstand voltage: 0.5 kV

Weight: 0.08 kg
