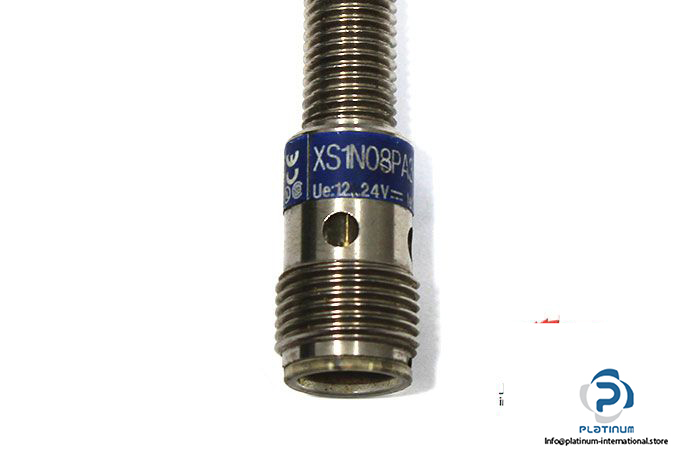

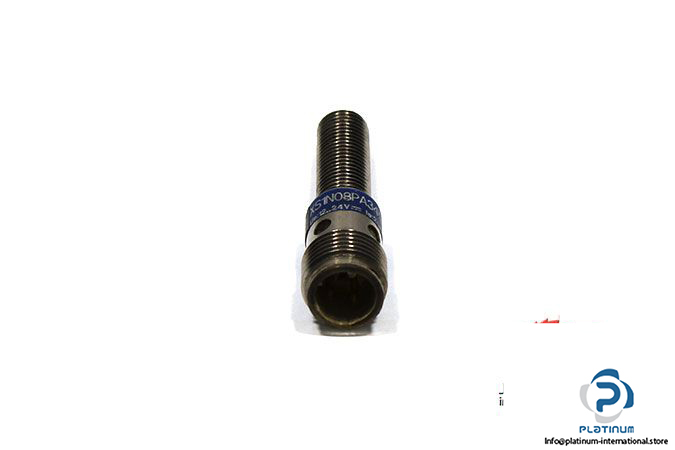

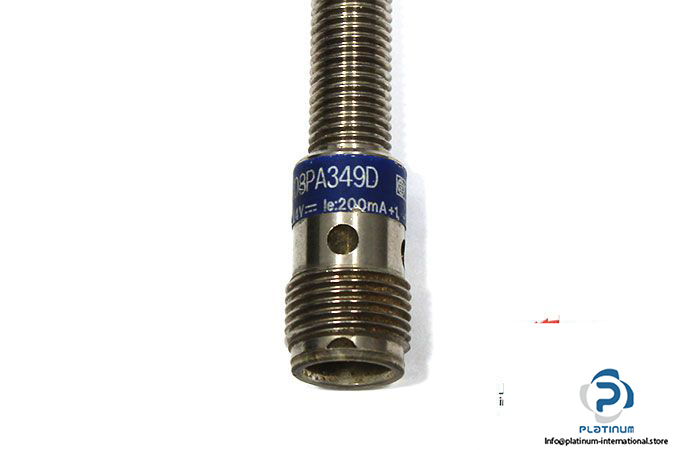

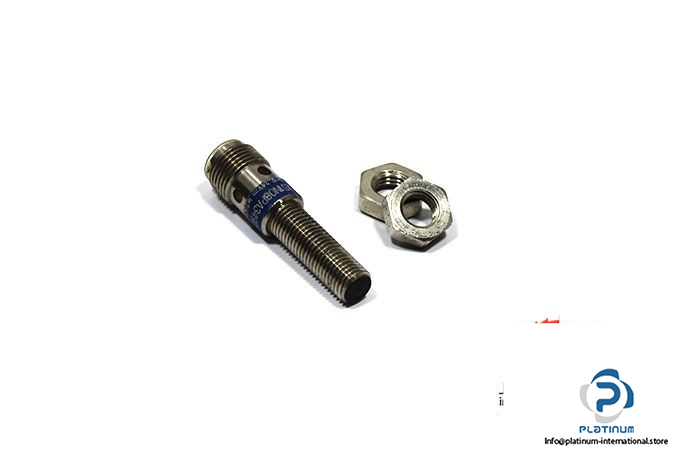

Telemecanique XS1N08PA349D Inductive Sensor

Manufacturer:  TELEMECANIQUE SCHNEIDER

Type:  INDUCTIVE SENSOR

Model: XS1N08PA349D

Sensing Range: 2.5 mm

Operating Voltage: 12 … 24 V DC

Switching Capacity: 0 … 200 mA

No-Load Supply Current: ≤ 10 mA

Maximum Voltage Drop: <= 2.6 V
Switching Frequency: 350 Hz

Signal Output: PNP

Switching Output: Normally Open

Sensor Design: Cylindrical M8

Electrical Connection: Connector M12, 4-Pin

Diameter, Length: 8, 45 mm

Ambient Operating Temperature: -25 … 50 °C

Housing Material: Metal

Mounting: Flush-Mountable

Weight: 0.015 kg
