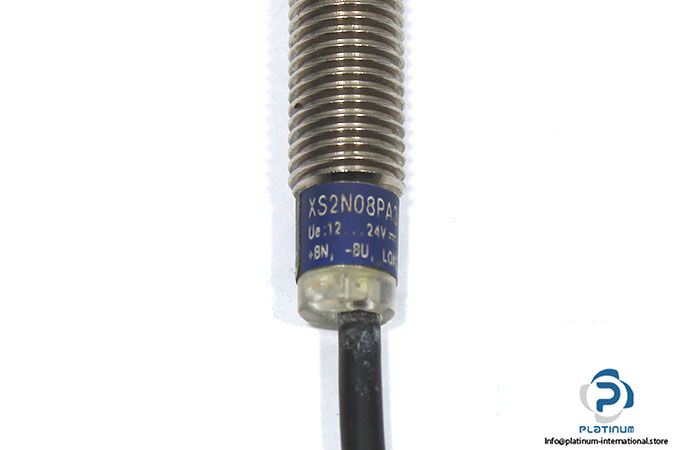

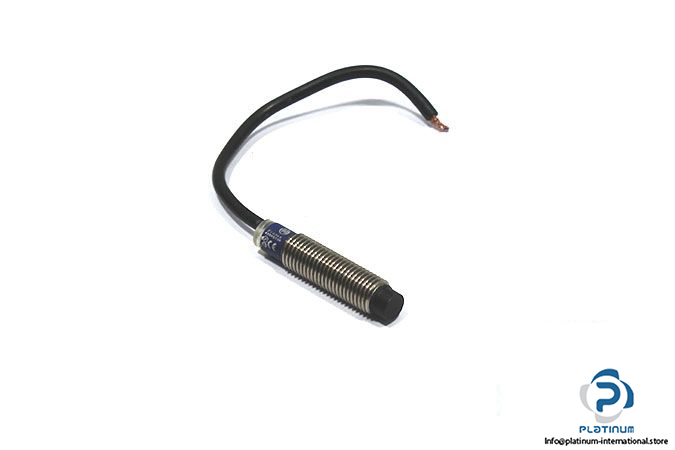

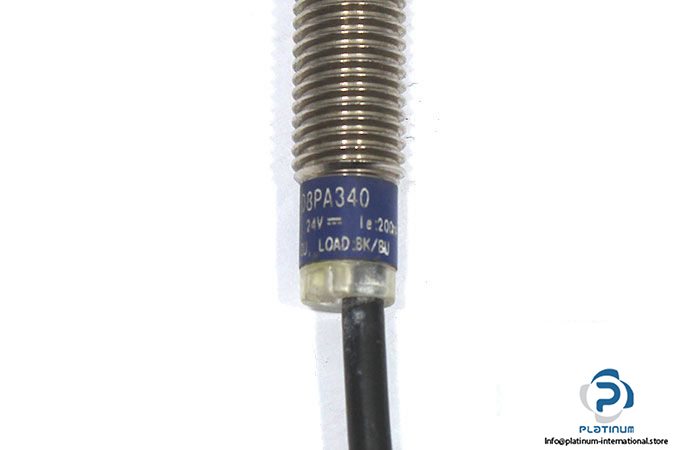

Telemecanique XS2N08PA340 Inductive Sensor

Manufacturer:  TELEMECANIQUE SCHNEIDER

Type:  INDUCTIVE SENSOR

Model: XS2-N08PA340

Sensing Range: 2.5 mm

Operating Voltage: 12 … 24 V DC

Switching Capacity: ≤ 200 mA

No-Load Supply Current: ≤ 10 mA

Maximum Voltage Drop: ≤ 2 V

Switching Frequency: 800 Hz

Signal Output: PNP

Switching Output: Normally Open

Sensor Design: Cylindrical M8

Electrical Connection: Cable, 3-Wire

Degree of Protection: IP67

Diameter, Length: 8, 37 mm

Ambient Operating Temperature: -25 … 70 °C

Housing Material: Metal

Mounting: Non Flush-Mountable

Weight: 0.015 kg
