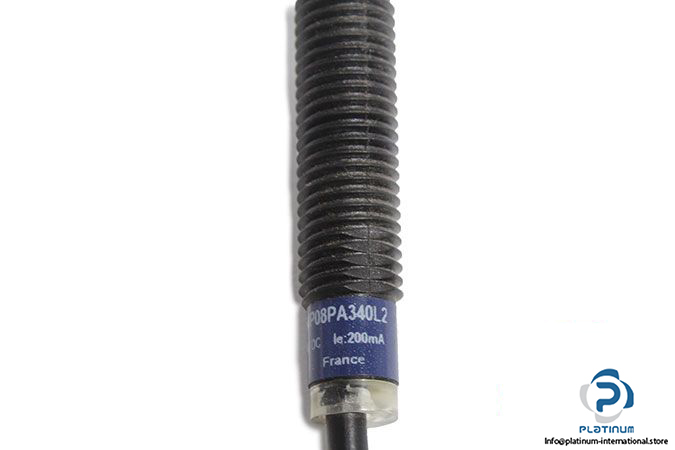

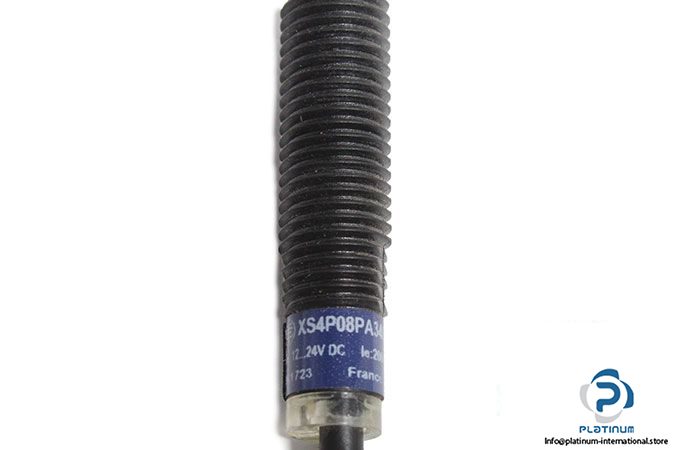

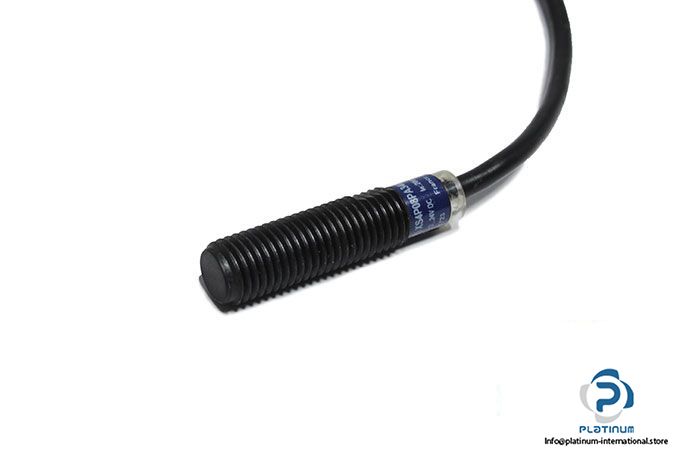

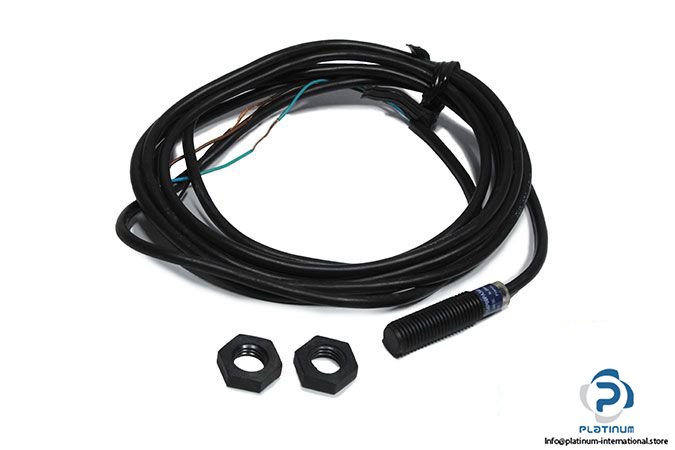

Telemecanique XS4P08PA340L2 Inductive Sensor

Manufacturer: Schneider / Telemecanique

Type: inductive Sensor

Model: XS4P08PA340L2

Sensor Design: Cylindrical M8

Detector Flush Mounting Acceptance: Non flush mountable

Material: Plastic

Wiring Technique: 3-wire

Nominal Sensing Distance: 2.5 mm

Discrete Output Function: 1 NO

Discrete Output Type: PNP

Electrical Connection: Cable

Cable Length: 10 m

Rated Supply Voltage: 12 … 24 VDC

Switching Capacity: <= 200
Degree of Protection: IP67

Thread Type: M8 x 1

Ambient Air Temperature for Operation: -25 … 70 °C

Diameter, Length: 8 mm, 33 mm

Weight: 0.025 Kg
