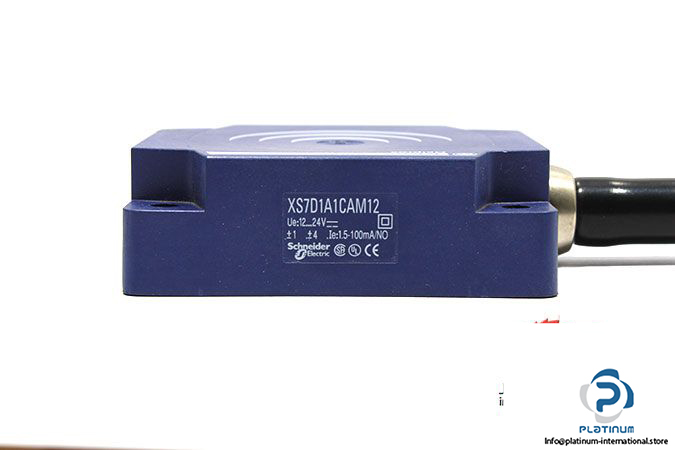

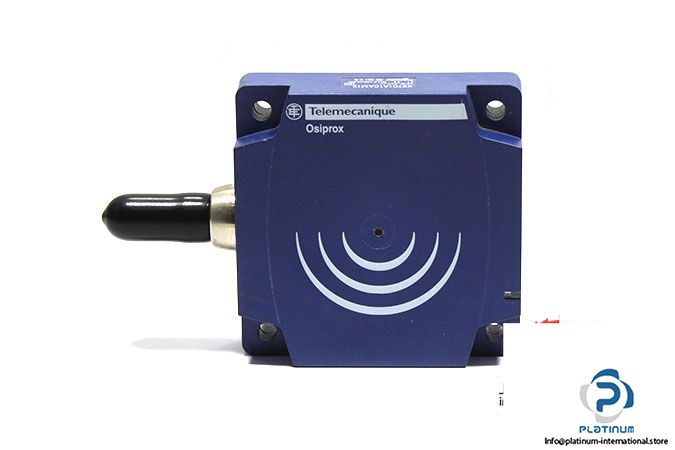

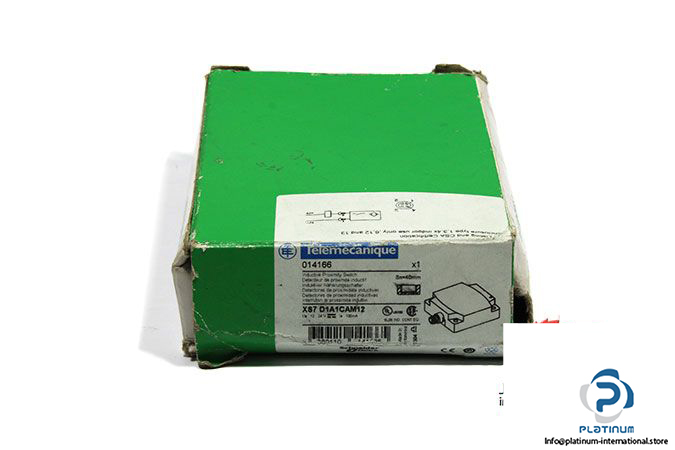

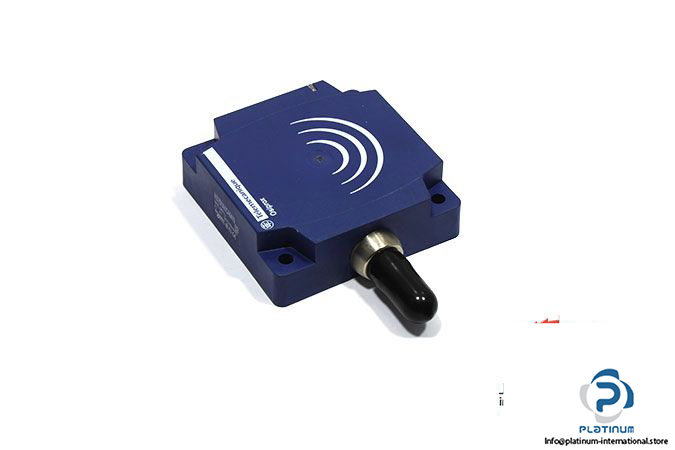

Telemecanique XS7D1A1CAM12 Inductive Sensor

Manufacturer: TELEMECANIQUE SCHNEIDER

Type: INDUCTIVE SENSOR

Series Name: General Purpose

Model: XS7-D1A1CAM12

Sensing Range: 40 mm

Operating Voltage: 12 … 24 V DC

Operating Current: 1.5 … 100 mA

Maximum Voltage Drop: <= 4 V
Switching Frequency: 100 Hz

Switching Output: Normally Open

Connection: Male Connector M12, 4-Pin

Enclosure Rating: IP67

Ambient Operating Temperature: -25 … 70 °C

Dimensions: 26 x 80 x 80 mm

Material: Plastic

Enclosure Material: PBT

Body Type: Fixed

Mounting: Flush-Mountable

Weight: 0.33 kg
