Telemecanique XUK0AKSAL2 Multimode Photoelectric Sensor

Manufacturer:  TELEMECANIQUE / SCHNEIDER

Series: GENERAL PURPOSE MULTIMODE

Type: MULTIMODE PHOTOELECTRIC SENSOR

Model : XUK0AKSAL2

Detection System: Multimode

Sensing Range: 0 … 30 m

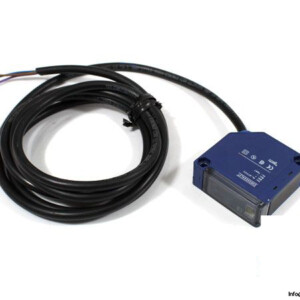

35 m thru beam need a Transmitter XUK0AKSAL2T

0.28 m diffuse with background suppression

1.2 m diffuse

5.7 m polarised reflex need reflector XUZC50

Operating Voltage: 12 … 24 V DC

Operating Current: 100 mA

Electrical Design: PNP or NPN

Switching Output: Normally Open and Normally Closed

Connector Type: Cable 2 m, 3-Wire

Enclosure Rating: IP65

Ambient Operating Temperature: -25 … 55°C

Dimensions: 50 x 18 x 50 mm

Housing Material: PBT

Sensing Face Material: PMMA

Weight: 175 g
