Temposonics EP20300MA Magnetostrictive Linear Position Sensor

Name: TEMPOSONICS EP20300MA MAGNETOSTRICTIVE LINEAR POSITION SENSOR
SKU: 1062784
Availability: LimitedAvailability

temposonics-EP20300MA-magnetostrictive-linear-position-sensor-(Used)

temposonics-EP20300MA-magnetostrictive-linear-position-sensor-(Used)-1

temposonics-EP20300MA-magnetostrictive-linear-position-sensor-(Used)-2

temposonics-EP20300MA-magnetostrictive-linear-position-sensor-(Used)-3

Usado

Em estoque1 unidadePronto para envio

Magnetostrictive Linear Position Sensor

The TEMPOSONICS EP20300MA Magnetostrictive Linear Position Sensor offers high precision with a **0.02 micro m resolution** and **300 mm stroke length**. Built with an **IP67 protection class** and **aluminum housing**, it is ideal for demanding industrial applications.

Fabricante

TEMPOSONICS

SKU

1062784

Categoria

Linear Encoders

Condição

Usado

0-10 0.02 300 4-20 Aluminum Analog Cable Class Connector EP20300MA Industrial IP67 Length Linear M M12 mA Magnetostrictive Micro mm Output Position Precision Protection Range Resolution Sensor Stroke Temperature Temposonics V

Grande Estoque

Envio Global

Suporte Especializado

Qualidade Garantida

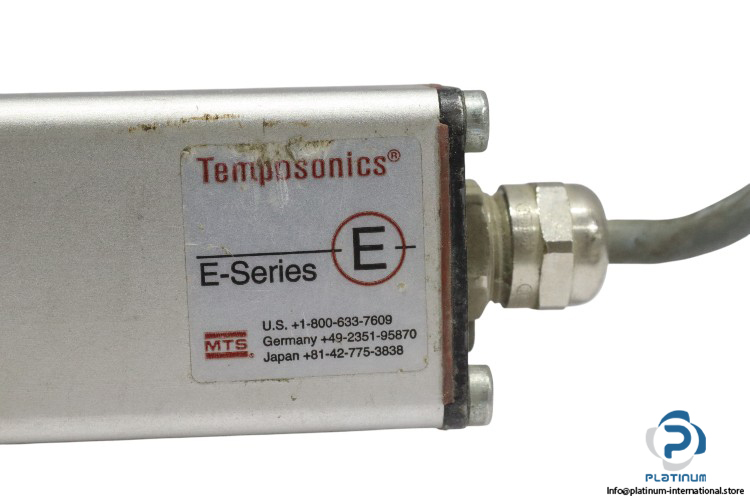

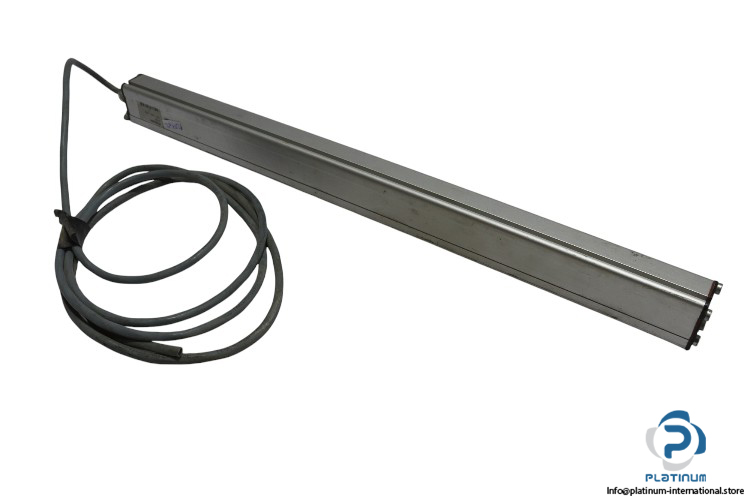

TEMPOSONICS EP20300MA Magnetostrictive Linear Position Sensor

The TEMPOSONICS EP20300MA Magnetostrictive Linear Position Sensor provides precise linear position measurement with high resolution and durability. Featuring a rugged aluminum housing and an IP67 protection class, it is designed for industrial applications that require reliability in harsh environments.

Manufacturer: TEMPOSONICS

Type: Magnetostrictive Linear Position Sensor

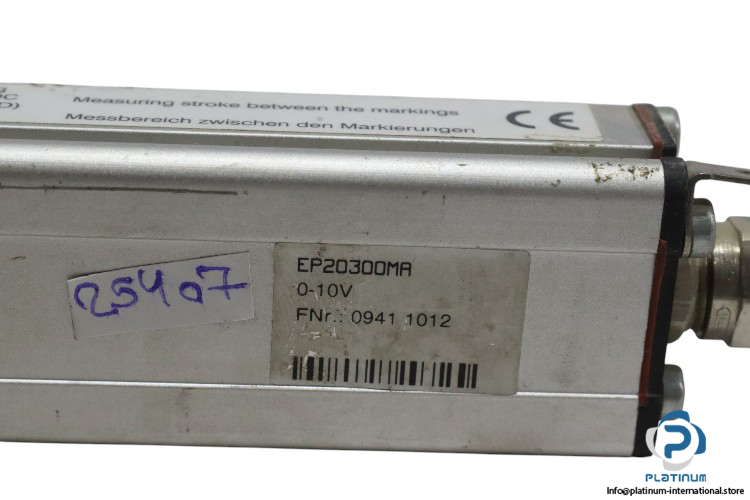

Model: EP20300MA

Part No: 0941 1012

Resolution	0.02 micro m
Stroke Length	300 mm
Rated Supply Voltage	24 V DC
Rated Current Consumption	50 to 140 mA
Analog Output Ratings	0 to 10 V DC, 4 to 20 mA

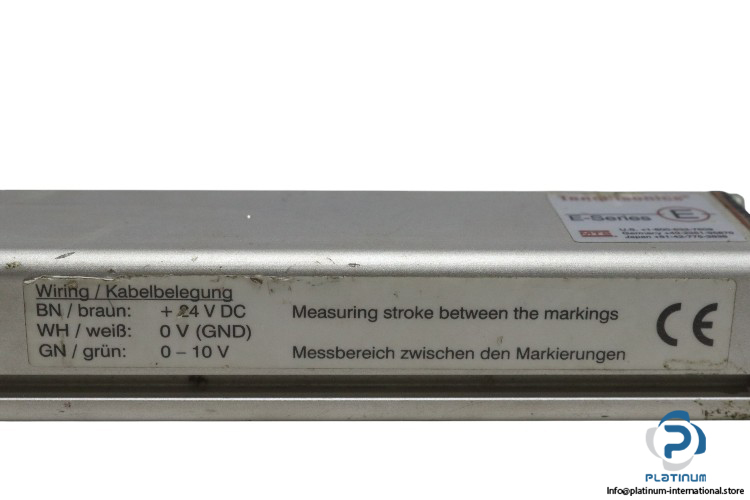

Connection	Cable Connector, M12, 5-Pin
Material	Aluminum
Protection Class	IP67
Temperature Range	-40 to 75 °C
Dimensions	446 x 35.6 x 27 mm
