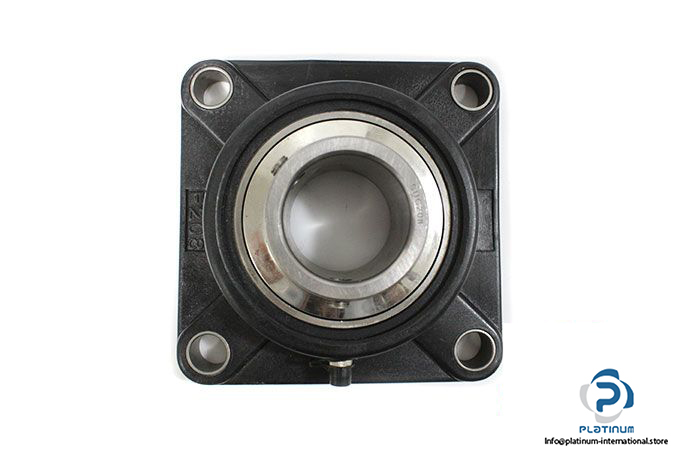

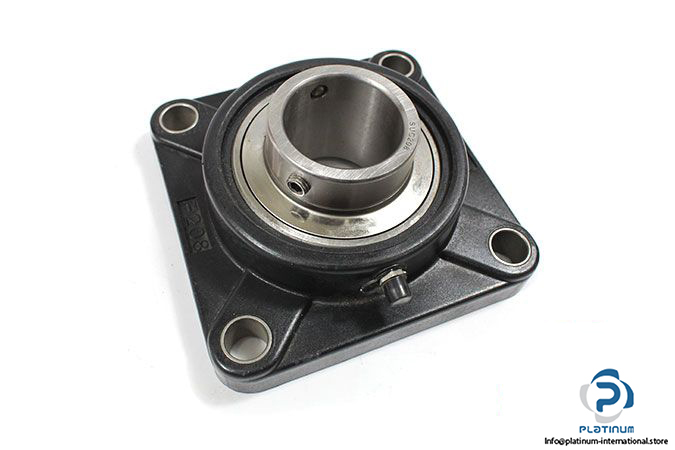

UCF208-PBT Four-Bolt Square Flange Unit

Type: FOUR-BOLT SQUARE FLANGE UNIT

Series: UCF

Part No.: UCFP 208

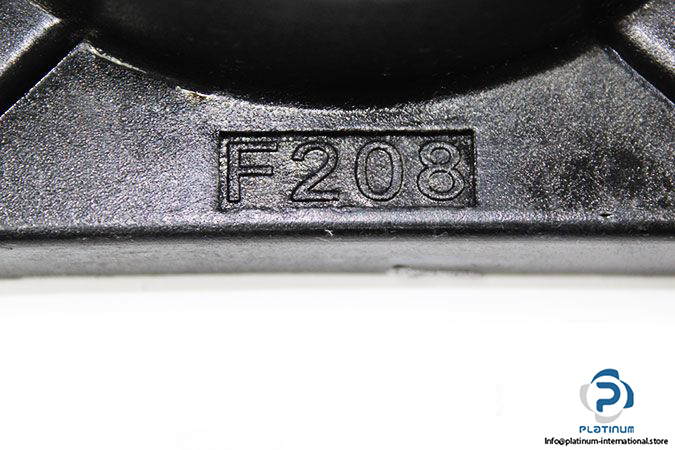

Housing No.: F208

Bearing No.: UC208



Application: The plastic pillow blocks are manufactured in accordance with FDA standards and are therefore suitable for food and pharmaceutical industries

Features:

• plastic pillow block bearings are chemically resistant
• lightweight and run quietly and smoothly in applications where metallic ball bearings will not perform

Housing Material: Plastic

Bearing Material: Stainless Steel

Bore type: Round

Mounting: Four-Bolt Flange

Locking device: Set Screw

Bore Diameter: 40 mm

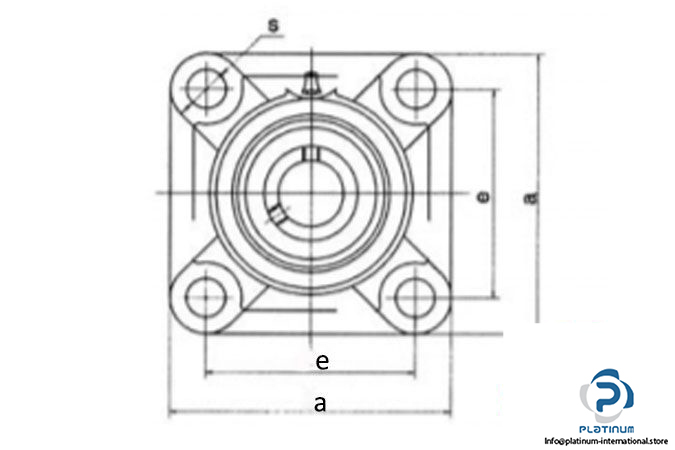

Overall length ( a ): 130 mm

Overall Width ( e ): 102 mm

Overall Height: 53 mm

thread size ( s ): 16 mm

Weight: 0.90 kg
