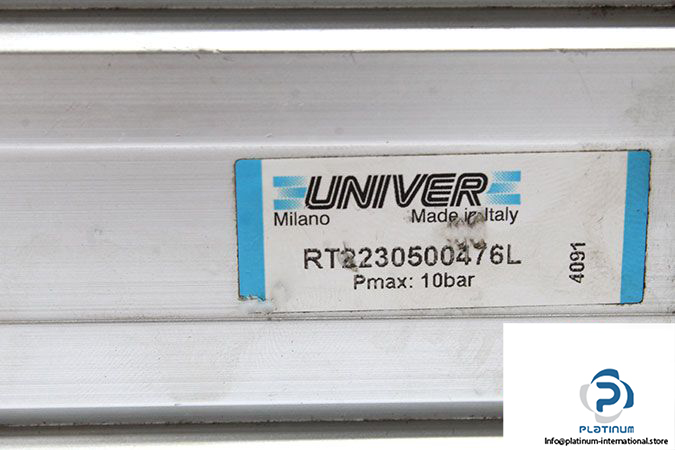

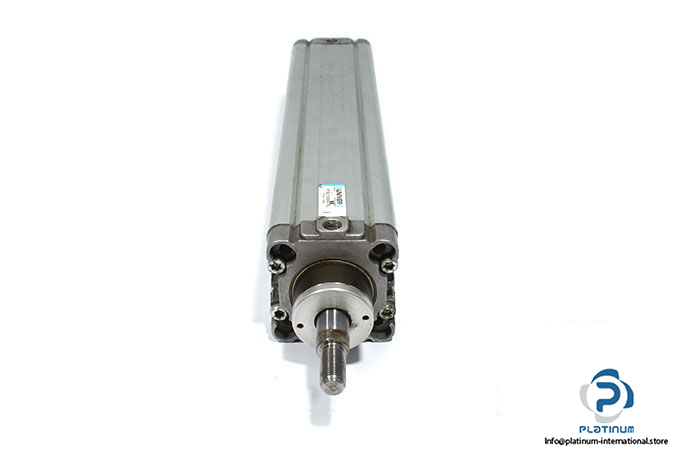

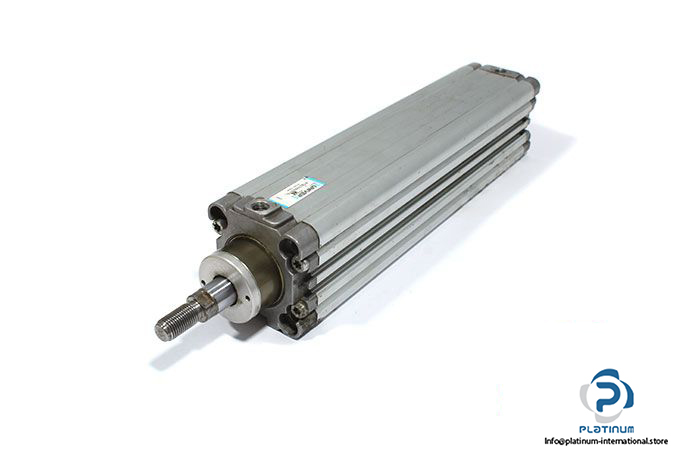

Univer RT2230500476L Tellescopic Pneumatic Cylinder

Manufacturer: UNIVER

Type: Tellescopic Pneumatic Cylinder

Model: RT2230500476L

Material

,,Cylinder Tube: Anodized Aluminium

,,Piston And End-Capes: Aluminium

,,Piston Rod:  chromium-plated steel

Stroke Length

,,Stage ( 1 ): 238 mm

,,Stage ( 2 ): 238 mm

Max. Stroke: 476 mm

Bore Size: 50 mm

Mode of operation: Double-acting

Fluid: filtered air

Piston rod end: Male thread

Connection size: 1/8 ”

Operating Pressure: 1,5 … 10 bar

Ambient Temperature: -20 … 80 °C

Weight: 1.88 kg
