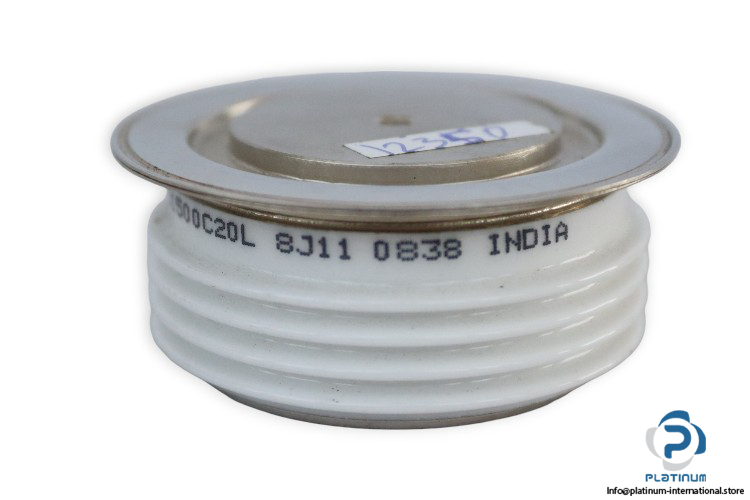

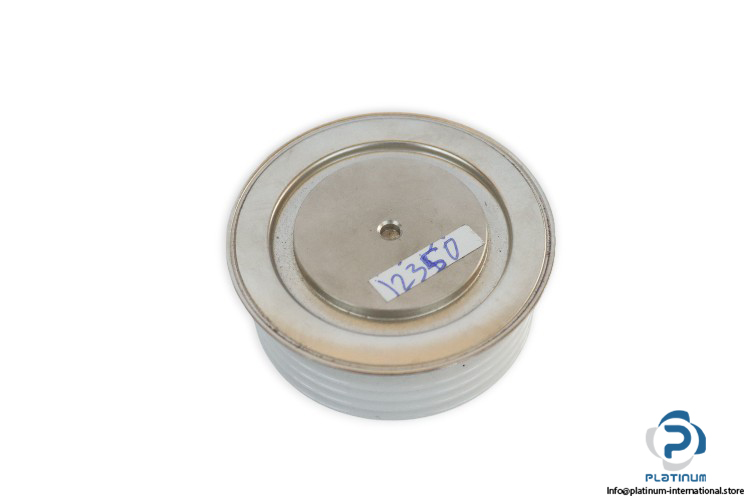

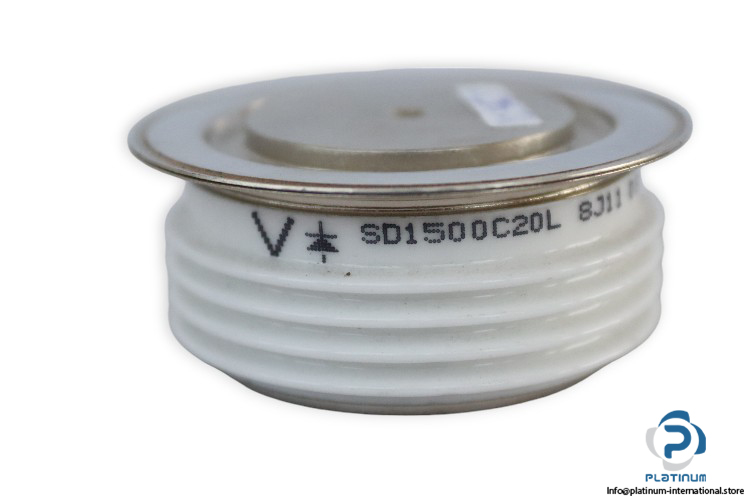

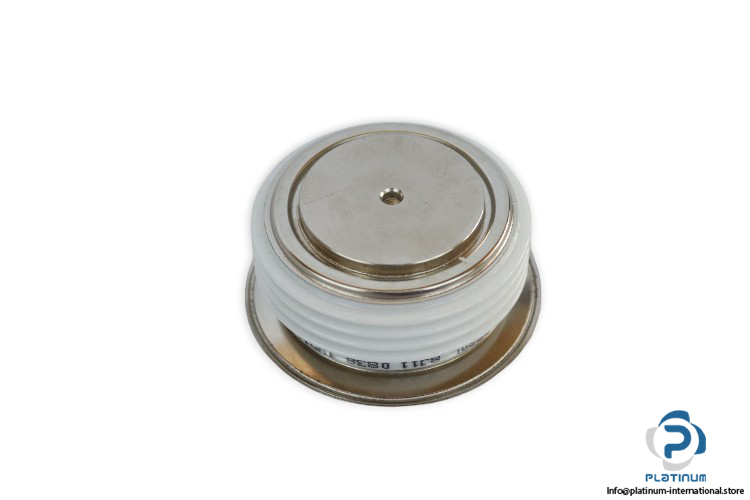

Vishay SD1500C20L Standard Recovery Rectifier
Fabricante: Vishay Tipo: Retificador de recuperação padrão Modelo: SD1500C20L Número da peça: 8J11 0838
Manufacturer: Vishay
Type: Standard Recovery Rectifier
Model: SD1500C20L
Part No.: 8J11 0838
Features:
• Wide current range
• High voltage ratings up to 3000 V
• High surge current capabilities
• Diffused junction
• Hockey PUK version
• Case style B-PUK (DO-200AB)
Typical Applications:
• Converters
• Power supplies
• Machine tool controls
• High power drives
• Medium traction applications
Forward Voltage Vf: 1.64 V
Maximum Peak, One Cycle, A Non-Repetitive Surge Current: 14700 A
Maximum at Tj = Tj Maximum IRRM: 50 mA
Mounting Style: Screw Mount
Maximum Repetitive Peak Reverse Voltage: 2000 V
Maximum Non-Repetitive Peak Reverse Voltage: 2100 V
Forward Current If: 1600 A
Operating Temperature: -40 … 180°C
Dimensions: 27 x 58.5 x 58.5 mm
