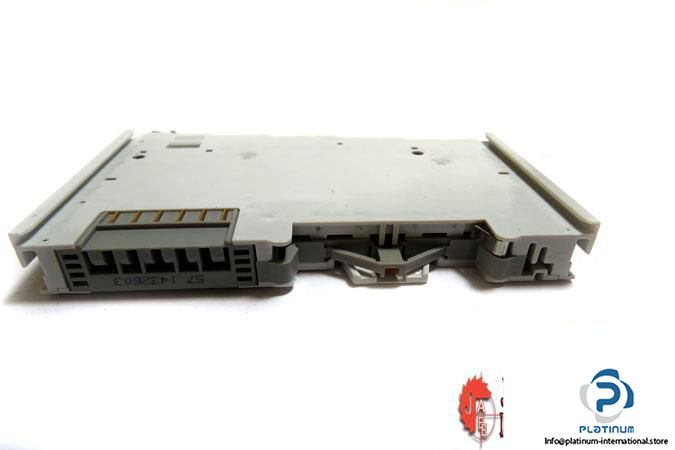

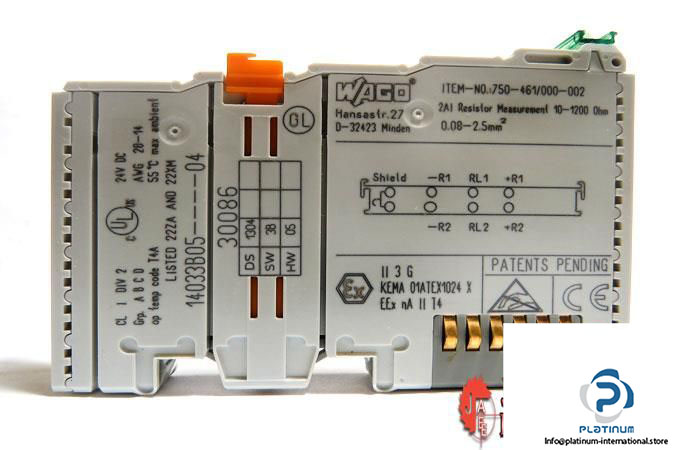

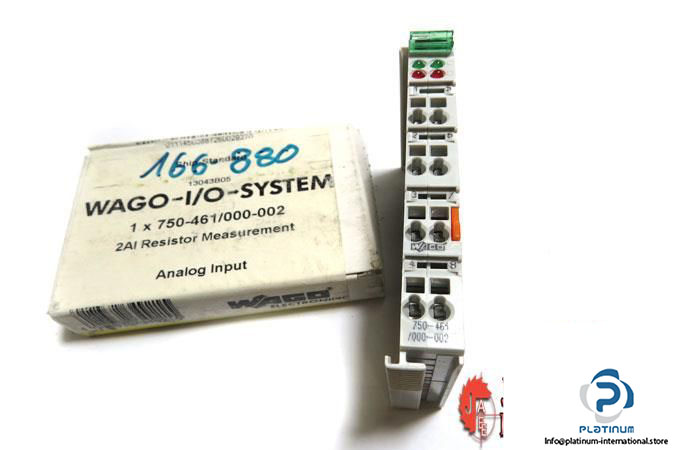

Wago 750-461/000-002 2-CHANNEL Analog Input

Manufacturer: WAGO

Type: 2-channel analog input

Model: 750-461/000-002

Number of analog inputs: 2

System supply voltage: DC 5 V; via data contacts

Current consumption, system supply (5 V): 80 mA

Type of signal: Potentiometer positions

Conversion time: 320 ms

Measuring current: 0.5 mA

Response time: 4 s

Sensor types: Resistance measurement 10R-1k2

Resistance measurement: 10…1200 ohm

Isolation: 500 V system/ supply

Operating temp: max. 55°C

Protection: IP20

Weight: 51 g

Condition: New
