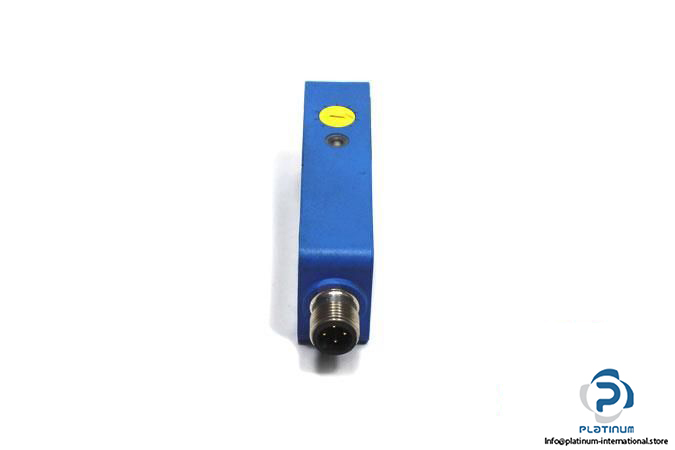

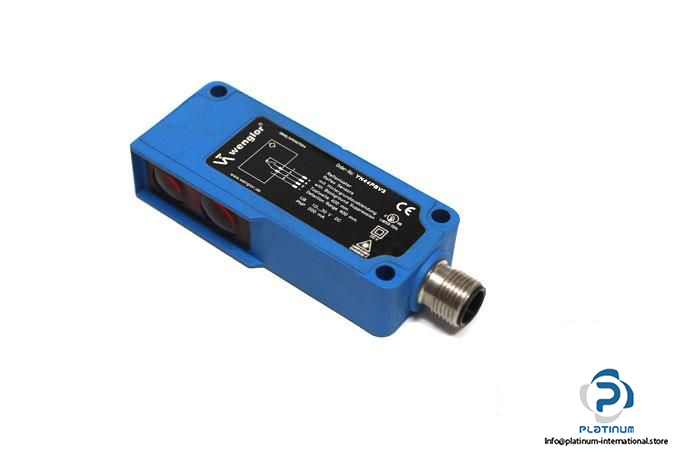

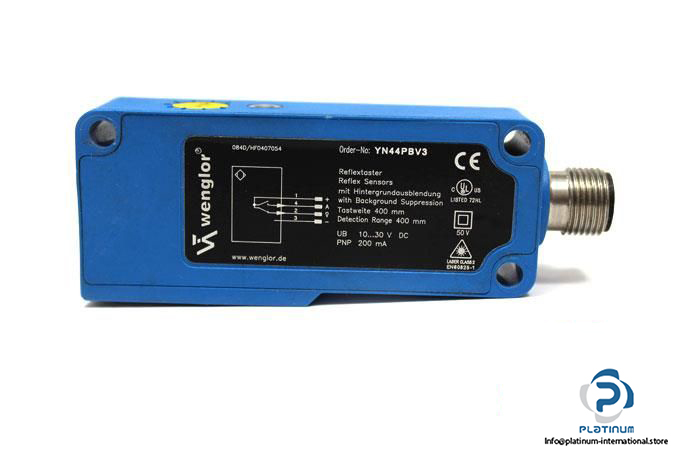

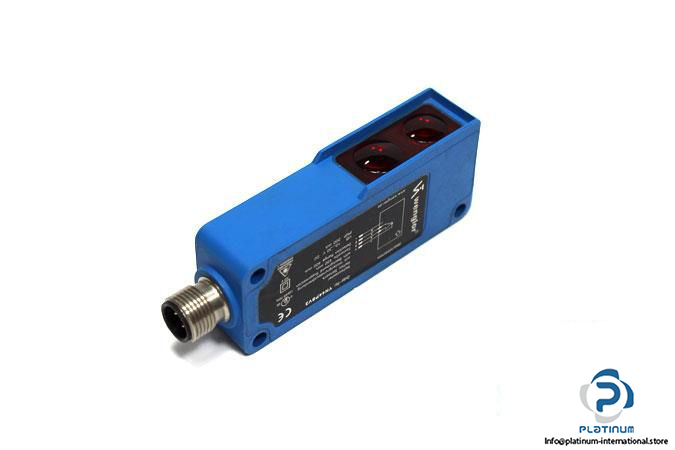

Wenglor YN44PBV3 Photolectric Reflex Sensor

Manufacturer: Wenglor
Type: Photoelectric Reflex Sensor, Background Suppression
Part Nr.: YN44PBV3

This sensor detects distance by measuring angles, particularly
well at recognizing objects in front of any background (High
precision background suppression up to 400 mm)
Sensing range: 400 mm
Adjustable range: 65…400 mm
Response time: 833 µs
Operating Voltage: 10 … 30 V DC
Current consumption: < 20 mA
Output Current: 200 mA
Electrical design: PNP
Switching output: Normally open
Adjustment: Potentiometer
Connector type: M12 Connector, 4-pin
Protection class: III
Enclosure rating: IP67
Ambient Operating temperature: -25 … 60°C
Dimensions: 32 x 76 x 18 mm
Housing: Rectangular
Housing material: Plastic
