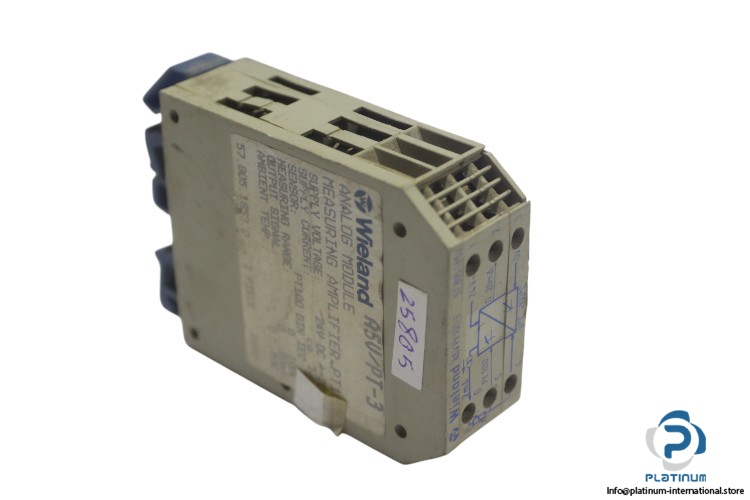

Wieland ASV/PT-3 Analog Module

Wieland ASV/PT-3 Analog Module

The **Wieland ASV/PT-3 Analog Module** is designed for precise temperature measurement with a **PT100 sensor**. It provides reliable output within a **0 to 100°C measuring range** and supports a **0 to 20mA output** for easy integration into control systems. This module is ideal for industrial applications requiring accurate temperature monitoring.

Manufacturer: WIELAND

Type: Analog Module

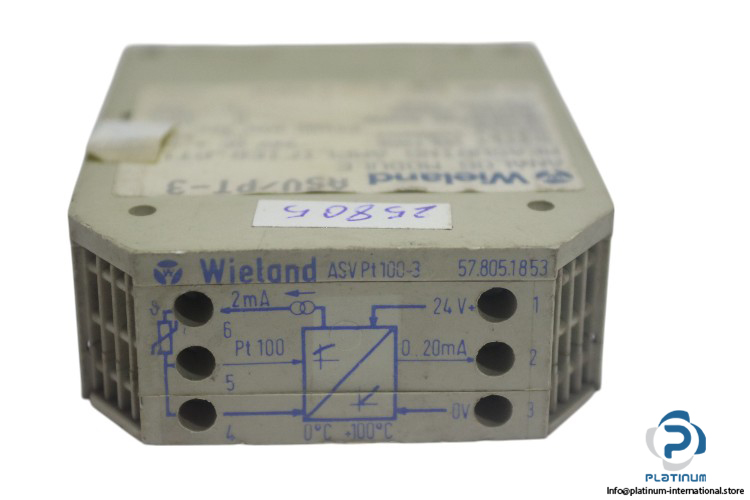

Model: ASV/PT-3 / ASV PT100-3

MRN: 57.805.1853.0

Ref No.: 2692

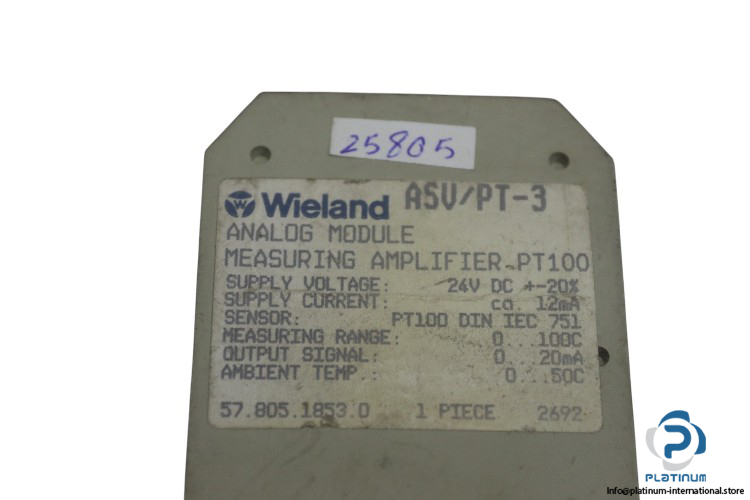

Technical Data:

• Supply Voltage: 24 VDC
• Supply Current: 12 mA
• Sensor: PT100
• Measuring Range: 0 / 100 °C
• Output Rated: 0 / 20 mA
• Ambient Temperature: 0 / 50 °C
