32-5R Ball Screw

Name: 32-5R BALL SCREW
SKU: 1057885
Availability: LimitedAvailability

Yeni

Stokta3 ünitelerSevkiyata hazır

Tip: Flanş Somunu Top Vida Model: 32-5 R Flanş Somunu Top Vida (Model: 32-5 R), 32 mm nominal çap, 5 mm adım ve sağ diş ile hassas hareket kontrolü sunar. Diş uzunluğu 355 mm, toplam vida uzunluğu 520 mm'dir.

SKU

1057885

Kategori

Screw & Ball Screws

Koşul

Yeni

32 32.5 355 5 Ball Control Flange Length mm Motion nut Precision R Right-Hand screw Thread Threaded x

Paylaş

Geniş Stok

Küresel Nakliye

Uzman Destek

Kalite Garantili

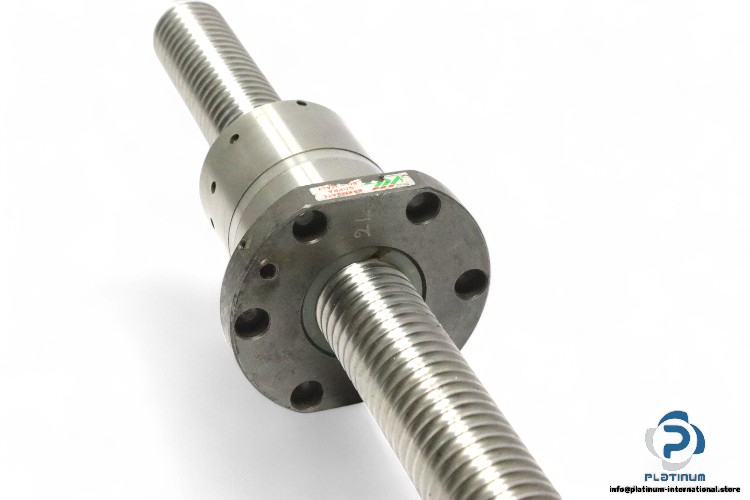

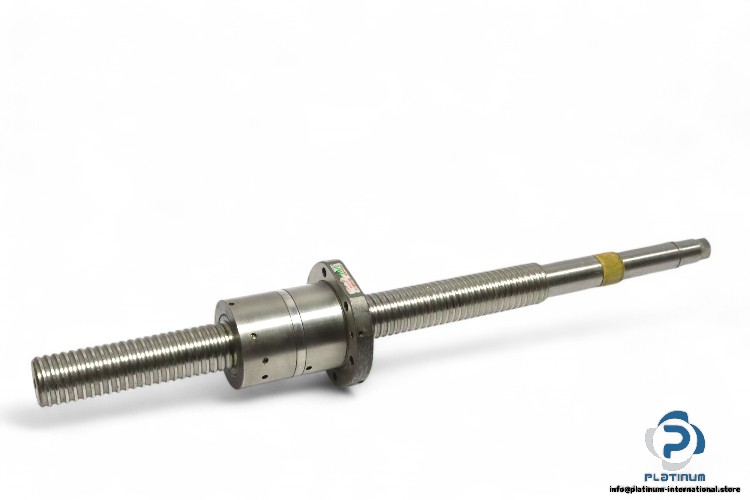

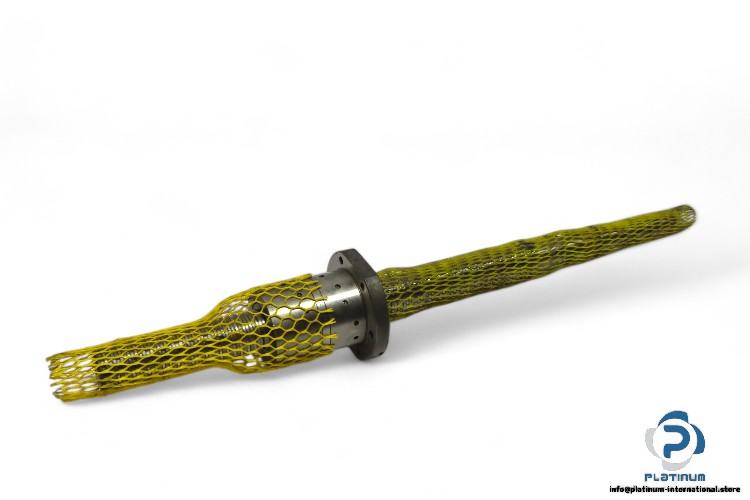

Flange Nut Ball Screw (Model: 32-5 R)

Type: Flange Nut Ball Screw

Model: 32-5 R

The Flange Nut Ball Screw (Model: 32-5 R) is designed for precision motion control applications. This model features a right-hand thread and is known for its durability and high performance in mechanical systems.

Type: Flange Nut Ball Screw
Model: 32-5 R
Size: 32 x 5 R
Nominal Diameter (dN): 32 mm
Lead (P): 5 mm
Number of Starts: 1
Direction of Lead: Right-Hand Thread
Threaded Length: 355 mm
Total Screw Length: 520 mm

Teknik Özellikler	Değer
Weight	3,8 kg
Condition	New
Flange Thickness [mm]	12
Type of Product	Flange nut ball screw
Shelf No.	250131
Nut Outer Diameter [mm]	58
Flange Diameter [mm]	85
Cutting Flange Width [mm]	76
Size	32 x 5 R
Nut Length [mm]	83
