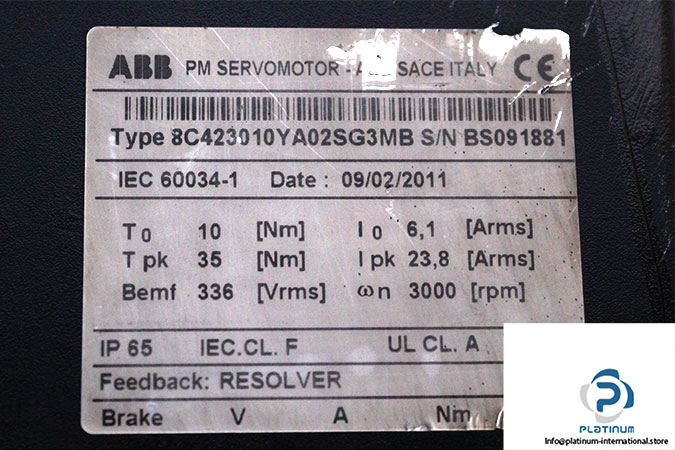

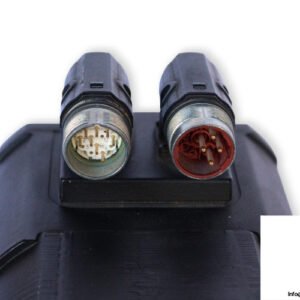

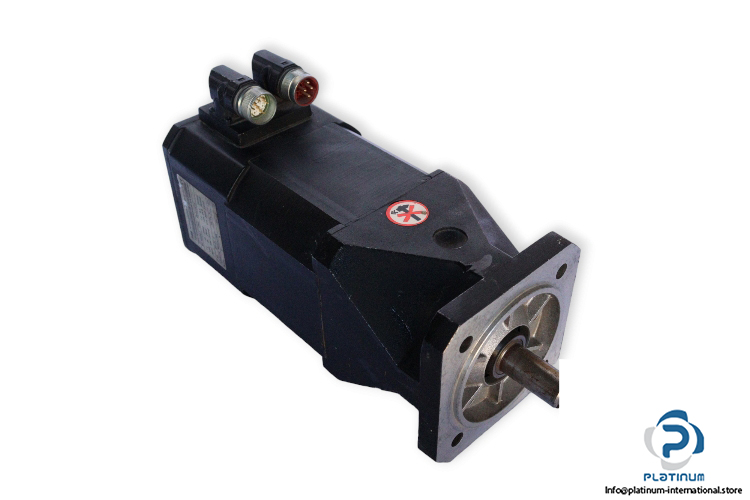

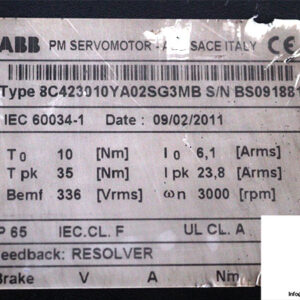

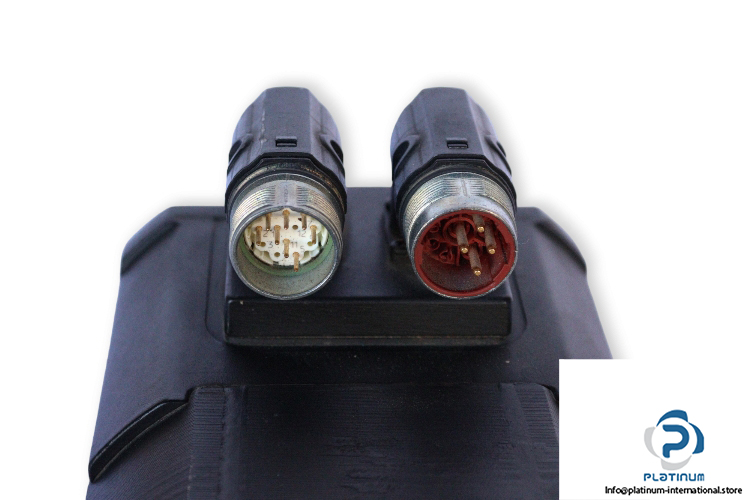

ABB 8C423010YA02SG3MB AC Servo Motor

Manufacturer: ABB
Type: SERVO MOTOR
Model: 8C423010YA02SG3MB
S/N: BS09 1881

Type: 3 phase
Continuous torque at zero speed T0: 10 Nm
Current at continuous torque I0: 6.1 A
Rated torque M_N: 8.4 Nm
Rated current I_N: 5.4 A
Rated Speed: 3000 rpm
Mechanical rated power: 2.64 kW
Peak torque: 35 Nm
Current at peak torque I_max: 23.8 A
Motor current limit Ilimit: 40.4 A
B.e.m.f. between phases at rated speed: 336 V
Torque constant: 1.85 Nm/A
Moment of inertia of rotor: 12.8 kgcm²
Protection class: IP65
Insulation Class: Class F
Feedback Unit: Resolver
Ambient Temperature: 40°C
