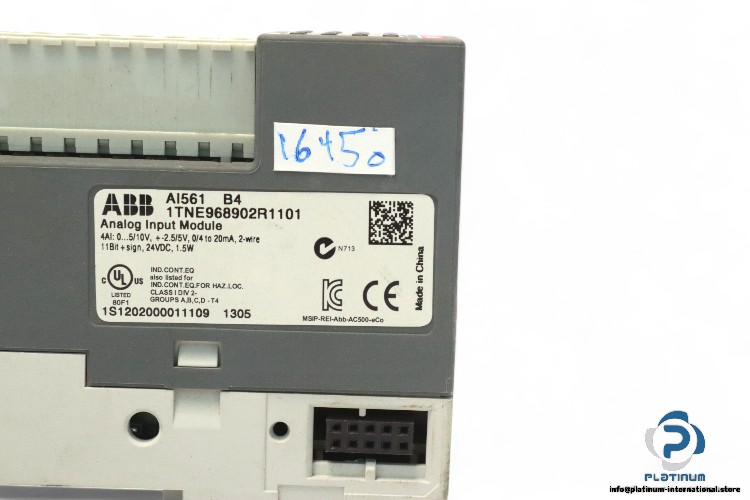

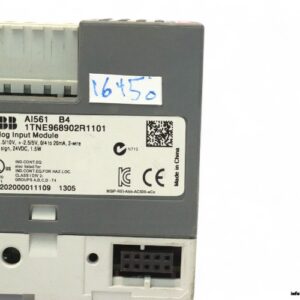

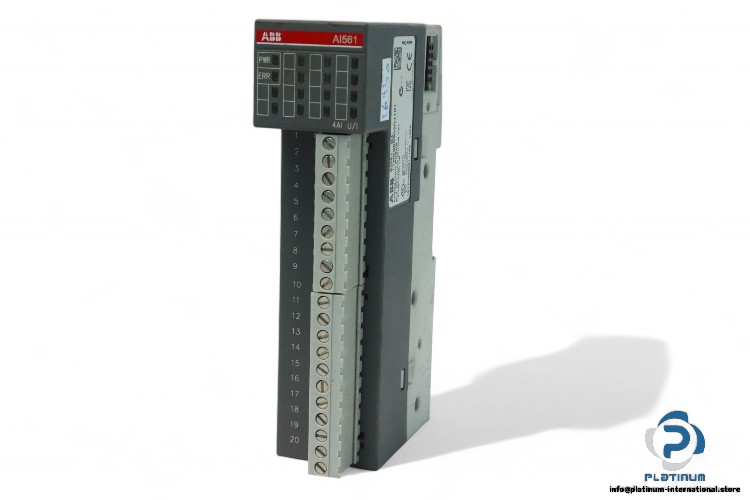

ABB AI561 Analog Input Module

Manufacturer: ABB
Type: ANALOG INPUT MODULE
Model: AI561
Part no.: 1TNE 968 902 R1101

Connections: Terminal 19 for L+ (+24 V DC) and terminal 20 for M (0 V)
Wiring method: Spring/screw terminals
Rated voltage: 24 V DC
Degree of protection: IP 20
Current consumption: 0.1 A
power dissipation within the module Max.: 2.7 W
Number of channels per module (analog inputs): 4 individually configurable voltage or current inputs
Mounting with screws: M4
Fastening torque: 1.2 Nm
Operation Temperature:
0 … 60 °C (horizontal mounting of modules)
0 … 40 °C (vertical mounting of modules)
