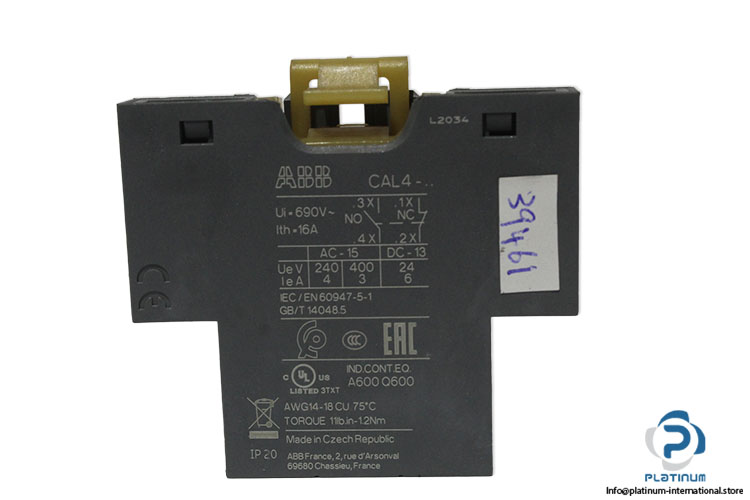

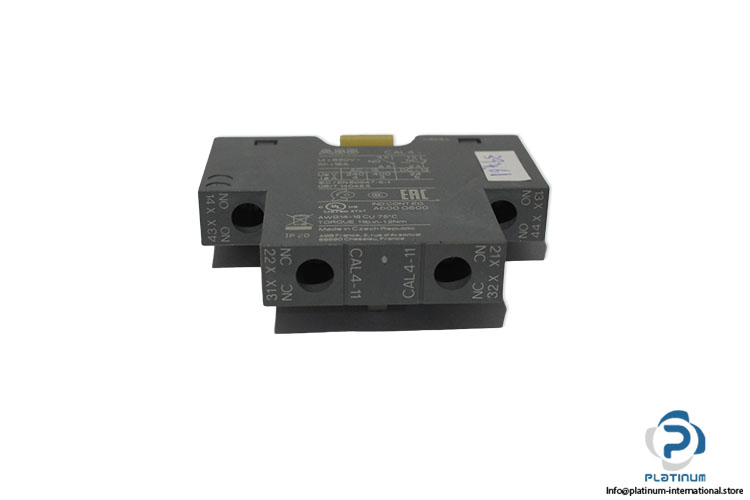

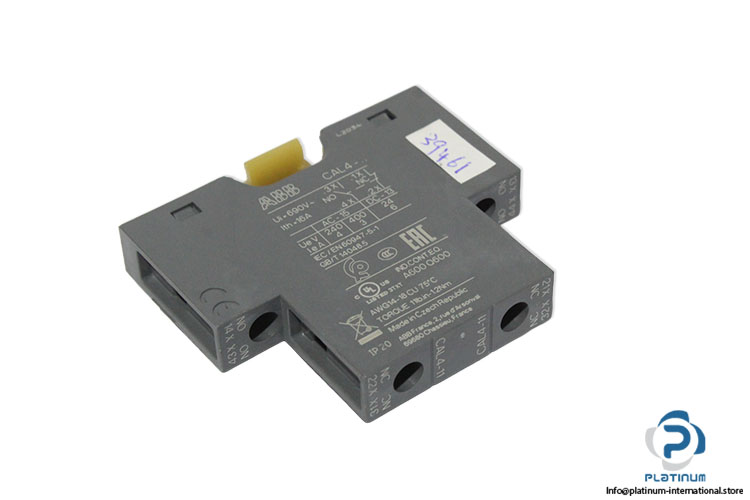

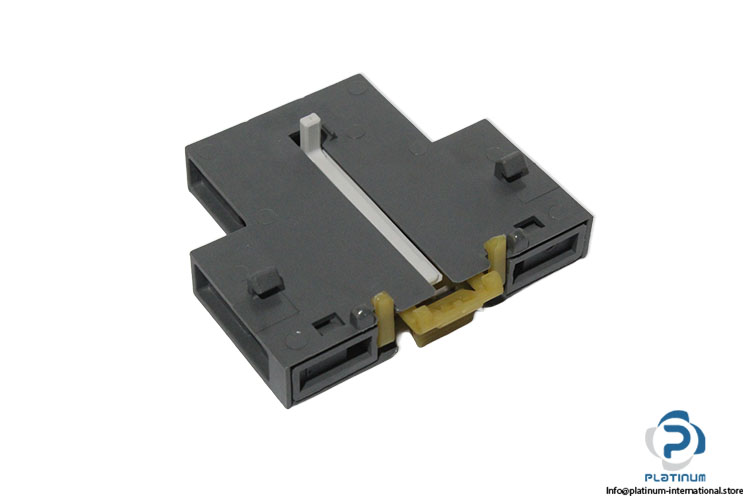

ABB CAL4-11 Auxiliary Contact Block
Yeni
Stokta1 birimSevkiyata hazır
11,11$
Auxiliary Contact Block ABB auxiliary contact block with 1 NO and 1 NC contact, designed for reliable control circuit switching with compatible AF series contactors.
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Poles | 2P |
| Standards | IEC/EN 60947-5-1, UL 60335-2-40 LZGH2 A2L, UL 60947-5-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-5-1-14 |
| Rated Operational Voltage | Auxiliary Circuit 690 V |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, T = 40 °C 16 A |
| Rated Operational Current AC-15 (Ie) | (500 V) 2 A,(690 V) 2 A,(24 / 127 V) 6 A,(220 / 240 V) 4 A,(400 / 440 V) 3 A |
| Rated Operational Current DC-13 (Ie) | 400 V) 0.15 A / 60 W |
| Tightening Torque | Auxiliary Circuit 1.2 N·m |
| Terminal Type | Screw Terminals |
| Suitable For | AF09,AF09Z,AF12,AF12Z,AF16,AF16Z,AF26,AF26Z,AF30,AF30Z,AF38,AF38Z,AF40 |
| Width | 12 mm |
| Depth / Length | 60 mm |
| Height | 69.4 mm |
| Stock key | JO-004 |
| Condition | New |
| SKU | 1100882 |
| Weight | 0,04 |
