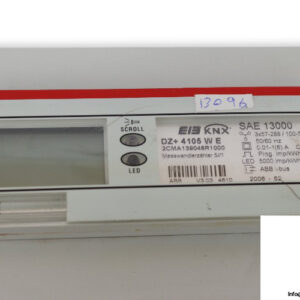

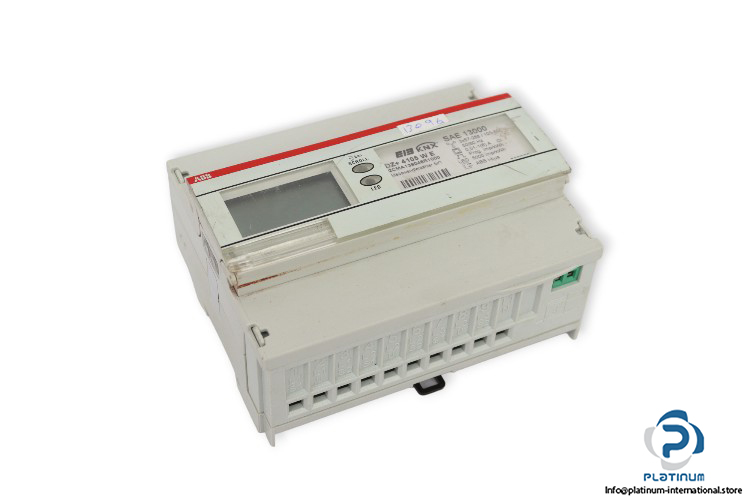

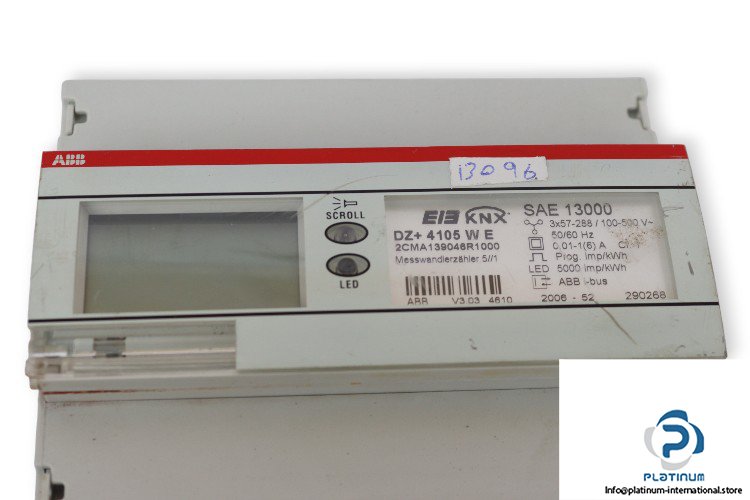

ABB DZ+ 4105 W E Active Energy Meter

Manufacturer: ABB
Type: Active energy meter with network monitoring function
Order No.: DZ+4105WE
Part No.: 2CMA139046R1000
Series: SAE 13000

Voltage: 57 … 288 V AC/100 … 500 V AC/3phase
Nominal current Ib (limit current Imax):
Transformer rated meter: 1 (6) A
Starting current:
Transformer rated meter: (/1 A or /5A transformer) < 2 mA
Direct connected meter: < 20 mA
Power consumption:
Voltage circuit: < 3 VA, 2 W per phase
Current circuit:
– Transformer rated meter: < 0.08 VA per phase
– Direct connected meter: < 6 VA per phase
Frequency: 50/60 Hz
Transformer rated meter: 5000 Imp/kWh (kvarh)
LCD display: 7-digit, height of figures 7 mm
Communication protocol: ABB i-bus®, EIB (European Installation Bus) / KNX
Transmission medium: Twisted twin-core cable
Ambient temperature (operation): -40 … +55°C
Housing material:
– Front window and housing Polycarbonate
– Terminal area Glass-fibre-reinforced polycarbonate
Type of protection: IP 20
Dimensions (H x W x D): 97 x 122.5 x 64.8 mm
