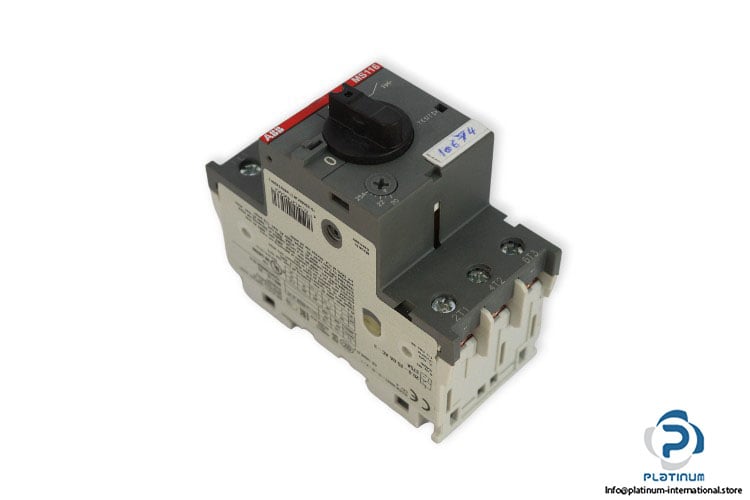

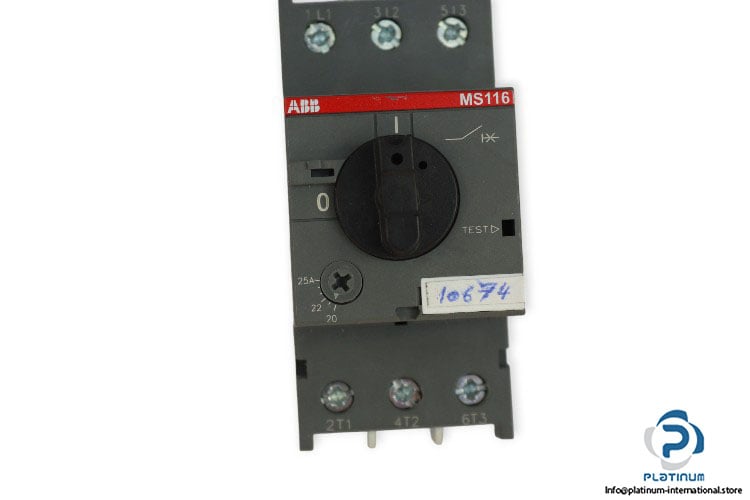

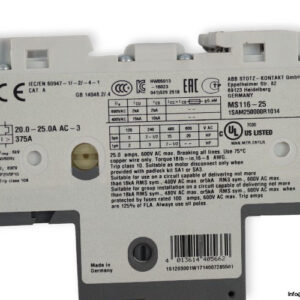

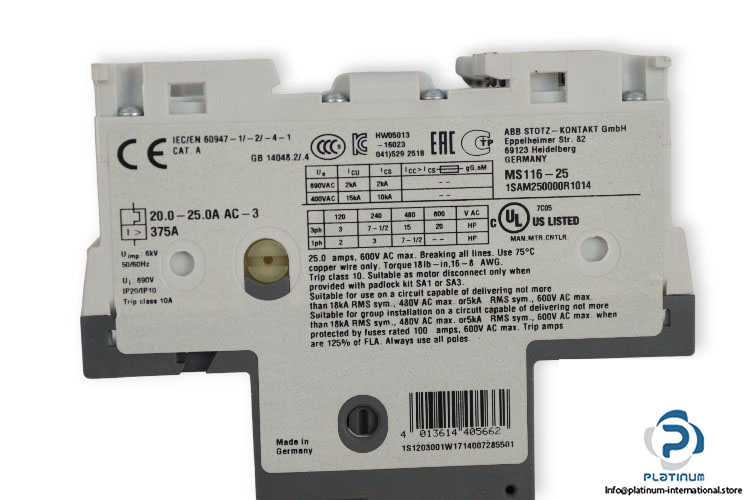

ABB MS116-25 Manual Motor Starter

Manufacturer: ABB
Type: Manual Motor Starter
Model: MS11625
Alternative Model: 1SAM250000R1014

Rated Operational Voltage: 690 V AC
Rated Operational Current: 25 A
Rated Insulation Voltage: 690 V
Rated Instantaneous Short-Circuit Current Setting (Ii): 375 A
Frequency: 50 … 60 Hz
Sitting Range: 20 … 25 A
Rated Impulse Voltage (Uimp): 6 kV
Rated Operational Power AC-3: 11 kW
Rated Service Short-Circuit Breaking Capacity (Ics):
230 / 400 V AC: 10 kA
440 / 500 V AC: 3 kA
690 V AC: 2 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
230 / 400 V AC: 16 kA
440 V AC: 15 kA
500 V AC: 10 kA
690 V AC: 3 kA
Number of Poles: 3-Pole
Actuator Type: Rotary Handle (ON / OFF)
Protection Class: IP20
Ambient Temperature: -25 … 70 °C
Dimensions: 97.8 x 45 x 85.4 mm
