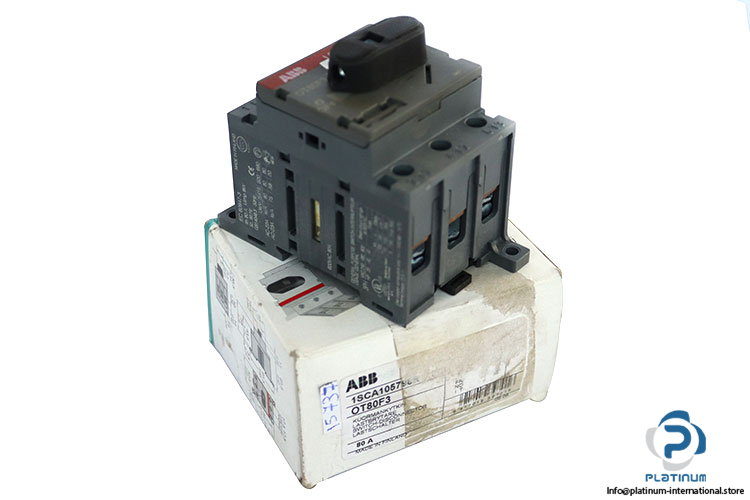

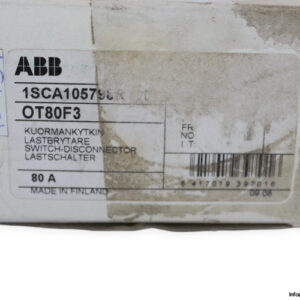

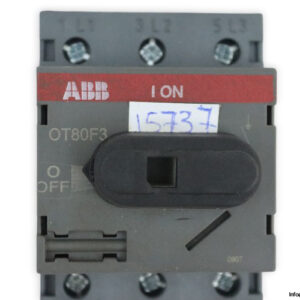

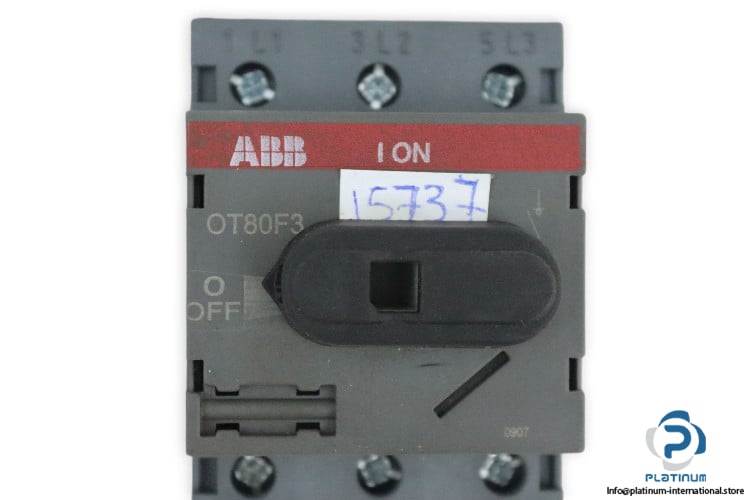

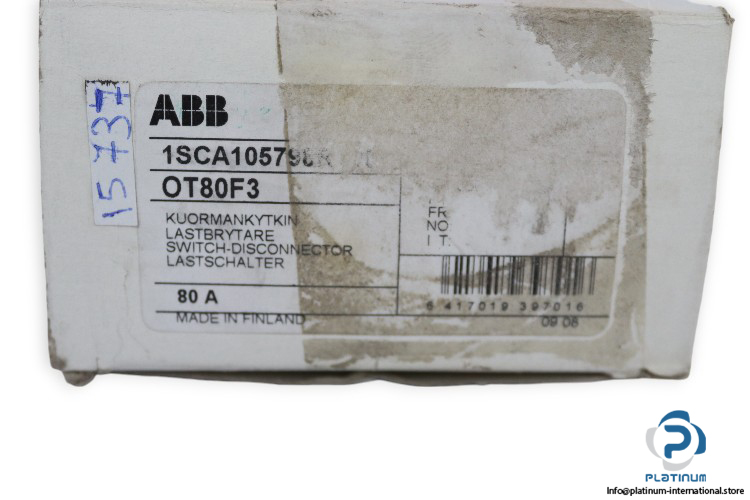

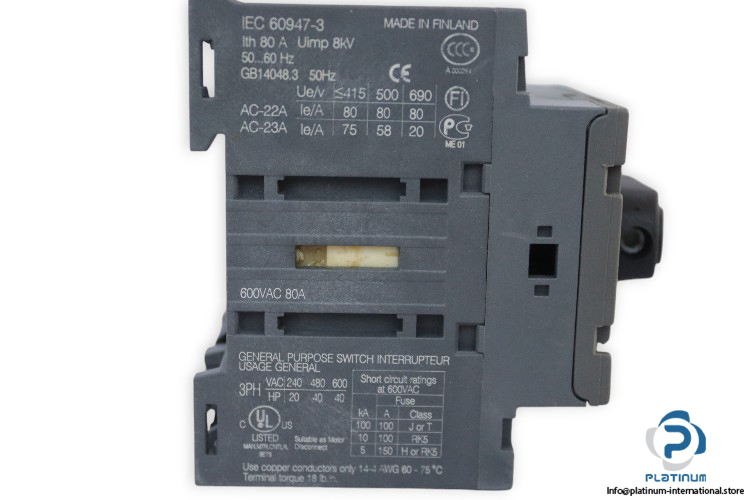

ABB OT80F3 Switch-Disconnector

anufacturer: ABB
Type: Circuit Breaker
Model: OT80F3
ID No.: 1SCA105798R

Rated Operational Voltage Main Circuit: 750 V
Rated Insulation Voltage (Ui): 750 V
Rated Impulse Withstand Voltage (Uimp): 8 kV
Current Rating: 80 A
Frequency: 50 … 60 Hz
Power Loss at Rated Operating Conditions per Pole: 4.5 W
Handle Type: Knob
Operating Mode: Front operated
Thermal current (Ith): 80 A
No. of poles: 3
Main contact: 1 NO
Rated Short-Circuit Making Capacity (Icm): @690 V (2.1 kA)
Rated Short-time Withstand Current Low Voltage (Icw): for 1s (1.5 Ka)
Rated Conditional Short-Circuit Current (Inc): (100 A fuse, 500 V) 100 kA
Protection degree: IP20
Terminal Type: Screw Terminals
Pollution Degree: 3
Standard: IEC 60947-3
Dimensions: 52.5 x 91.5 x 72.5 mm
