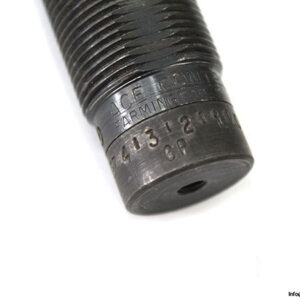

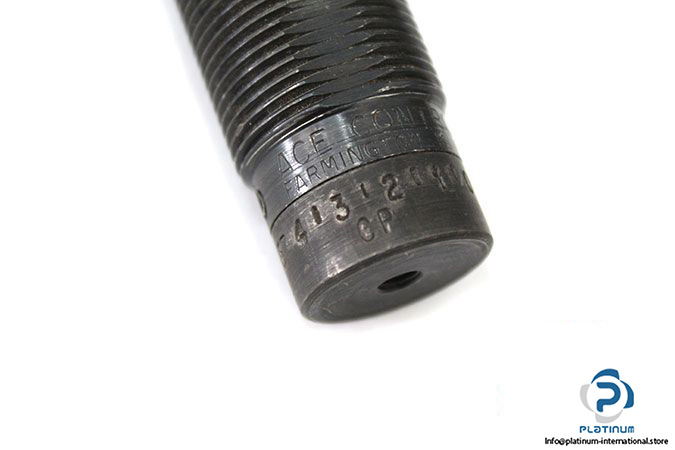

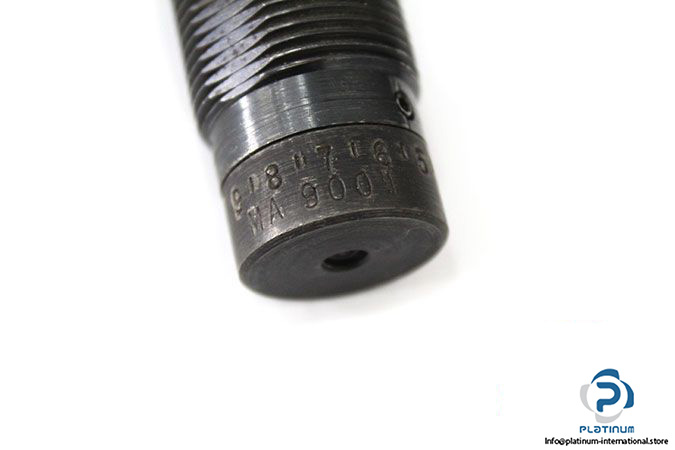

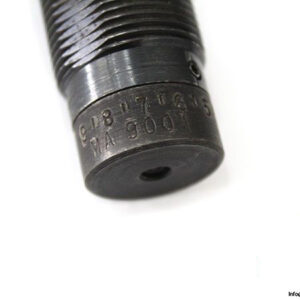

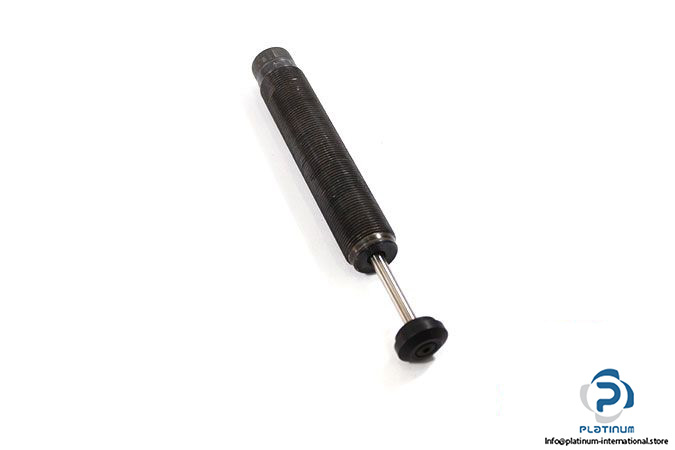

ACE Controls MA 900M Shock Absorber

Manufacturer: ACE CONTROLS

Type: ADJUSTABLE SHOCK ABSORBER

Model: MA 900 M

Material

  Shock Absorber Body: Nitride hardened steel

  Locknut: Steel with black oxide finish

  Piston Rod: Hardened, stainless steel

  Button Options: Steel

Size: Miniature

Energy Capacity: 900 lbs/Cycle

Impact velocity range: 0,15 … 4,45 m/s

Max. Effective Weight: 4500 lbs

Min. Effective Weight: 30 lbs

Mounting Options: Threaded Body

Stroke Length: 1.58 in ( 40.1 mm )

Rod Reset Time: 0.4 s

Max. Return Force: 35 N

Min. Return Force: 10 N

Return Method: Spring

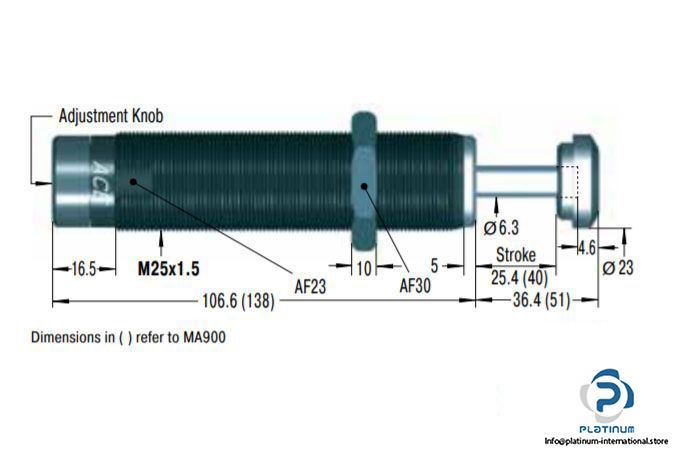

Diameter and Step for Threaded Surface: M25 x 1.5

Temperature Range: 0 ….. 66 ^°C

Weight: 0.40 kg
