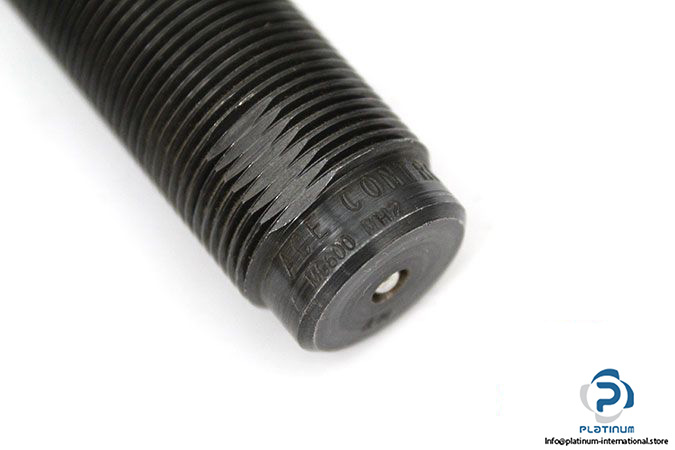

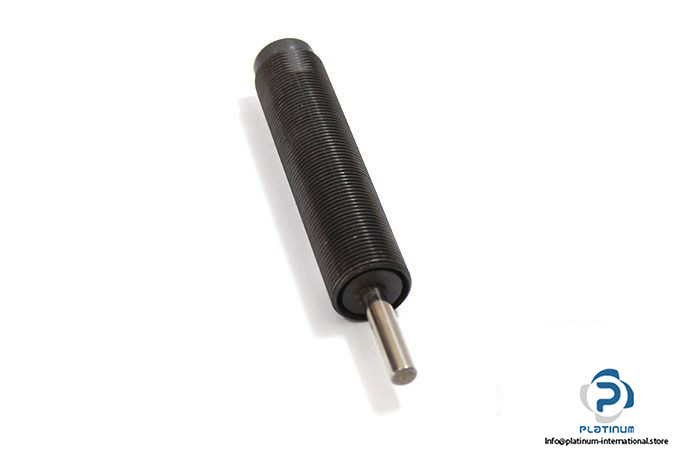

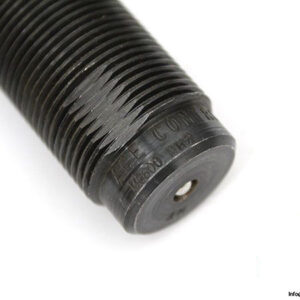

ACE Controls MC600 MH2 Shock Absorber

Manufacturer: ACE CONTROLS

Type: SELF COMPENSATING SHOCK ABSORBER

Series: MC

Model: MC600 MH2

Material

     Piston Rod: Hardened, stainless steel

     Locknut: Steel with black oxide finish

     Shock absorber body: Steel nitride hardened steel

Energy capacity per cycle:  1,200 in-lbs/cycle

Energy capacity per hour: 600,000 in-lbs/h

Min. Effective weight: 880 lbs

Max. Effective weight: 5,000 lbs

Min. Return Force:  1.00 lbs

Max. Return Force:  2.00 lbs

Return Time:  0.6 s

Max. Side Load Angle:  2 °

Impact velocity range: 0.25 ft/sec … 1.15 ft/sec

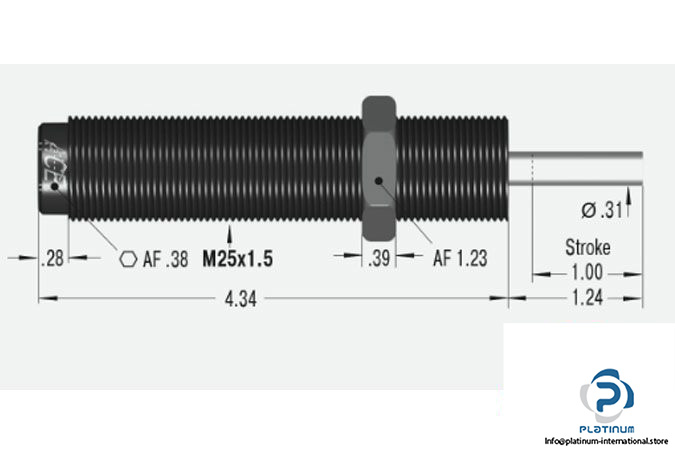

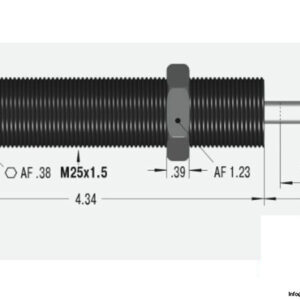

Stroke Length: 25.4 mm

Rod Diameter: 7.8 mm

Total length: 148.5 mm

Diameter and Step for Threaded Surface: M25 x 1.5

Temperature Range: 32 °F … 150 °F

Weight: 0.26 kg
