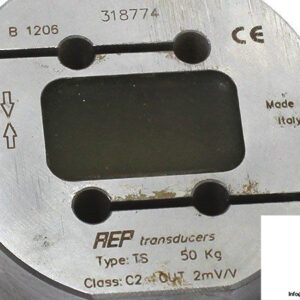

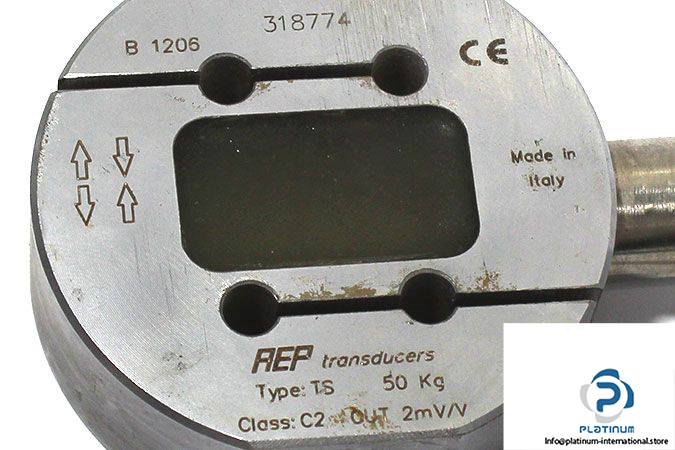

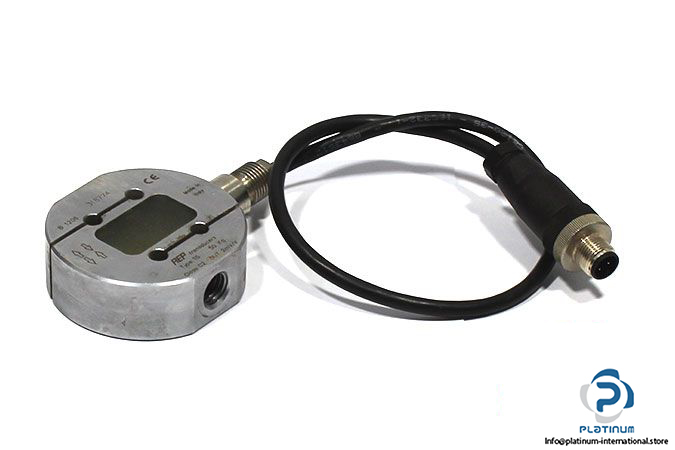

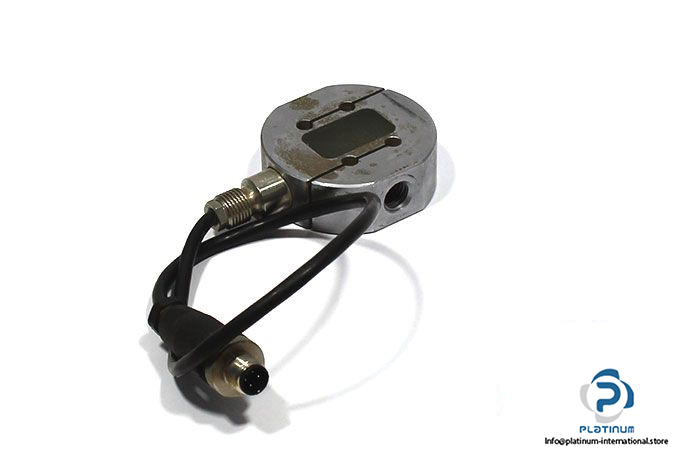

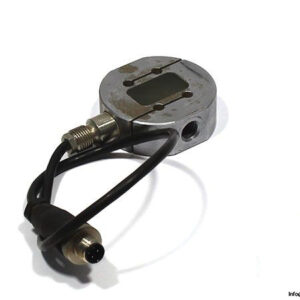

AEP TS MAX 50 KG Compression Load Cell

Manufacturer: AEP

Type: Compression Load Cell

Model: TS

Maximum weight limit (E max): 50 kg

Nominal Sensitivity: 2 mV/V

Recommended Supply Voltage: 10 VDC

Input Resistance: 420 ± 20 Ω

Output Resistance: 350 ± 2 Ω

Temperature Nominal Range: -10…40 °C

Cable Length: 355 mm

Connection: 4-pin

Material: Stainless Steel

Class: C2

Protection Class: IP65

Weight: 0.42 kg
