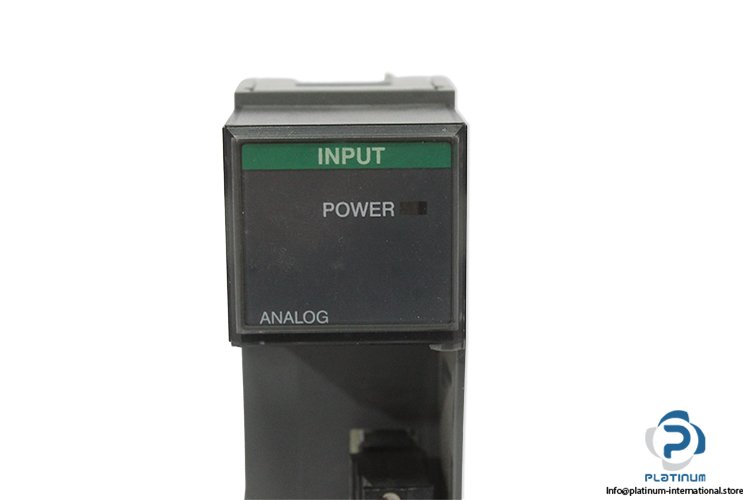

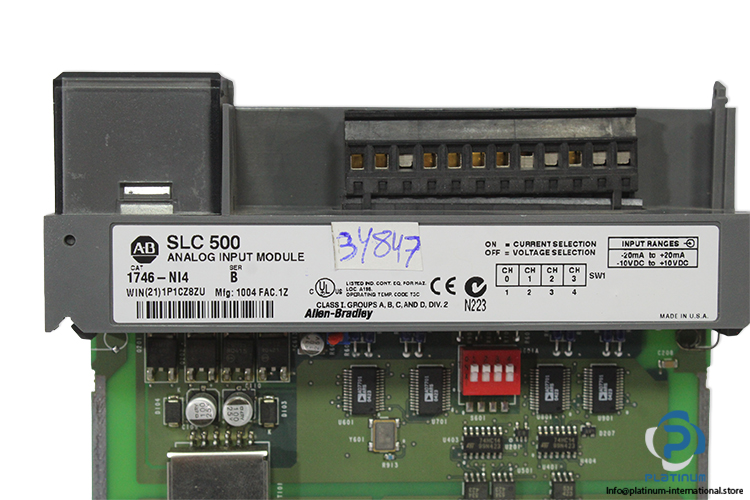

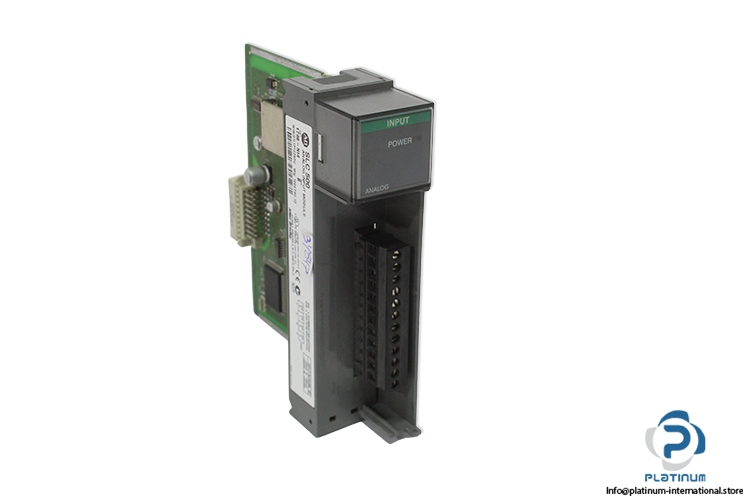

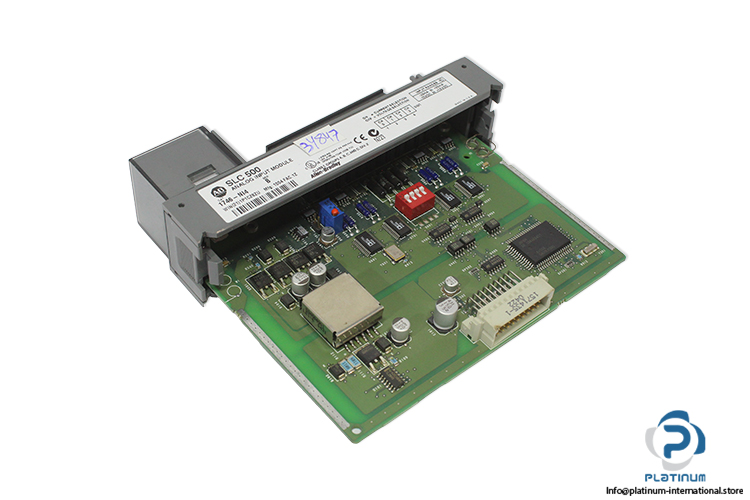

Allen-Bradley 1746-NI4 B Analog Input Module

Name: ALLEN-BRADLEY 1746-NI4 B ANALOG INPUT MODULE
SKU: 1090701
Price: 222.22 USD
Availability: InStock

allen-bradley-1S746-NI4-B-analog-input-module-(used)

allen-bradley-1S746-NI4-B-analog-input-module-(used)-1

allen-bradley-1S746-NI4-B-analog-input-module-(used)-2

allen-bradley-1S746-NI4-B-analog-input-module-(used)-3

allen-bradley-1S746-NI4-B-analog-input-module-(used)-4

allen-bradley-1S746-NI4-B-analog-input-module-(used)-5

allen-bradley-1S746-NI4-B-analog-input-module-(used)-6

Kullanılmış

Stokta1 birimSevkiyata hazır

222,22$

Analog Giriş Modülü Allen-Bradley 1746-NI4 analog giriş modülü, SLC 500 PLC sistemleri için tasarlanmış olup endüstriyel otomasyon ve süreç kontrolü için yüksek hassasiyetli 16-bit dönüşüm ile akım ve voltaj girişlerini destekler.

Üretici

ALLEN-BRADLEY

SKU

1090701

Kategori

Others

Koşul

Kullanılmış

1746 500 Allen Analog Automation Bradley Card Control Industrial Input Module NI4 PLC Signal SLC

Paylaş

Geniş Stok

Küresel Nakliye

Uzman Destek

Kalite Garantili

Allen-Bradley 1746-NI4 Analog Input Module

The Allen-Bradley 1746-NI4 Analog Input Module is a reliable industrial automation component designed for the SLC 500 PLC family. This module provides accurate analog signal acquisition with high resolution and stable performance, making it suitable for monitoring sensors, transmitters, and process control signals in industrial automation systems.

Manufacturer: Allen-Bradley

Type: Analog Input Module

Model: 1746 NI4

Series: B

Family: SLC 500

Code: WIN(21)1P1CZ8ZU / 1004 FAC.1Z

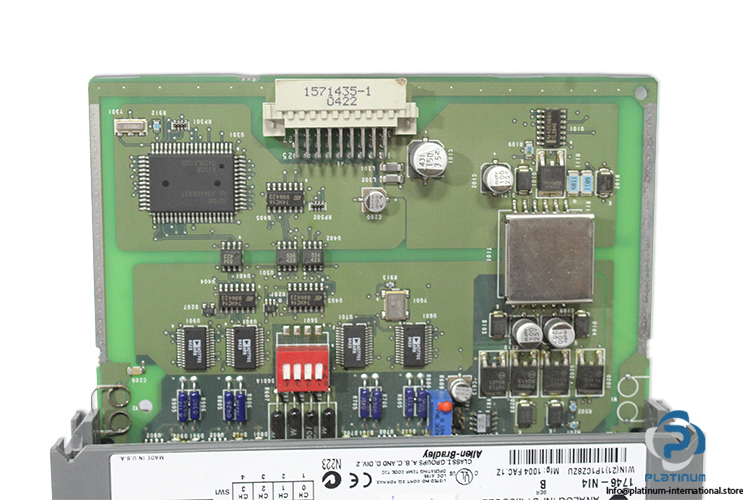

Adapter Code: 1571435-1 U422

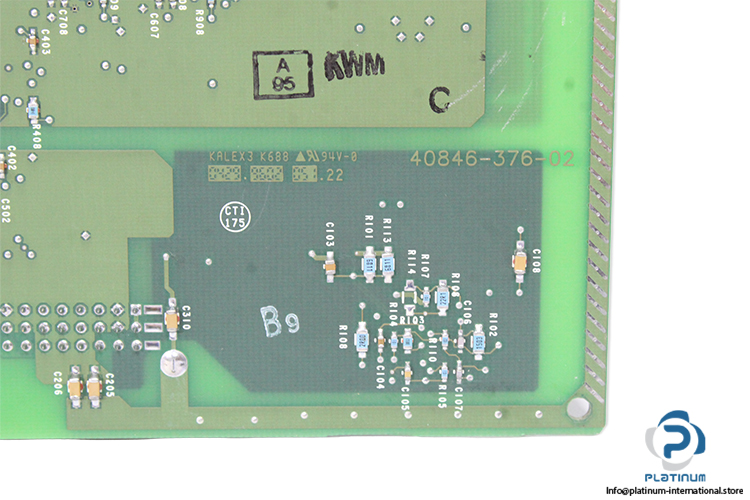

Board Code: 40846-376-02

Current-Loop Input

Voltage Input

Input Range (Normal Operation)	-20 / 20 mA
Absolute Maximum Input Current	-30 / 30 mA
Absolute Maximum Input Voltage	±7.5 V DC / 7.5 V AC RMS
Input Impedance	250 ohm
Full Scale	20 mA
Converter Resolution	16 bit
No. of Analog Input Channels (AI)	4
Conversion Method	Delta“Sigma Modulation
Input Range	-10 to +10 VDC “ 1 LSB
Input Impedance	760 Kohm
Full Scale	10 VDC
Backplane Current Consumption at 5 VDC / 24 VDC	35 mA / 85 mA
Channel Bandwidth	10 Hz
Communication Format	16 Bit Two™s Complement Binary
Field Wiring to Backplane Isolation	500 VDC
Update Time	512 µs for All Channels in Parallel
Recommended Cable	Shielded Belden 8761
Maximum Wire Size	14 AWG (maximum)
Operating Temperature	0 / 60 °C
Recommendation	A trusted choice for upgrading or maintaining Allen-Bradley SLC 500 automation systems, ensuring precise analog signal acquisition and reliable industrial performance.
