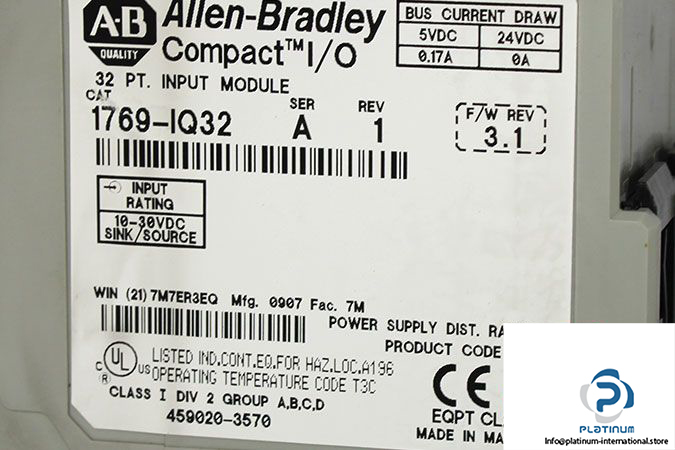

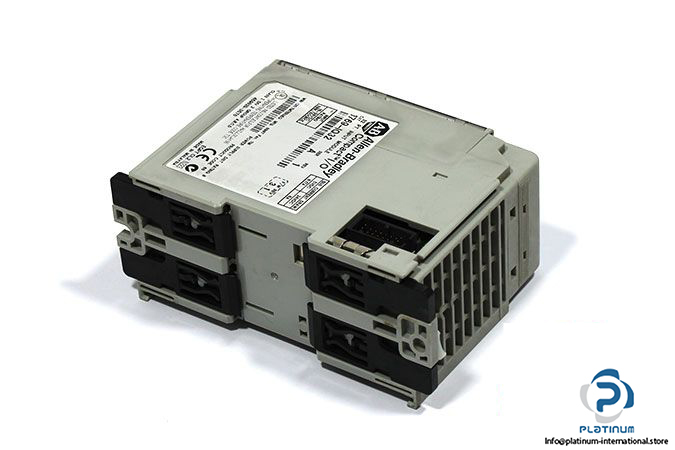

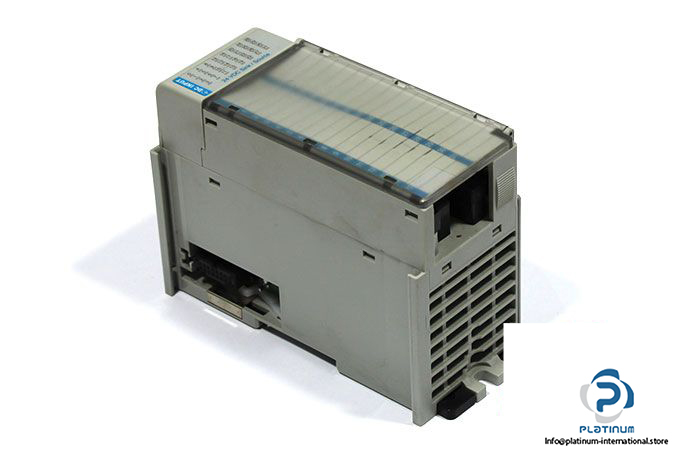

Allen-Bradley 1769-IQ32 Input Module

Manufacturer: Allen-Bradley

Type: Input Module

Model: 1769-IQ32

Part No: 459020-3570

Voltage Category: 24 VDC

Operating Voltage Range: 10…30 VDC

No. of Input: 32

Bus Current Draw, Max: 170 mA at 5V dc (0.85W)

Heat Dissipation, Max: 4.6 Total Watts

Signal Delay: 8 ms

Off-State Voltage, Max: 5 VDC

Off -State Current, Max: 1.5 mA

On -State Voltage, Min: 10 VDC

On-State Current, Min: 2 mA

Vibration: 10…500 Hz

Operating Temperature: 0…60 °C

Dimensions: 118 X 87 X 52.5 mm

Weight: 0.3 kg
