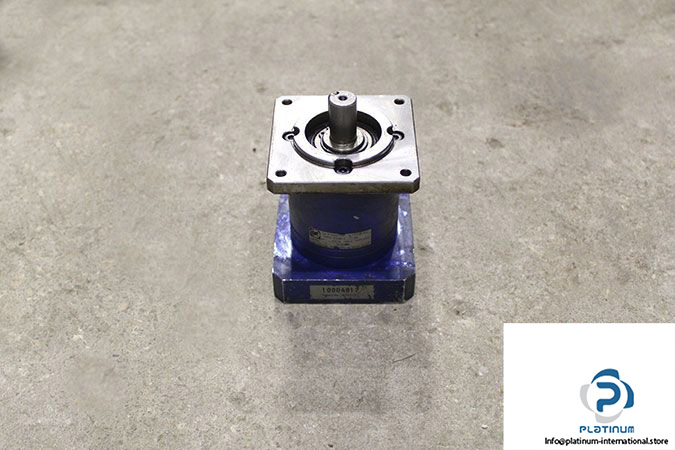

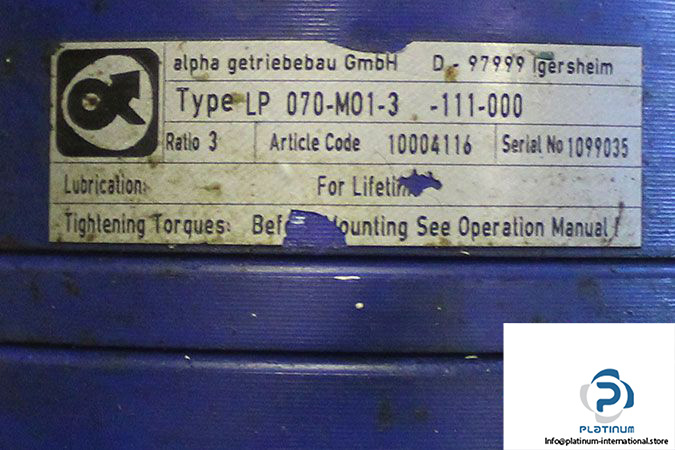

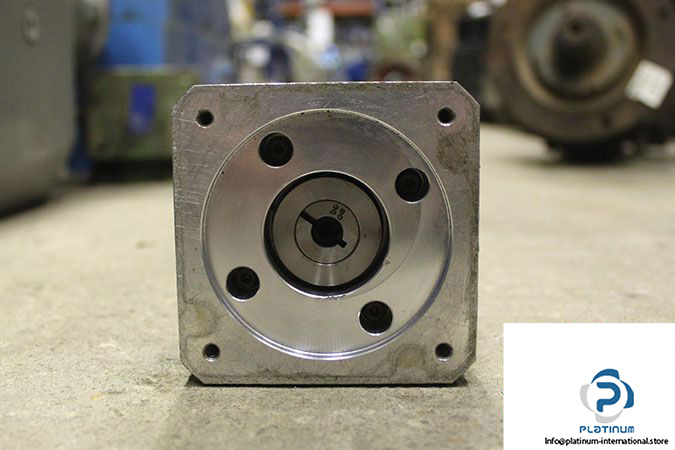

Alpha LP 070-MO1-3 Planetary Gearbox

Manufacturer: Alpha

Type: Planetary Gearbox

Model: LP070-MO1-3

Ratio: 3

Size: 70

Stages: 1-Stage

Max. Acceleration Torque: 32 Nm

Nominal Output Torque: 16.5 Nm

Nominal Input Speed: 3700 rpm

Max. Input Speed: 6000 rpm

Max. Axial Force: 1550 N

Max. Lateral Force: 1450 N

Ambient Temperature: 0…40 °C

Efficiency at Full Load: 97 %

Protection class: IP64

Shaft Diameter (Input): 9 mm

Shaft Diameter (Output): 16 mm

Flange Diameter: 90 mm

Lubrication: Flow Grease

Weight: 2.6 kg
