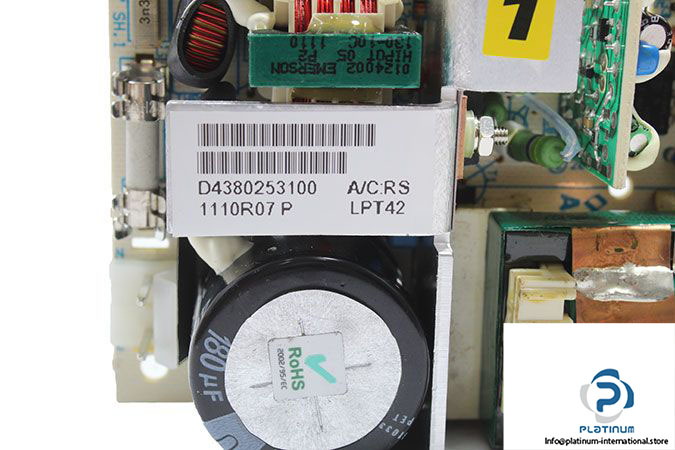

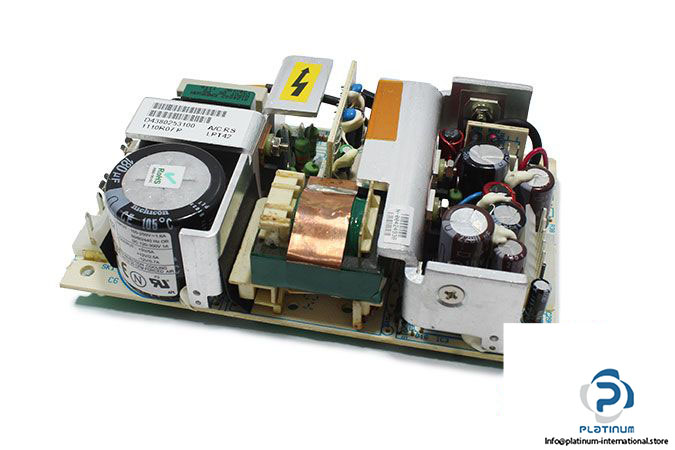

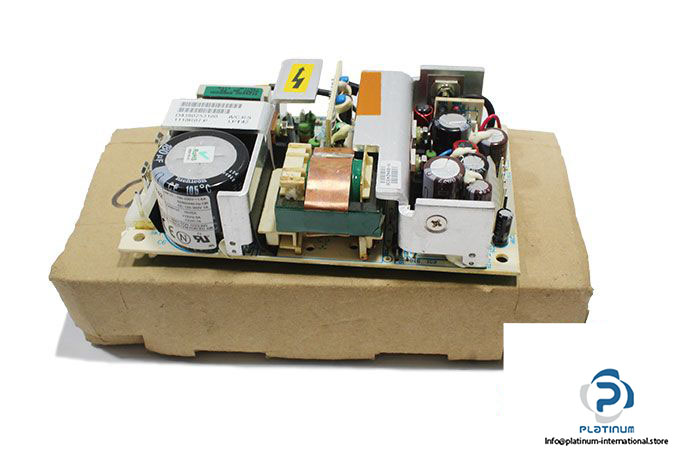

Astec LPT42 Embedded Power

Manufacturer: ASTEC

Type: Embedded Power

Model: LPT42

Part No.: D4380253100

Features:

• Remote sense on main output
• Terminal Block option (-T)
• Built-in EMI filter
• Low output ripple
• Adjustable main output
• Overvoltage protection
• Overload protection

Total Power: 40 – 55 W

Input Voltage: 85 … 264 VAC, 120 … 300 VDC

No. Of Outputs: Triple

Adjustment range: -5

Output Voltage: 5 V, 12 V, -12 V

Min. Load: 0.4 A, 0.2 A

Overvoltage protection: 5.7 … 6.7 VDC

Frequency: 47 … 440 Hz

Temperature: 0 … 50 °C

Dimensions: 127 X 76.2 mm

Weight: 0.28 kg
