ATE GF30/M2 Wire Wound Resistor
Yeni
Stokta1 birimSevkiyata hazır
Wire Wound Resistor
ATE GF30 M2 Wire Wound Resistor with 820 Ω ±5% tolerance, 30 W rating, and aluminum anodized housing for heat dissipation. Suitable for load testing, braking, power electronics, and automation circuits.
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

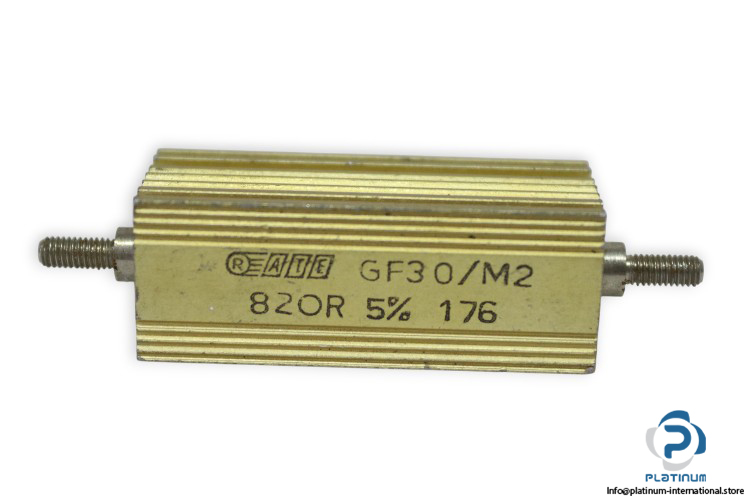

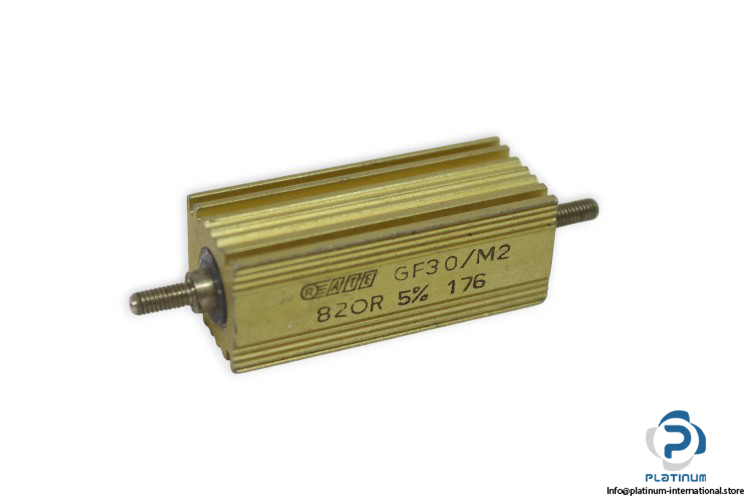

ATE GF30 M2 Wire Wound Resistor
The ATE GF30 M2 Wire Wound Resistor is designed for demanding industrial and electronic applications requiring precision, stability, and effective heat dissipation. With its extruded aluminum housing and robust gold anodized finish, it ensures reliable performance in load testing, braking systems, power electronics, and automation circuits.
Manufacturer: ATE
Type: Wire Wound Resistor
Model: GF30 M2
Ref. No.: 82OR 5% 176
Series: GF
| Applications | Load testing, Motor drives and braking, Power electronics (inverters, UPS, converters), Industrial automation circuits, Snubber or balancing resistor in capacitor banks |
| Resistance Value | 820 Ω |
| Tolerance | ±5% |
| Code/Batch | 176 |
| Housing | Extruded aluminum, gold anodized for heat dissipation |
| Power Rating | Typically 30 W |
| Mounting | Through screws/bolts, M2 threaded terminations |
| Temperature Coefficient | ±100 ppm/°C |
| Operating Temperature | -55 °C to +250 °C |
