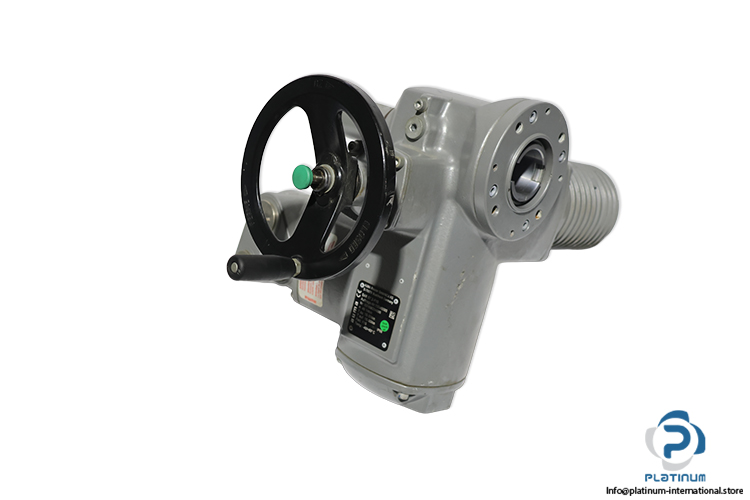

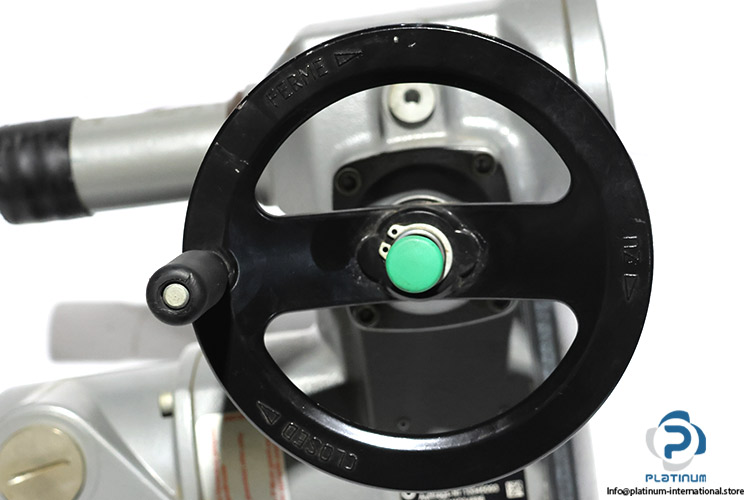

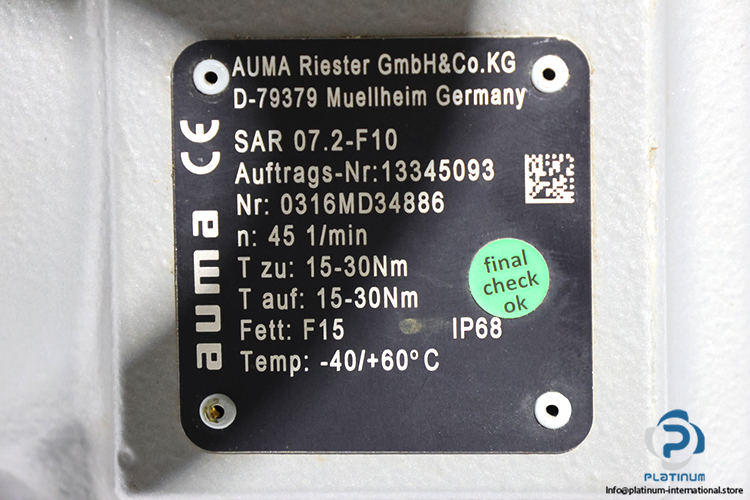

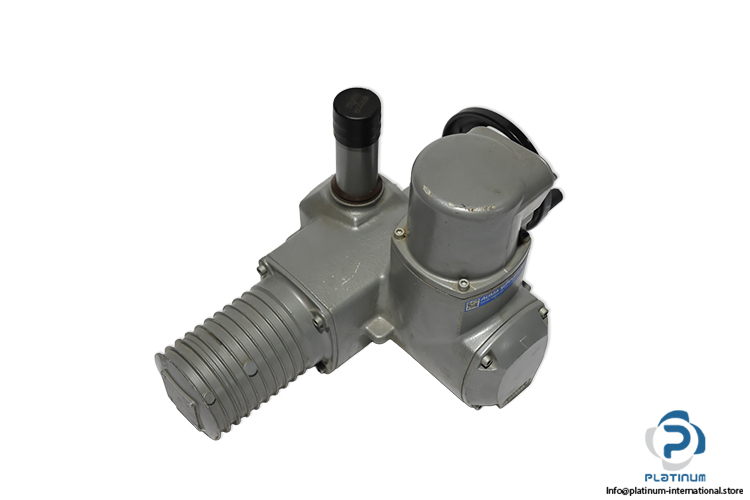

Auma SAR 07.2-F10 Multi-Turn Actuator
| Part-Nr | 13345093 |
| REF Nr | 0316MD34886 |

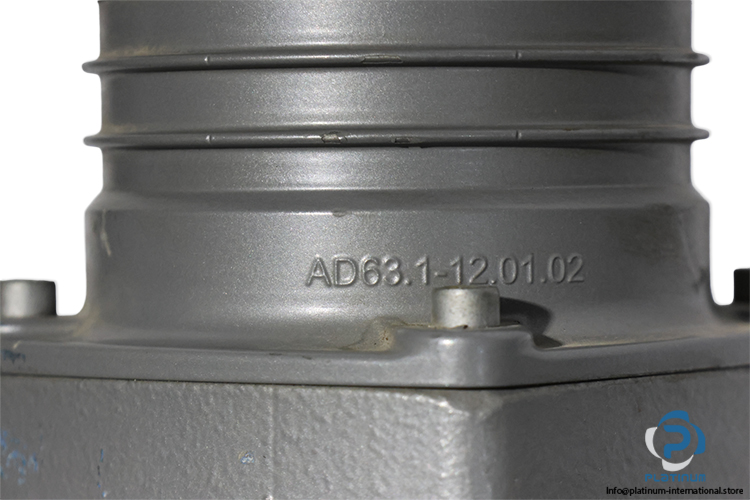

| Code | AD63.1-12.01.02 |
| Size of Actuator | 07,2 |
| Speed | 45 1/min |
| Torque Range in Direction Close | 15-30 Nm |
| Torque Range in Direction Open | 15-30 Nm |
| Lubricant Type | F15 |
| Protection [IP] | 68 |
| Ambient Temperature Range [°C] | -40…60 |

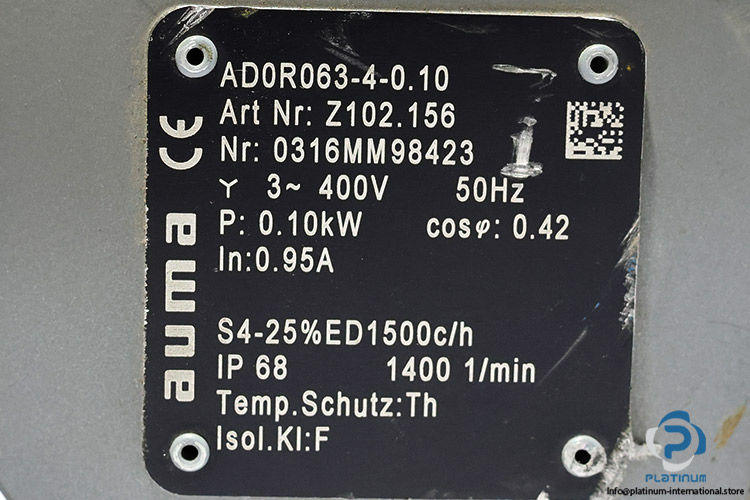

| Motor Type | AD0R063-4-0.10 |
| Article Number, Motor | Z102.156 |
| Ref Nr, Motor | 0316MM98423 |
| Mains Voltage [V] | 400 Star |
| Mains Frequency [Hz] | 50 |
| Rated Current [A] | 0,95 |
| Nominal Power [kW] | 0,10 |
| Power Factor | 0,42 |
| Type of Duty | Short-Time Duty S4-25 Min |
| Enclosure Protection [IP] | 68 |
| Speed [rpm] | 1400 |
| Thermistors Protected | Th |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101342 |
| Weight | 20,5 |
