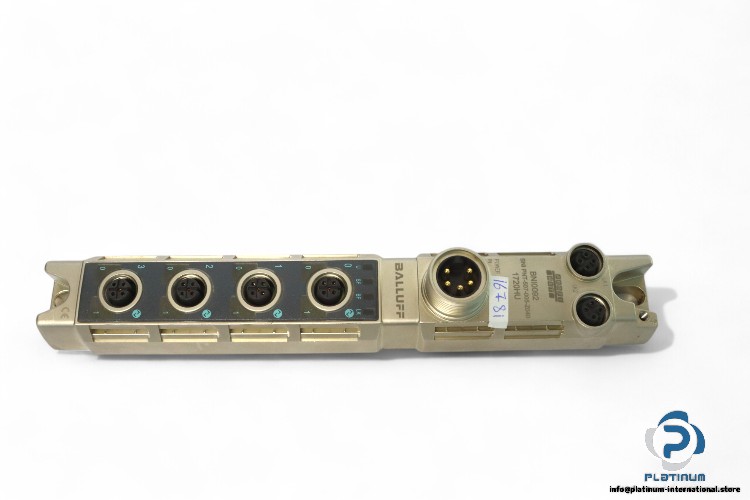

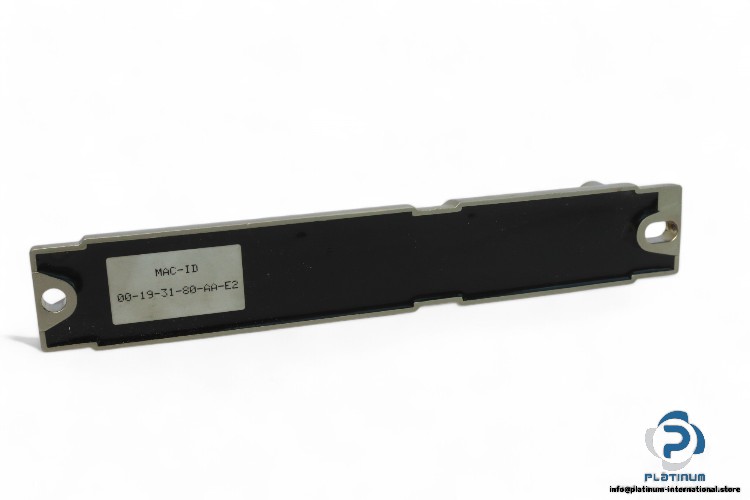

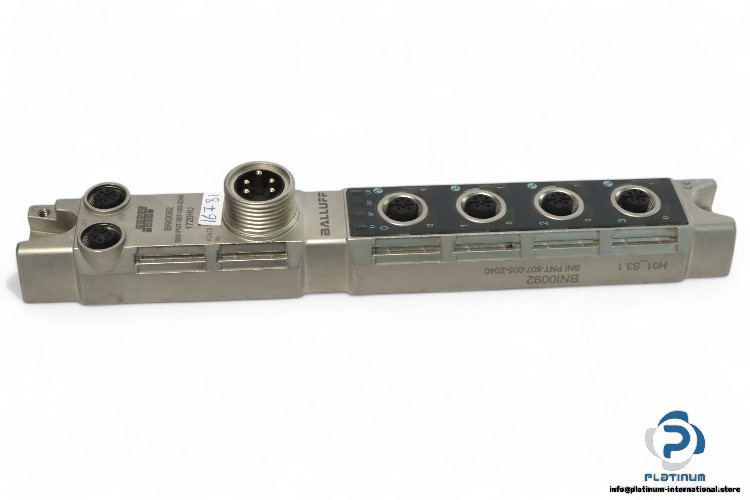

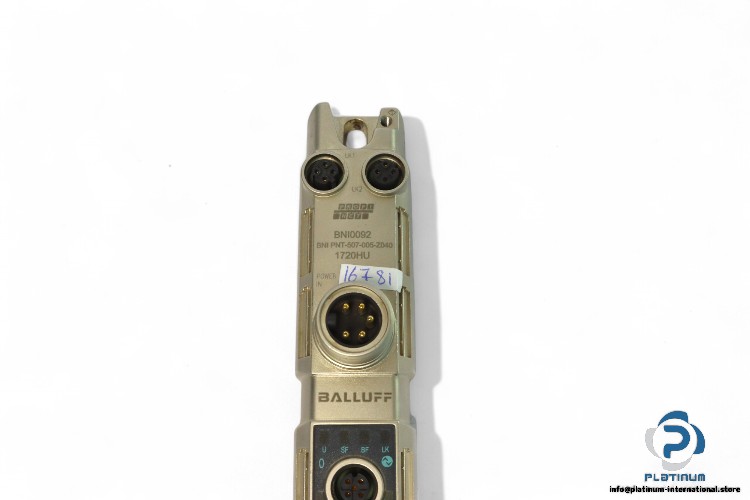

Balluff BNI0092 Network Block

Network Block (Model: BNI0092)

Manufacturer: BALLUFF

The BNI0092 Network Block by BALLUFF is a robust industrial-grade IO-Link Master module designed for efficient communication in industrial automation networks. Operating at a voltage range of 18…30.2 V DC with a maximum output current of 2 A, this network block ensures reliable performance in harsh environments.

Featuring 8 PNP digital inputs and 8 PNP digital outputs, along with a Profinet I/O interface, the BNI0092 provides seamless integration into control systems. Its IP67-rated zinc die-cast housing guarantees durability, even under extreme operating temperatures ranging from -40 to 70 °C.

Compact and easy to install with a 2-hole screw mount, this network block is an ideal choice for demanding industrial applications requiring precise and reliable connectivity.

• Manufacturer: BALLUFF
• Model: BNI0092
• Part No.: BNI PNT-507-005-Z040 1720HU
• Rated Operating Voltage (Ue): 24 V DC
• Operating Voltage (Ub): 18…30.2 V DC
• Output Current Max.: 2 A
• Transfer Rate: 10/100 Mbit/s
• IO-Link Function: Master
• Connection (COM 1): M12x1-Female, 4-pin, D-coded
• Connection (COM 2): M12x1-Female, 4-pin, D-coded
• Connection (Supply Voltage IN): 7/8″-Male, 5-pin
• Digital Inputs: 8x PNP, Type 3
• Digital Outputs: 8x PNP
• Interface: Profinet I/O
• Mounting Ground Strap: M4
• Mounting Part: 2-hole screw mount
• Degree of Protection: IP67
• Housing Material: Zinc, Die casting
• Ambient Temperature: -40…70 °C
• Dimension: 37 x 32.6 x 224 mm
