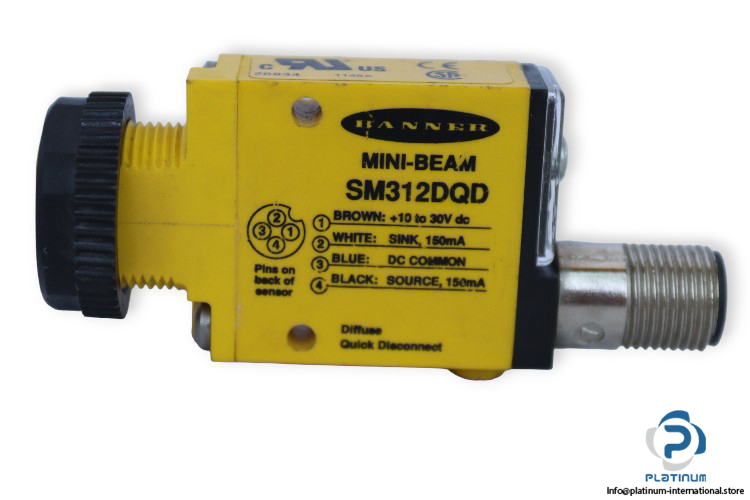

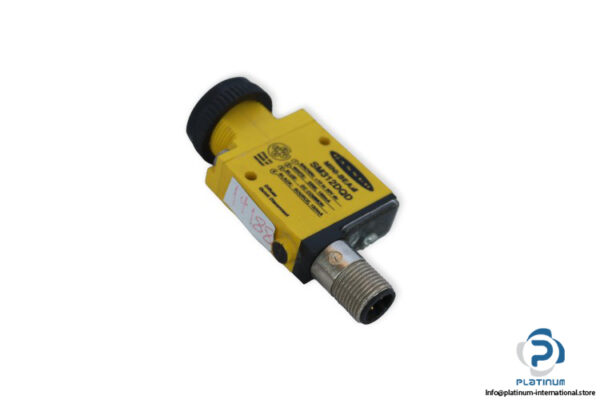

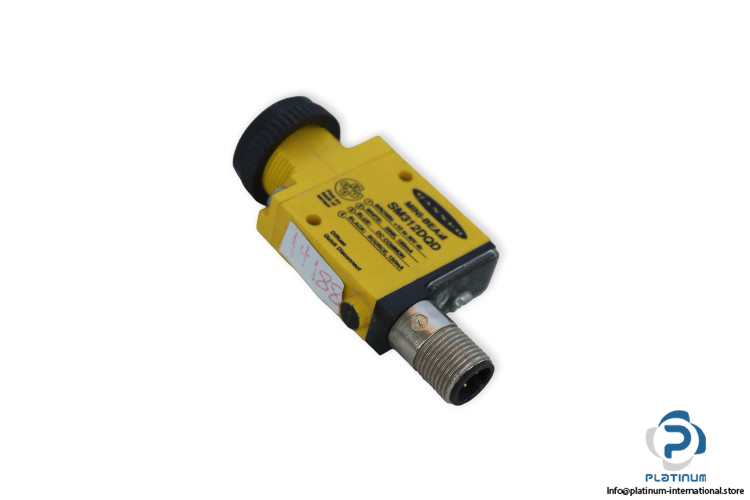

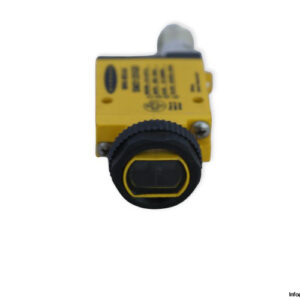

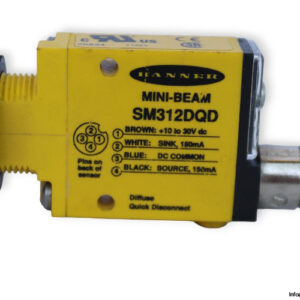

Banner SM312DQD Diffuse Photoelectric Sensor

Manufacturer: BANNER
Type: Diffuse Photoelectric Sensor
Model: SM312DQD

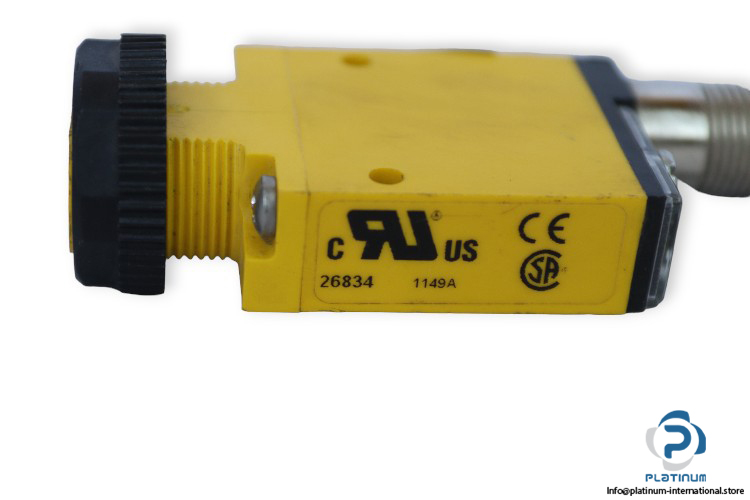

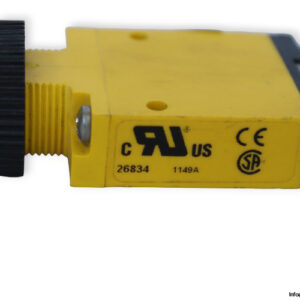

Part No.: 26834

Sensing Range: 0 … 380 mm
Operating Voltage: 10 … 30 V DC
Rated Load Current: 150 mA
Contact: PNP/NPN Normally Open (NO)
Wave Length: 880 nm
Light Type: IR
Sensor Design: Rectangular with Thread, Mini Beam

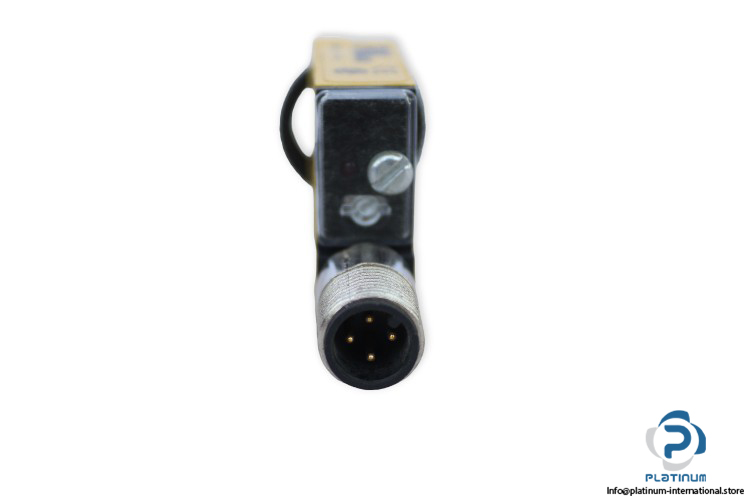

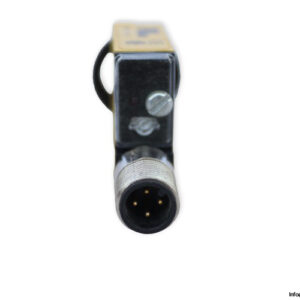

Connection Type: PVC Male Connector M12x1, 4-Pin
Housing Material: Plastic, Thermoplastic, Yellow
Protection Class: IP66
Operating Temperature: -30 … 60 °C

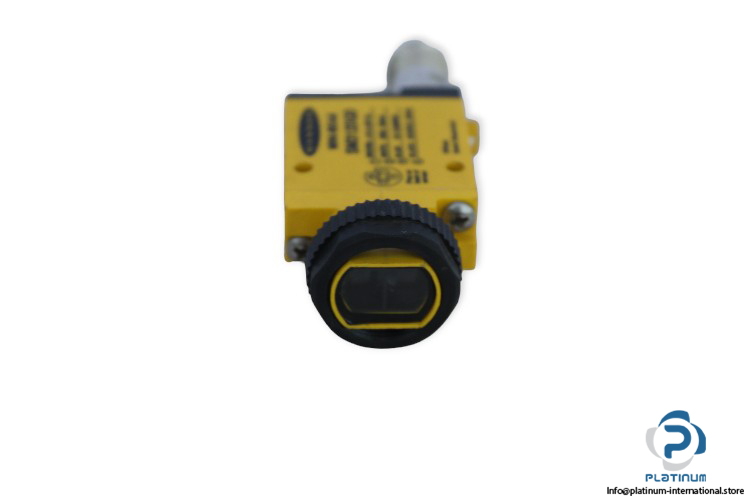

Lens Diameter: 18 mm
Dimensions: 30.7 x 53.3 x 12.2 mm
