Beckhoff KL 1154 BUS Terminal
Kullanılmış
Stokta2 ünitelerSevkiyata hazır
Bus Terminal
Beckhoff KL1154 digital input bus terminal with 4 inputs, 24 V DC operation, electrical isolation, and IP20 protection, designed for flexible automation integration.
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

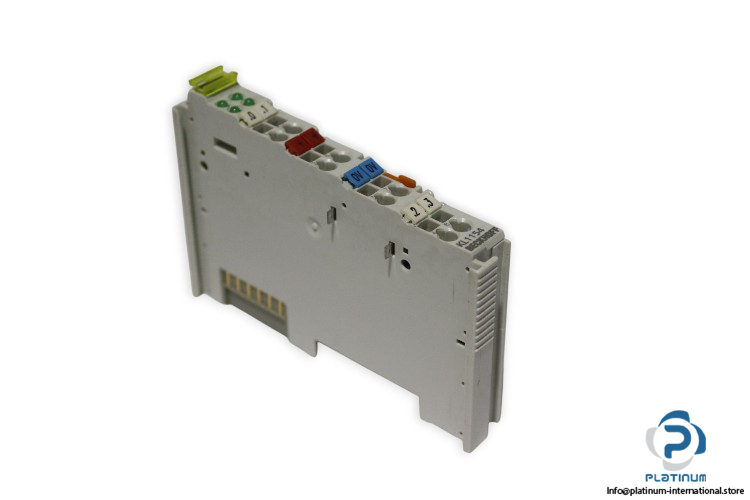

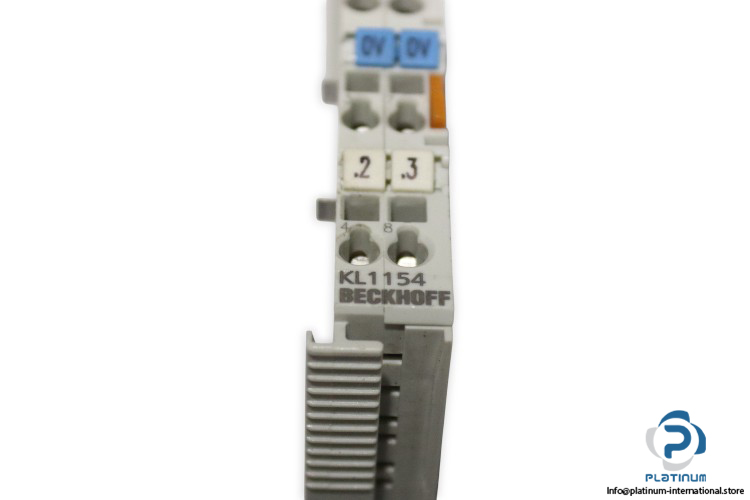

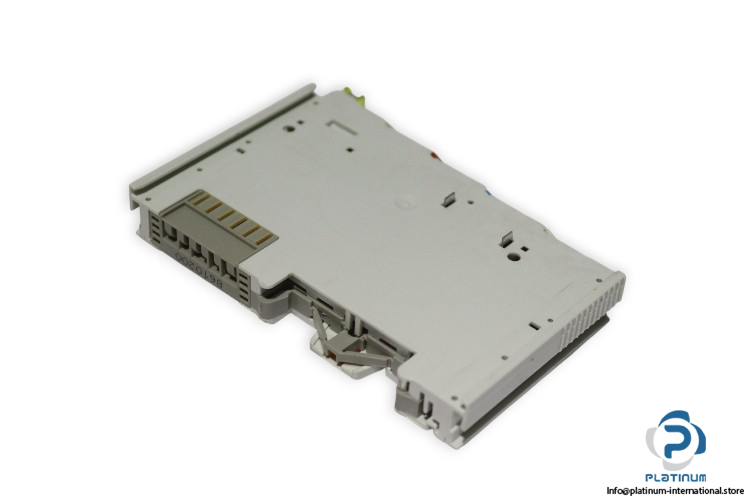

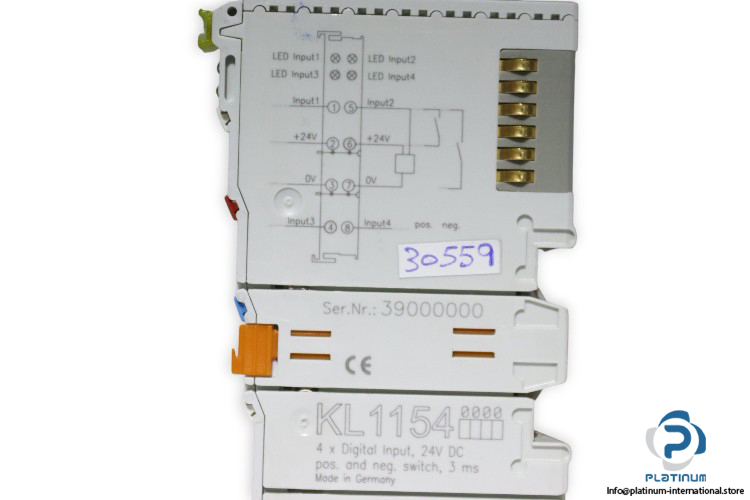

Beckhoff KL1154 Bus Terminal
The Beckhoff KL1154 is a digital input bus terminal from the KL1xxx family. It provides reliable 2-/3-wire connection technology, designed for flexible integration in automation systems. With four inputs, electrical isolation, and robust environmental resistance, it ensures dependable operation in industrial applications.
Manufacturer: Beckhoff
Type: Bus Terminal
Model: KL1154
Serial No.: 39000000
| Family | KL1xxx |
| Connection Technology | 2-/3-wire |
| Specification | Positive/Ground Switching |
| Number of Inputs | 4 |
| Nominal Voltage | 24 V DC (-15 %/+20 %) |
| œ0 Signal Voltage | 7.6 / 17.4 V |
| œ1 Signal Voltage | 0 / 7 V and 18 / 30 V |
| Input Filter | Typ. 3.0 ms |
| Input Current | Typ. 5 mA |
| Current Consumption K-bus | Typ. 8 mA |
| Electrical Isolation | 500 V (K-bus/field potential) |
| Bit Width in Process Image | 4 inputs |
| Operating Temperature | 0 / +55 °C |
| Relative Humidity | 95 %, no condensation |
| Vibration/Shock Resistance | Conforms to EN 60068-2-6 / EN 60068-2-27 |
| Protection Rating / Installation Position | IP20 / Variable |
| Wiring | Pluggable wiring for all KSxxxx Bus Terminals |
| Ex Marking | II 3 G Ex nA IIC T4 Gc |
