Beckhoff KL 9185 Potential Distribution Terminal
Kullanılmış
Stokta1 birimSevkiyata hazır
29,99$
Potential Distribution Terminal
Beckhoff KL9185 terminal with 8 separate potentials, 2 points per potential, 10 A max current load, 500 V isolation, IP20 rating, and compact 12 x 100 x 68 mm design.
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

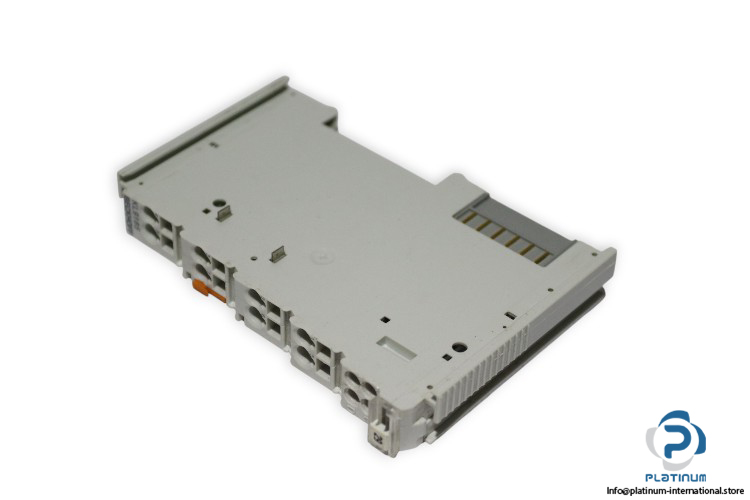

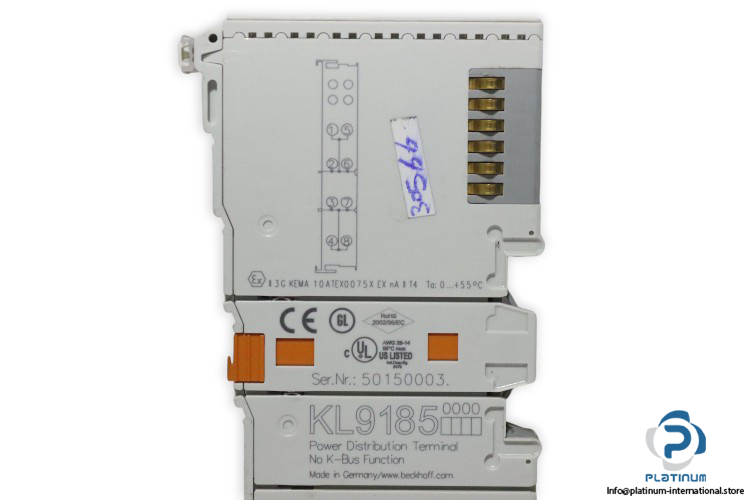

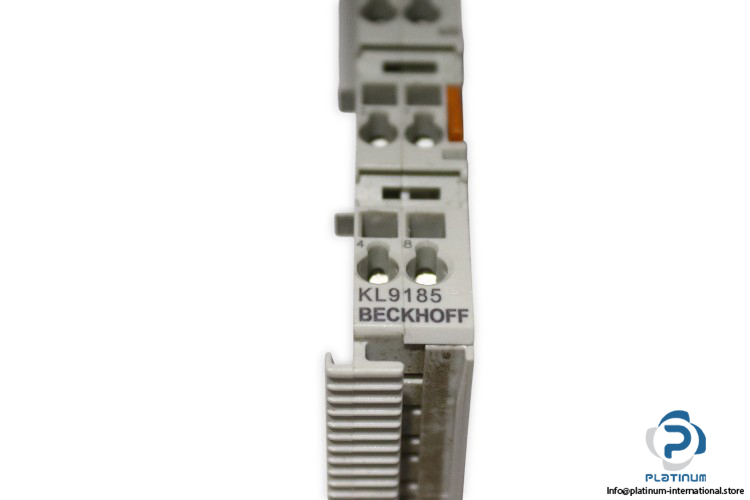

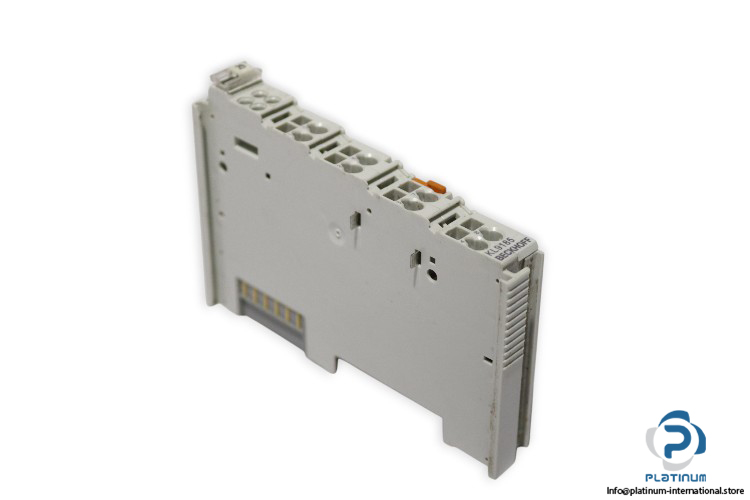

Beckhoff KL9185 Potential Distribution Terminal
The Beckhoff KL9185 is a high-quality potential distribution terminal designed for reliable industrial automation. It provides multiple separate potentials with robust current load handling, ensuring secure and efficient field connections in demanding environments.
Manufacturer: Beckhoff
Type: Potential Distribution Terminal
Model: KL9185
Serial No.: 50150003
| Family | KL9xxx |
| Technology | Potential Distribution Terminal |
| Number of Separate Potentials | 8 |
| Terminal Points per Potential | 2 |
| Current Load | Max. 10 A |
| Electrical Isolation | 500 V (E-bus/field potential) |
| Operating Temperature | -25 / +60 °C |
| Relative Humidity | 95 % |
| Vibration/Shock Resistance | EN 60068-2-6 / EN 60068-2-27 |
| EMC Immunity/Emission | EN 61000-6-2 / EN 61000-6-4 |
| Protection Rating / Installation Position | IP20 / Variable |
| Material | Polycarbonate |
| Explosion Proof | Yes |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
