Bosch 0830100486 Magnetic Sensor
Kullanılmış
Stokta1 birimSevkiyata hazır
Magnetic Sensor
BOSCH 0 830 100 486 Magnetic Sensor, ST9 Series, designed for KHZ series actuators. Offers 10“30 V AC/DC operation, IP65/IP67 protection, and high vibration and shock resistance.
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

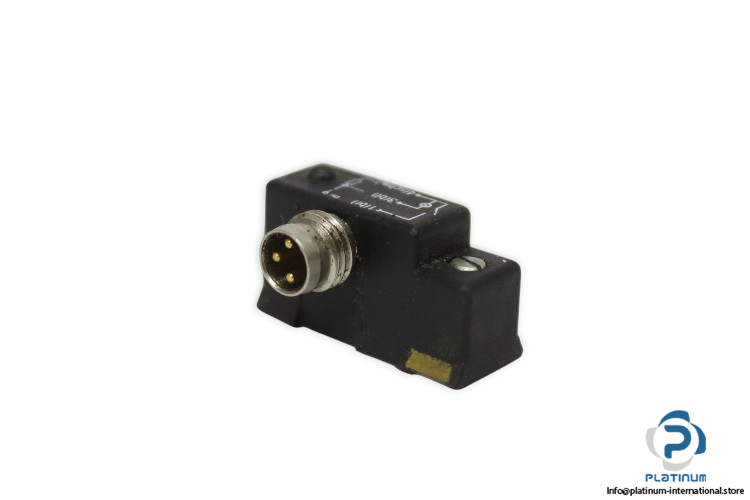

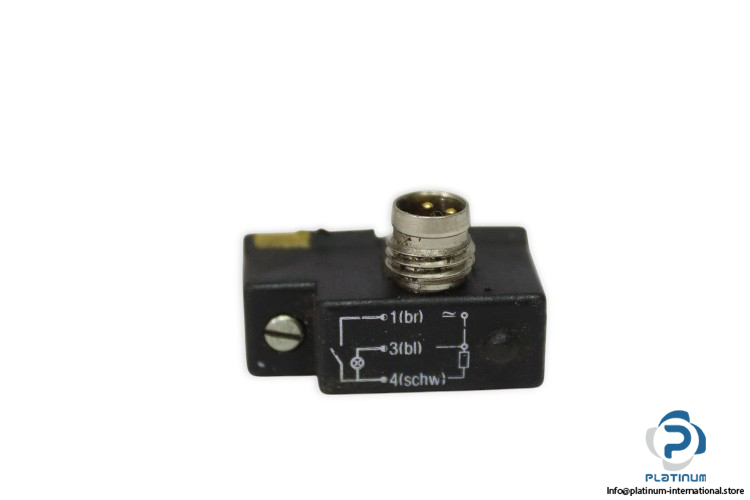

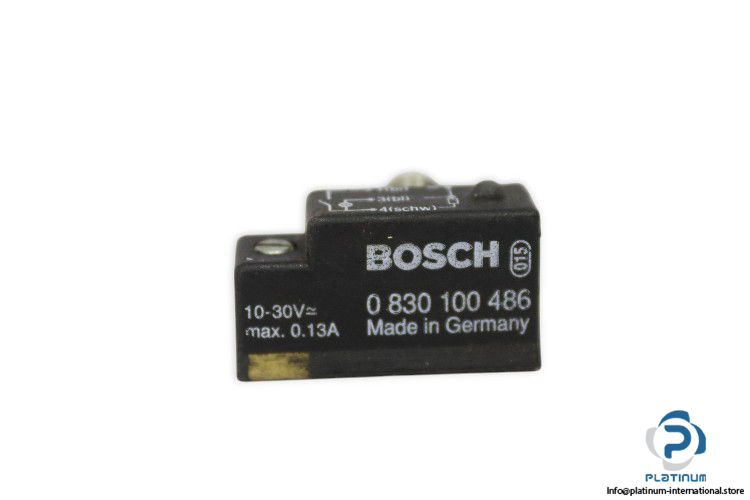

BOSCH 0 830 100 486 Magnetic Sensor
The BOSCH 0 830 100 486 Magnetic Sensor from the ST9 Series is designed for direct mounting on KHZ series actuators. Featuring high durability, excellent shock and vibration resistance, and IP65/IP67 protection, it ensures reliable performance in demanding industrial environments.
Manufacturer: BOSCH
Type: Magnetic Sensor
MRN: 0 830 100 486
| Series | ST9 |
| Direct Mounting | For Series KHZ |
| Slot Width | 9 mm Groove |
| Type of Contact | Reed |
| Nominal Current (Actuated State) | 7 mA |
| Switching Capacity | 3 W / 5 VA |
| Protection Class | IP67, IP65 |
| Ambient Temperature Range | -20 °C to +80 °C |
| DC Switching Current (Max) | 0.13 A |
| AC Switching Current (Max) | 0.2 A |
| Electrical Connection 2 | M8 Plug |
| Number of Poles | 3-pin |
| Operating Voltage DC | 10“30 V DC |
| Operating Voltage AC | 10“30 V AC |
| Short Circuit Resistance | Protected Against Polarity Reversal |
| Shock Resistance | 100 g / 11 ms |
| Vibration Resistance | 60 g (50“2000 Hz) |
| Housing Material | Polyamide |
