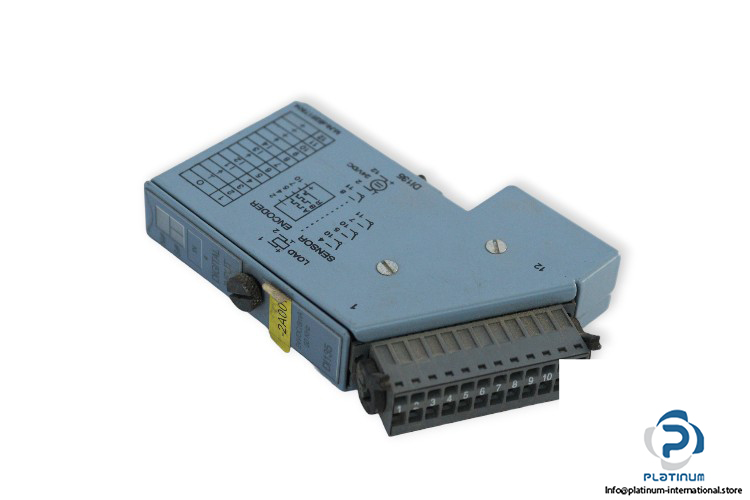

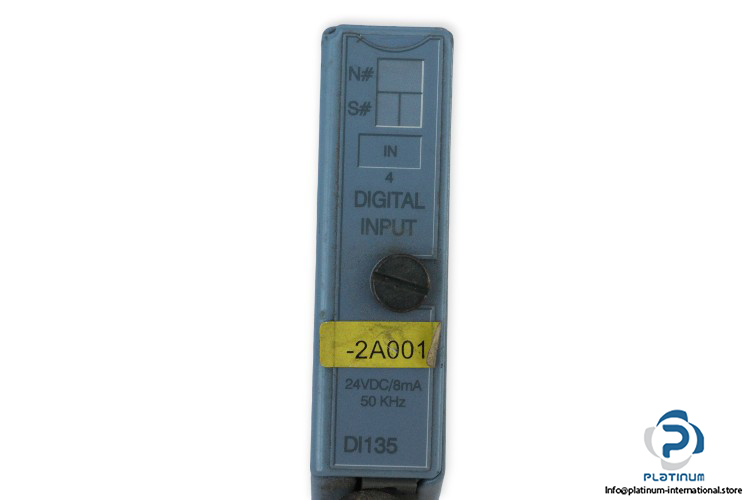

B&R 7DI135.70 DIGITAL INPUT MODULE

B&R AUTOMATION DI135 DIGITAL INPUT MODULE

The B&R DI135 is a compact and versatile digital input module engineered for high-speed and reliable data acquisition in automation systems. With support for incremental encoders and event counters, it ensures efficient signal processing and flexible integration.

Manufacturer: B&R Automation
Type: Digital Input Module
Model: DI135

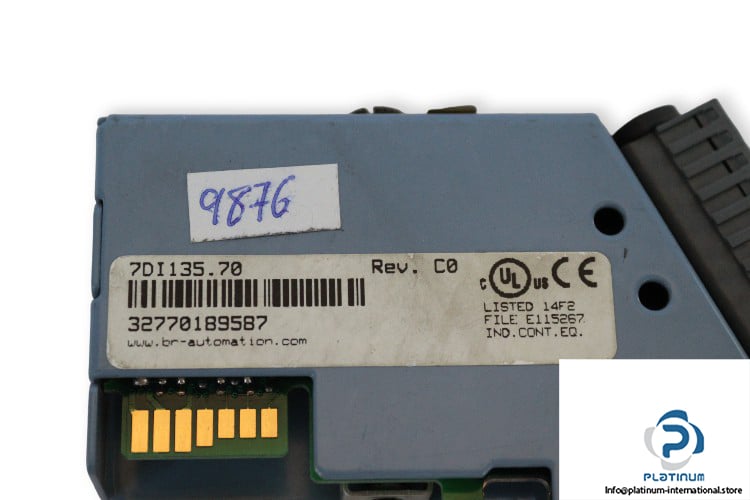

MNR: 7DI135.70
Part No.: 32770189587
Id. No.: B2517804
Revision: C0

Input

• No. of Digital Inputs (DI): 4
• Wiring: Sink
• Input Voltage: 24 V DC (18 / 30 V DC)
• Input Frequency: 50/100 kHz
• Input Current: 8 mA

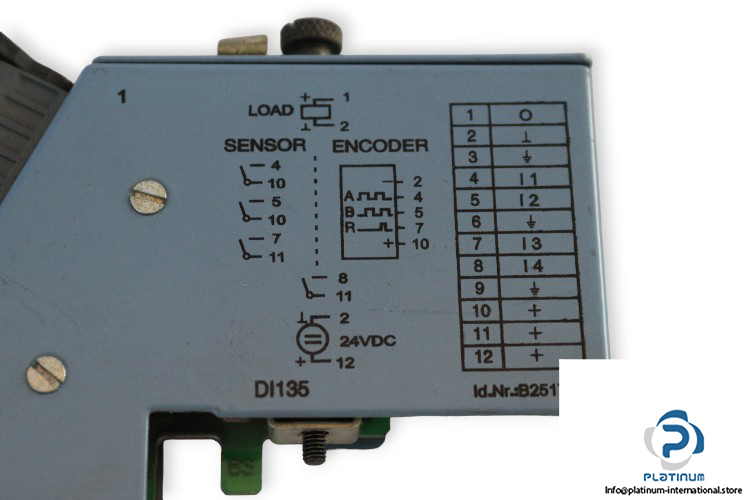

Incremental Encoder

• Signal Form: Square wave pulse
• Evaluation: 4 fold
• Counter Size: 32 Bit

Event Counter

• Signal Form: Square wave pulse
• Counter Size: 2×16 Bit

Output

• No. of Output: 1
• Operating Voltage: 18 / 30 V DC
• Continuous Current: 0.5 A
