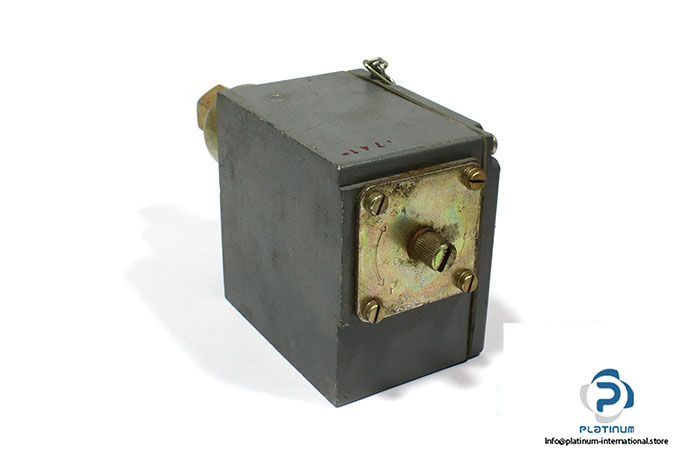

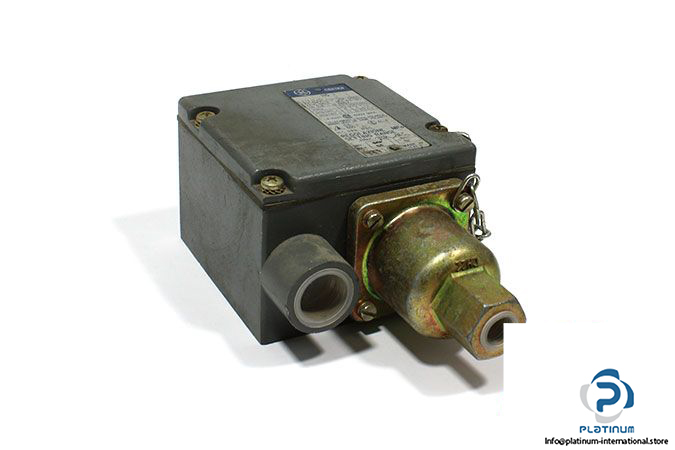

General Electric 115 PC015 Pressure Switch

General Electric 115PC015 Pressure Switch – CEMA Family

The General Electric 115PC015 Pressure Switch offers reliable pressure monitoring for industrial applications. With a measuring range of 0.01 / 0.5 MPa, it is ideal for precision pressure control in demanding environments. This switch belongs to the CEMA family and adheres to rigorous international standards for safety and performance.

🔧 Technical Specifications:

• Manufacturer: General Electric
• Type: Pressure Switch
• Model: 115PC015
• Family: CEMA

📏 Pressure Ranges:

• Measuring Range: 0.01 / 0.5 MPa
• Differential Range: 0.04 / 0.1 MPa

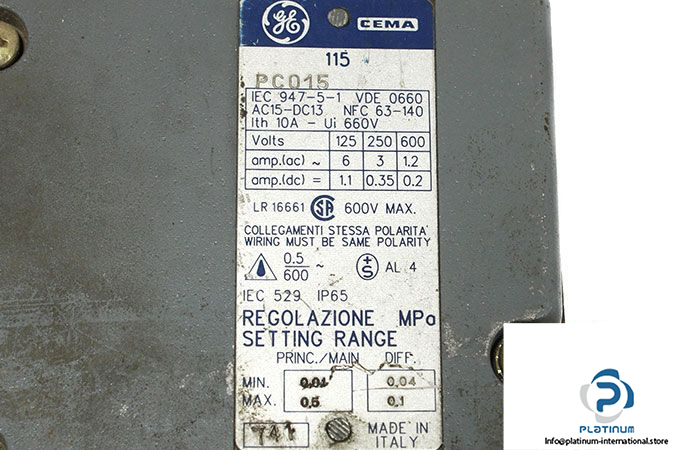

🔌 Electrical Data:

• Connection: G ¼ Threaded
• Thermal Current Ith: 10 A
• Insulation Voltage Ui: 660 V
• Supply Voltage: 125V, 250V, 600 VAC/DC
• Current Capacity:
  • AC: 6A@125 V, 3A@250 V, 1.2A@600 V
  • DC: 1.1A@125 V, 0.35A@250 V, 0.2A@600 V

🌡️ Environmental Specifications:

• Protection Degree: IP65
• Fluid Temperature Range: -25 / 80°C
• Standard Compliance: IEC 947-5-1, VDE 0660

This pressure switch is engineered for long-term durability and high performance, making it an excellent choice for industrial fluid control and monitoring systems. With its IP65 protection and wide temperature range, it performs reliably in harsh environments.
