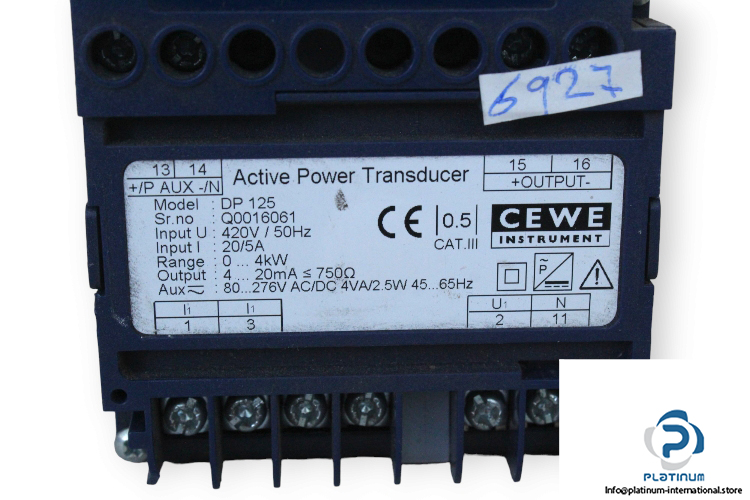

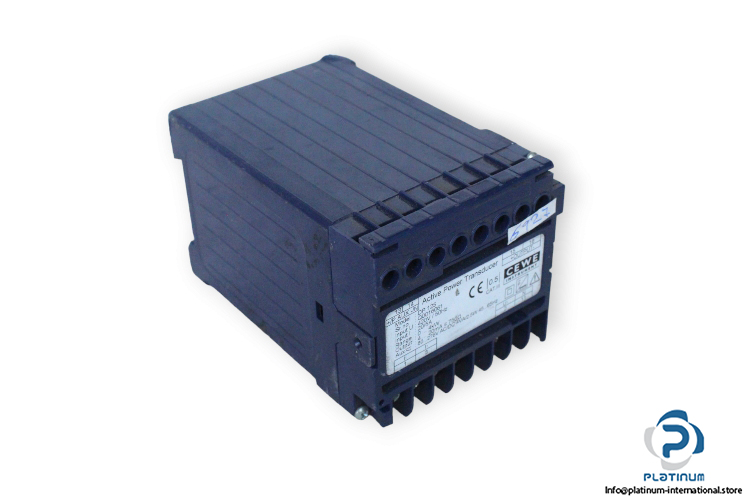

Cewe DP 125 Active Power Transducer

Manufacturer: CEWE
Type: Active Power Transducer
Model: DP125

Input:
Rated Supply Voltage: 1 Phase 420 V AC
Rated Current: 20 / 5 A
Frequency: 50 Hz
Power Consumption Range: 0 … 4 kW

Output:
Current Rating: 4 … 20 mA
Auxiliary Voltage Rating: 80 … 276 V AC/DC
Auxiliary Current Rating: 4 VA
Auxiliary Power Consumption: 2.5 W
Frequency: 45 … 65 Hz

Connection: Cable 2-Wire
Protection Class: IP65
Temperature: 0 … 50 °C
Dimensions: 114 x 77 x 32.5 mm
