Festo 177616 Timer
Kullanılmış
Stokta1 birimSevkiyata hazır
PNEUMATIC TIMER
FESTO PZVT-120-SEC pneumatic timer with mechanical actuator, adjustable delay from 8 to 120 seconds, and M5 thread connection.
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

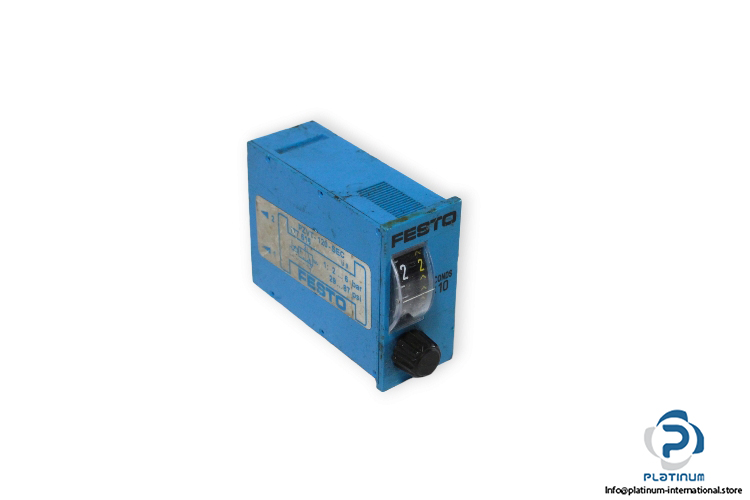

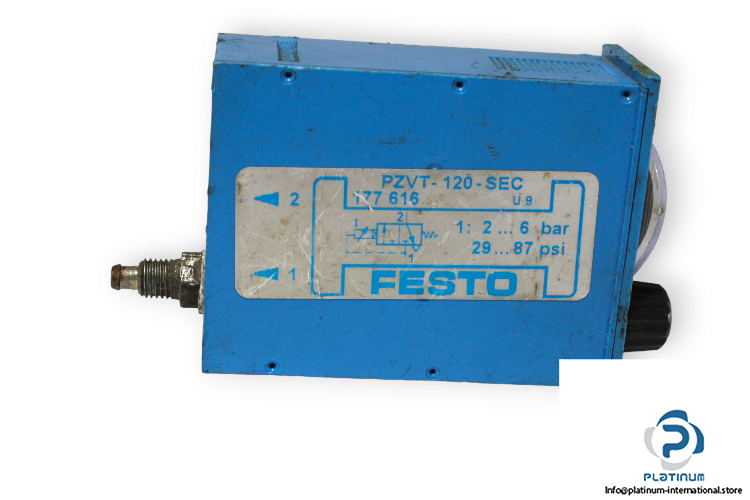

FESTO PZVT-120-SEC TIMER
The FESTO PZVT120SEC is a pneumatic timer designed for precise control in compressed air systems. Featuring a mechanical sequence counter with adjustable delay, it is ideal for automation applications requiring timed air actuation without lubrication.
Manufacturer: FESTO
Type: Timer
Model: PZVT-120-SEC
Part No.: 177616
| Design Structure | Mechanical Sequence Counter with Pneumatic Actuator |
| Operating Medium | Compressed Air, Lubricated Operation Not Possible |
| Adjustable Delay Time | 8 / 120 s |
| Operating Pressure Range | 2 / 6 bar / 29 / 87 PSI |
| Nominal Flow Rate | 50 l/min |
| Switch On Pressure | 1.6 bar |
| Switch Off Pressure | 0.1 bar |
| Pneumatic Connection | Internal Thread M5 |
| Ambient Temperature | -10 / 60 °C |
